Innovision Optics Probe II Manual

Lens system
Hide thumbs Also See for Probe II:

Advertisement

Quick Links

Download this manual See also: Manual
1719 21st Street Santa Monica, CA 90404

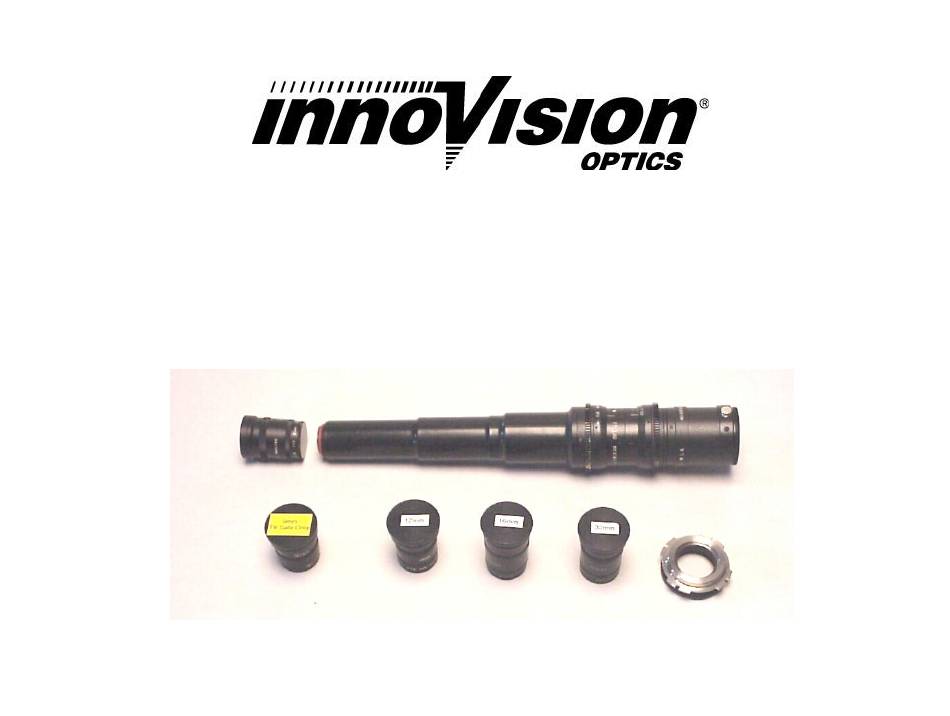

35mm Probe II Lens System
Manual & Depth of Field Charts
For additional technical support
Please Call Innovision Optics at 310-453-4866
www.innovisionoptics.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Probe II and is the answer not in the manual?

Questions and answers

Related Manuals for Innovision Optics Probe II

Summary of Contents for Innovision Optics Probe II

  • Page 1 1719 21st Street Santa Monica, CA 90404 35mm Probe II Lens System Manual & Depth of Field Charts For additional technical support Please Call Innovision Optics at 310-453-4866 www.innovisionoptics.com...
  • Page 2 35 Probe II Dimensions Filter slot Camera Adapter Waterproof Objective Direct View Locking Focus Iris Line Lens Module Ring Ring Ring www.InnovisionOptics.com www.innovisionoptics.com...
  • Page 3 35mm Probe II Objective Lens Coverage Minimum Focus Lens Format @ Full Aperature T-Stop @ Format Corner (from front glass) TV Safe T 32 1/4" 12mm Academy T 22 1/2" 16mm Full T 32 1 1/4" 20mm Academy T 22 2"...
  • Page 4 Tips and Techniques for Close Focus shim Use Remove "O" Ring from Probe II focusing Relay Mount Shim between Objective Lens and Relay Lens is NOT WATERPROOF when Using Shims Infinity Focus will be lost Depth of field will become more narrow as a thicker shim is used Only one shim should be used - Do not combine shims Shims->...
  • Page 5 35mm Probe II LENS: 0.001 Circle of Confusion: Distance(in) T-Stop Near 0.957 1.836 2.646 3.394 4.088 4.733 5.334 5.896 6.422 1.047 2.196 3.463 4.869 6.435 8.192 10.178 12.438 15.036 Near 0.940 1.774 2.519 3.188 3.792 4.341 4.841 5.299 5.720 1.068 2.292...
  • Page 6 35mm Probe II LENS: 0.001 Circle of Confusion: Distance(in) T-Stop Near 0.976 1.904 2.790 3.635 4.443 5.215 5.954 6.663 7.342 1.026 2.106 3.244 4.446 5.717 7.063 8.491 10.009 11.625 Near 0.965 1.866 2.709 3.498 4.240 4.938 5.596 6.217 6.805 1.037 2.154...
  • Page 7 35mm Probe II LENS: 0.001 Circle of Confusion: Distance(in) T-Stop Near 0.986 1.945 2.878 3.786 4.670 5.532 6.371 7.188 7.986 1.014 2.058 3.133 4.239 5.380 6.555 7.767 9.018 10.309 Near 0.980 1.922 2.829 3.701 4.542 5.353 6.134 6.889 7.618 1.021 2.084...
  • Page 8 35mm Probe II LENS: 0.001 Circle of Confusion: Distance(in) T-Stop Near 0.991 1.965 2.921 3.861 4.784 5.692 6.584 7.461 8.323 1.009 2.037 3.084 4.150 5.236 6.344 7.472 8.623 9.796 Near 0.987 1.950 2.888 3.804 4.697 5.569 6.420 7.251 8.064 1.013 2.053...
  • Page 9 35mm Probe II LENS: 0.001 Circle of Confusion: Distance(in) T-Stop Near 0.996 1.986 2.969 3.944 4.913 5.876 6.831 7.780 8.723 1.004 2.014 3.032 4.057 5.090 6.130 7.177 8.232 9.295 Near 0.995 1.980 2.955 3.921 4.877 5.824 6.761 7.690 8.609 1.005 2.020...
  • Page 10 35mm Probe II LENS: 0.001 Circle of Confusion: Distance(in) T-Stop Near 0.998 1.991 2.980 3.964 4.944 5.920 6.891 7.858 8.821 1.002 2.009 3.020 4.036 5.057 6.082 7.112 8.147 9.187 Near 0.997 1.987 2.971 3.949 4.921 5.886 6.845 7.799 8.746 1.003 2.013...

  • Page 11: Installation Steps

    There is no light loss when using the Prism Attachment; therefore no Stop compensation is required. The Probe II is Not W aterproof when used with the Prism Attachment 35mm Probe II The Prism Attachment will cover the follow ing focal lengths when used on the Probe II: 16, 20, 32 & 40 The Prism Attachment will not cover the 9mm &...
