Dual Electronics Corporation XGPS150 Update Manual

Firmware v4.2.0 for pc
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

The firmware v4.2.0 is compatible with all XGPS150 models.
If you have any questions about XGPS150, please contact us at cs@dualav.com.
A. To update the firmware to v4.2.0 by using PC, you will need:
 XGPS150
 USB a – USB b cable (USB-to-mini-USB cable)
 Computer or laptop running Windows OS (XP or beyond) with an available USB port
B. Update Instructions
1. Go to Dual's XGPS150 firmware page:
2. Under "Downloads", click on "File v4.2.0" and "Manual v4.2.0" to download both XGPS150
Firmware Update File and Manual.
3. Unzip the downloaded firmware. Please follow the four sub-steps provided below.
Click the right button on your mouse/trackpad and choose "Extract to xgps150fw-
②
v4.2.0/".

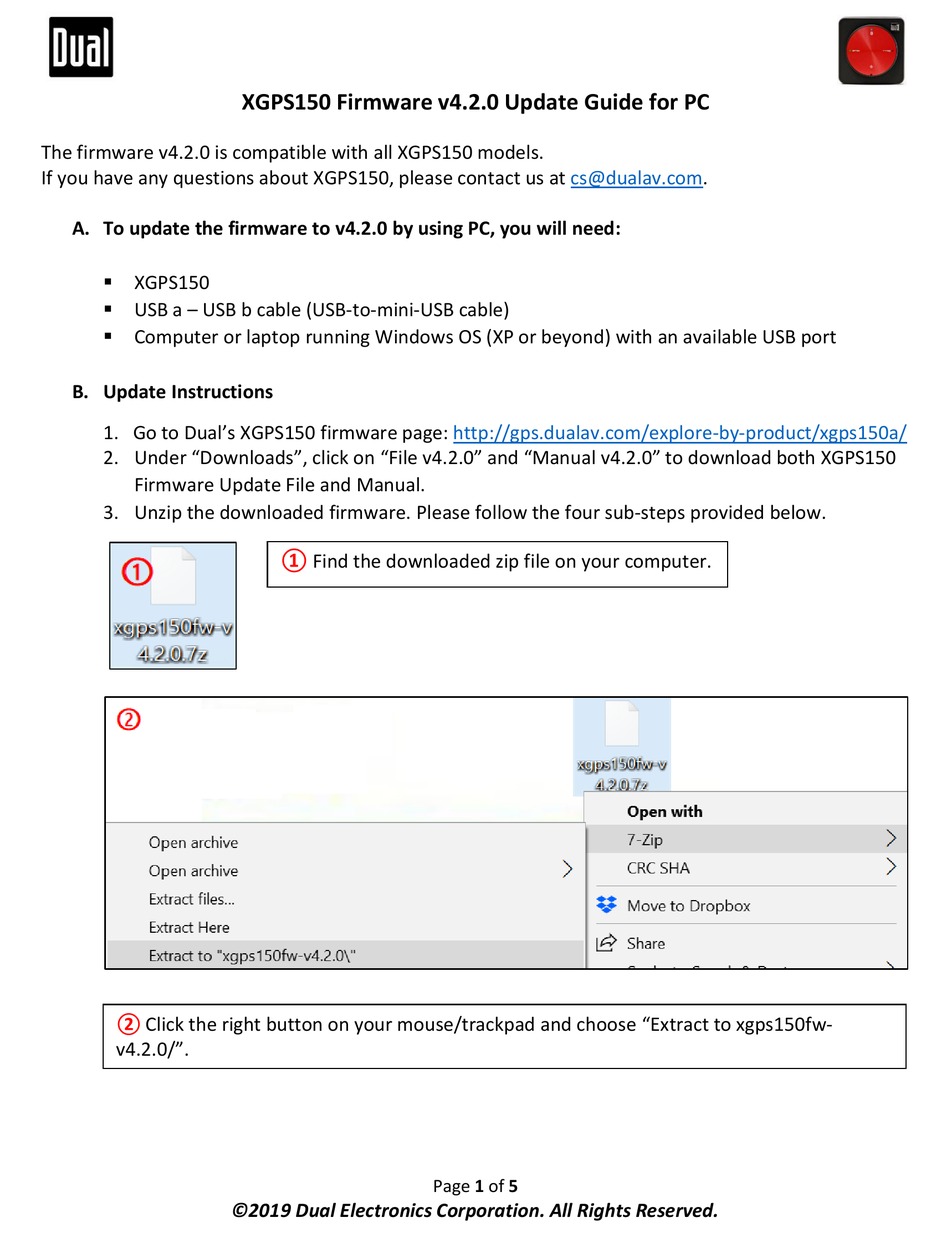

XGPS150 Firmware v4.2.0 Update Guide for PC
①
Find the downloaded zip file on your computer.
©2019 Dual Electronics Corporation. All Rights Reserved.
http://gps.dualav.com/explore-by-product/xgps150a/
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XGPS150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dual Electronics Corporation XGPS150

Summary of Contents for Dual Electronics Corporation XGPS150

  • Page 1 B. Update Instructions 1. Go to Dual’s XGPS150 firmware page: http://gps.dualav.com/explore-by-product/xgps150a/ 2. Under “Downloads”, click on “File v4.2.0” and “Manual v4.2.0” to download both XGPS150 Firmware Update File and Manual. 3. Unzip the downloaded firmware. Please follow the four sub-steps provided below.
  • Page 2 4. Double click on PL2303_Prolific_DriveInstaller_v1417 (XGPS150 driver) from the folder and begin the installation process. Once the process is completed, restart your computer if prompted. 5. Open the XGPS150 Firmware Updater program for v4.2.0 in the XGPS150 Firmware Update Pack folder. Page 2 of 5...
  • Page 3 6. Remember to move the XGPS150’s switch towards the USB port. And, connect your XGPS150 to your computer. Page 3 of 5 ©2019 Dual Electronics Corporation. All Rights Reserved.
  • Page 4 7. To update the firmware, XGPS150 must be connected to your computer while the power is turned off. Press and hold the power button until the Bluetooth LED (Blue) and GPS LED (Green) are turned off. 8. Follow the instructions listed on the XGPS150 Firmware Updater program.
  • Page 5 11. Once the update process is completed, you should be able to see the “XGPS150 Firmware Update Done” message at the bottom of the XGPS150 Firmware Updater program. Then, close the program by pressing “Close” and unplug your XGPS150A. Note: 1) Do not disconnect your XGPS150 during the update process.
