How to Connect the XGPS150 with
Microsoft Surface Tablets (RT & Pro)
This documents contains instructions on how to connect the Dual GPS products (model
XGPS150 and XGPS170) with the first generation Microsoft Surface RT and Surface Pro tablets.
(These instructions also apply to Windows 8 users.)
It is not neccessary to download any special Windows drivers before installing one of the Dual
GPS products.
There are two main steps to installation: pairing and assigning a COM port. The whole process
will take 5-10 minutes.
Pairing
First, make sure the mode switch on the GPS device is in the "Other" position, and the GPS is
turned on. The blue Bluetooth light should be flashing on the GPS.

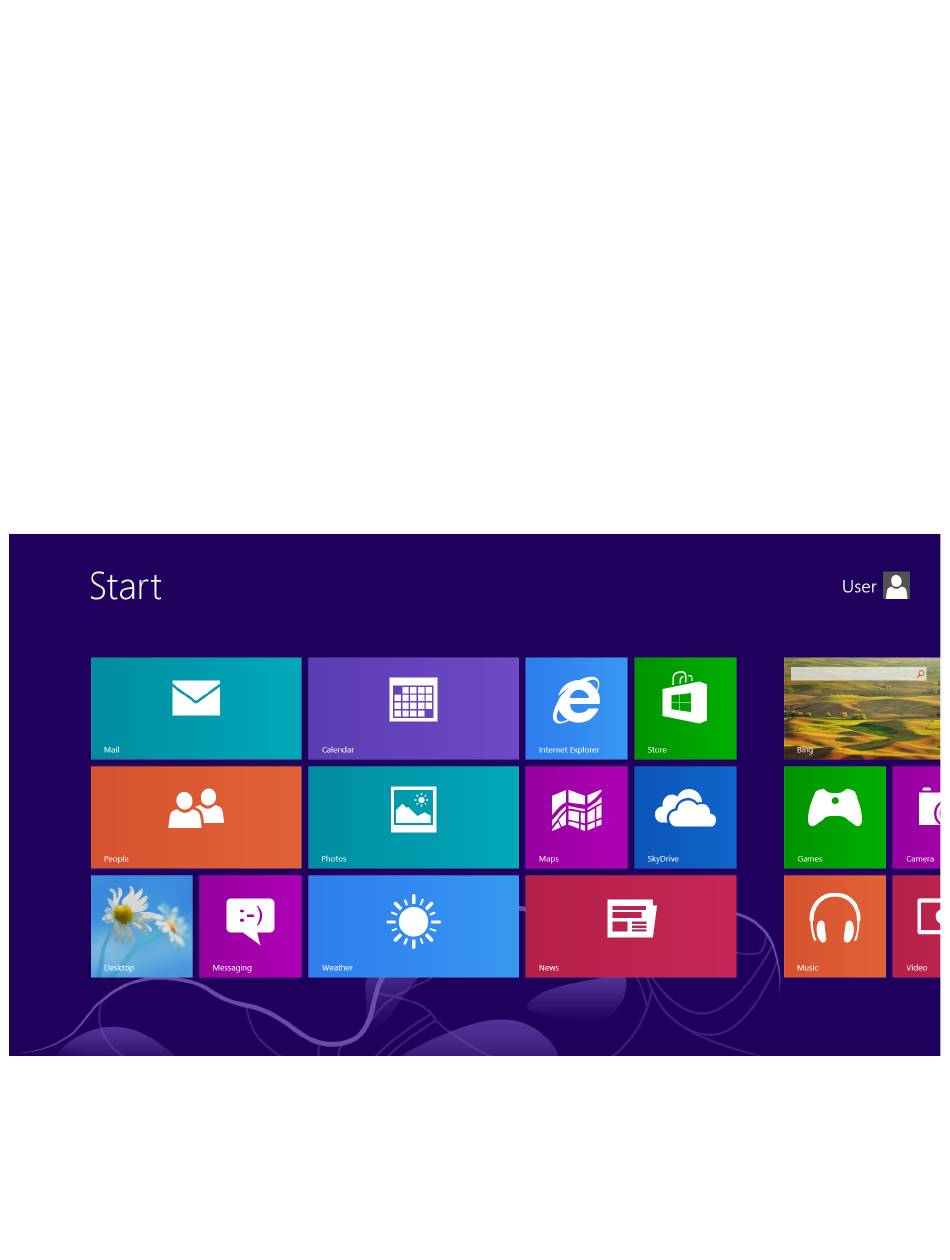

Now, on the tablet, begin at the home screen:
Surface Tablet Instructions - Rev 1.0
Dual Electronics Corp.
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dual Electronics Corporation XGPS150
Summary of Contents for Dual Electronics Corporation XGPS150
- Page 1 Microsoft Surface Tablets (RT & Pro) This documents contains instructions on how to connect the Dual GPS products (model XGPS150 and XGPS170) with the first generation Microsoft Surface RT and Surface Pro tablets. (These instructions also apply to Windows 8 users.) It is not neccessary to download any special Windows drivers before installing one of the Dual GPS products.
- Page 2 Step 1: Open the Charms bar and select “Settings”. Step 2: Select “Change PC settings” at the bottom of the menu. Surface Tablet Instructions - Rev 1.0 Dual Electronics Corp. Page 2...
- Page 3 Step 3: Select “Devices” in the list of items in the left menu. Then tap “Add a device” on the right. Step 4: The tablet will a open window showing the available Bluetooth devices. Within 15 to 20 seconds, the GPS will appear in the list of device as “Other”. Tap “Other”. Surface Tablet Instructions - Rev 1.0 Dual Electronics Corp.
- Page 4 Step 5: After tapping the device name, the tablet will show a progress bar as it install the GPS. When installation is complete, the tablet will show the GPS in the list of available devices. It will be listed by the device model number followed by a six digit serial number, e.g. XGPS150- 2AF364.
- Page 5 Assigning a COM port Assigning a COM port creates a communication “pipe” between the GPS and the tablet. It allows applications on the tablet to connect to the GPS. Go back to the home screen on the tablet, and select “Desktop” from the icons: On the bottom right corner, click the triangle icon (next to the keyboard icon).
- Page 6 On the Bluetooth Settings menu, select the tab labelled COM Ports. Then select Add to open the Add COM Port menu. Check the radio box for Outgoing. Then select the GPS from the pull- down menu. This will cause SPP Dev to appear in Services box. Make sure SPP Dev is highlighted and click the OK button.
- Page 7 As soon as an app starts to use the GPS, the blue light will stop flashing. PLEASE NOTE: as a power saving measure, the XGPS150 device will turn itself off after ten minutes of not being connected to an app. In the future, if you discover that you suddenly aren’t receiving GPS information, make sure the XGPS150 is still turned on.
