Dolby DP591 Audio Encoder

Quick Start Guide

1 Overview
The DP591 introduces the immersive audio to existing live production creation, contribution, and
distribution infrastructures.
The Dolby DP591 delivers live audio that includes Dolby Atmos audio content, and also supports 5.1
and stereo audio formats.
The DP591 enables the audio engineer to:
Encode PCM audio and metadata to the Dolby ED2 contribution format, Dolby Digital Plus, or
Dolby Digital Plus with Dolby Atmos content
Transcode Dolby E to Dolby Digital Plus and Dolby ED2 to Dolby Digital Plus with Dolby Atmos
content
Decode Dolby ED2 content to its original PCM channels
This documentation describes how to prepare the DP591 unit for its first usage.
See
Dolby DP591 Audio Encoder User's Guide for detailed instructions. The guide is available on the
DP591 UI under the Help > User Manual section.
2 DP591 front panel

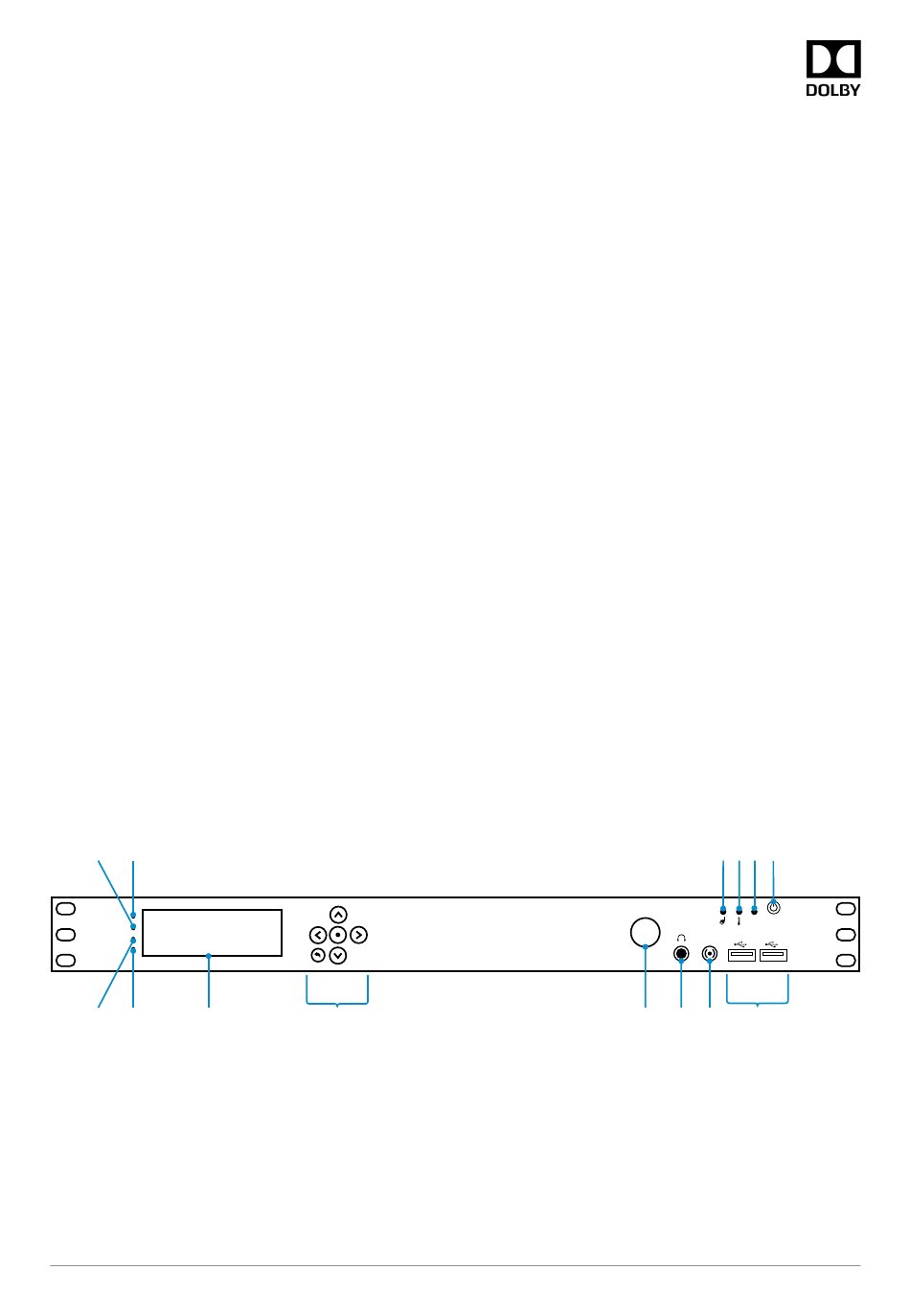

The front panel provides device control and status information.
2
1
INPUT
AUDIO
SYNC
ERROR
3
4
5
Dolby DP591 Audio Encoder Quick Start Guide
20 August 2018
6
20 August 2018
14 13
12
11
RESET
DIM
7
8
9
10
1
