Introduction
Thanks for purchasing the Link Eurorack module from Evaton
Technologies! Link is a module that is useful for bridging two Eurorack
cases together, or for making a large number of interconnects between
two different areas in a single large Eurorack synthesizer. Link is a
passive interconnection module that passes up to 18 control voltage,
audio, or gate signals to another connected Link module, over a
standard HDMI connection cable. Because Link is completely passive,
signals are bidirectional; signals can pass in either direction.
Specifications
• Width: 4 HP
• Height: 3U
• Depth: 20mm
• Power: None required!
• Format: Euro modular
• I/O: 4 stereo/mono 3.5mm jacks, 10 mono jacks
• Construction: Made in USA of RoHS-compliant components
• Supplied cable: 4' (1.25m) HDMI cable
Installation / Usage
Install a pair of Link modules using the supplied M3 screws, either one Link
module in one case, and another Link module in a second case, or two Link
modules in the same case (This is useful if you have a very large Eurorack case
and need to run a lot of signals from one area in the case to another.)

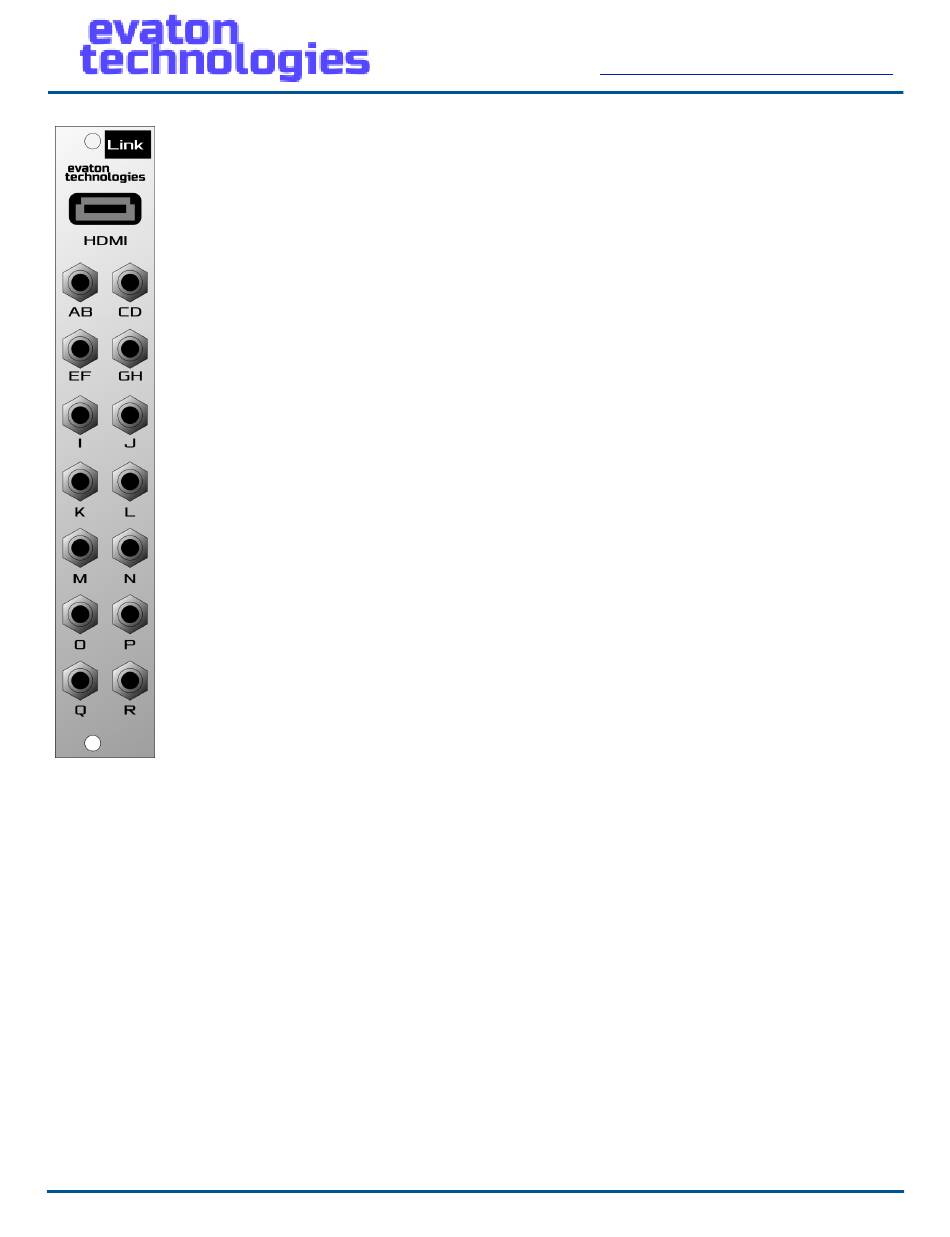

Connect the supplied HDMI cable to each of the Link modules, at the jack
marked "HDMI" on the front panel. While most off-the shelf HDMI cables should
work just fine, be aware that not all HDMI cables are constructed equally. If you
have issues when using a cable that is not the one supplied with the Link
module, try a different brand of cable. Lengths up to 10 feet should be no
problem, and you may have success with longer cables. The standard laws of
physics apply.
Link
User Manual
Pittsburgh, PA 15220-2718
http://www.evatontechnologies.com/
200 School St
