Summary of Contents for dymax 210

  • Page 2 Dymax is willing to assist users in their performance testing and evaluation. Data sheets are available for valve controllers or pressure pots upon request.
  • Page 3: Table Of Contents

    Dymax Model 110 & 210 Spray Valves User Guide Contents Introduction ......................4 Introduction to the User Guide .................4 Where to Get Help ....................4 Safety ........................5 General Safety Considerations ................5 Specific Safety Considerations ................5 Product Overview....................6 Description of the Dymax Spray Valves.............6 Component Overview ..................6...
  • Page 4: Introduction

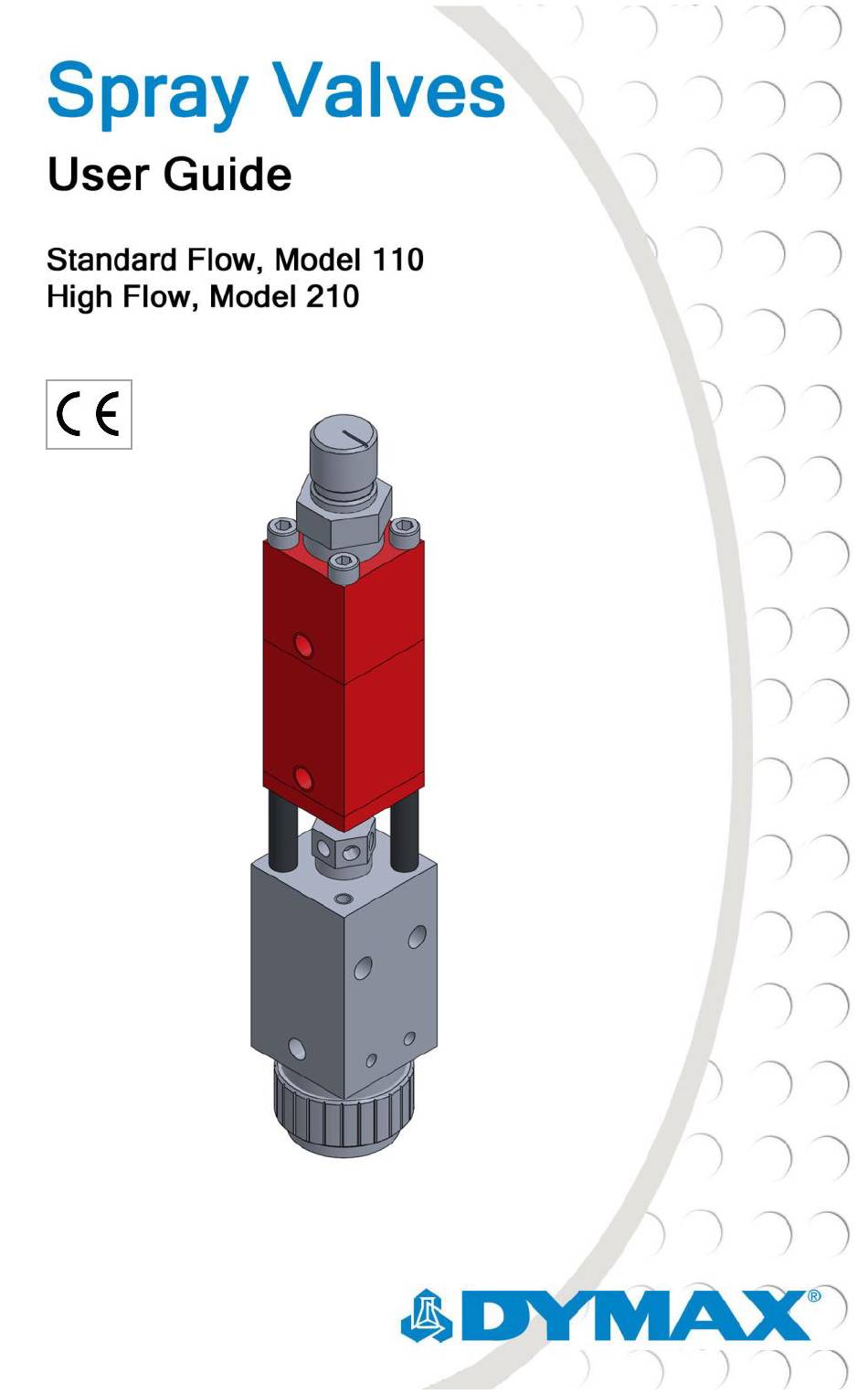

    This guide describes how to use the Dymax Model 110 standard-flow spray valve (PN T16396) or the Model 210 high-flow spray valve (PN T17287). Sections in this guide describe how to assemble, use, and maintain these spray valves safely and efficiently.
  • Page 5: Safety

    To learn about the safe handling and use of dispensing fluids, obtain and read the MSDS for each fluid before using the fluid. Dymax includes an MSDS with each adhesive sold. MSDS for Dymax products can also be requested through the Dymax website.
  • Page 6: Product Overview

    The Model 110 is a standard-flow spray valve and should be used with materials that have a viscosity less than 10,000 cP. The Model 210 is a high-flow spray valve and should be used with materials that have a viscosity greater than 10,000 cP.
  • Page 7 Dymax Model 110 & 210 Spray Valves User Guide Figure 1. Model 110 & 210 Component Diagram MOUNTING HOLES Item Description Item Description Air Cap, Round (Flat Available) Upper Air Body Seat Lock Nut Needle Stroke Adjuster Fluid Section Machine Screw...
  • Page 8: Special Features And Benefits Of The Dymax Spray Valve

    Open each box and check for equipment damage. If parts are damaged, notify the shipper and submit a claim for the damaged parts. Contact Dymax so that new parts can be shipped to you immediately. Check that the parts included in your order match those listed below. If parts are missing, contact your local Dymax representative or Dymax Customer Support to resolve the problem.
  • Page 9: System Interconnect

    Dymax Model 110 & 210 Spray Valves User Guide System Interconnect The valve is a normally-closed spray valve. It requires a 2-position, 4-way air solenoid valve to actuate the air section. The valve should be operated with clean, dry air between 60-100 psi.
  • Page 10 Dymax Model 110 & 210 Spray Valves User Guide Figure 2. Single Solenoid Setup Configuration Figure 3. Dual Solenoid Setup Configuration...
  • Page 11: Operating The Dispensing Valve

    Dymax Model 110 & 210 Spray Valves User Guide Operating the Dispensing Valve Setup and Operation Refer to Figure 1 for part reference designation. Plumb the valve as outlined in the set-up procedures. Regulate the air pressure operating the valve between 60-100 psi.
  • Page 12: Maintenance And Cleaning

    Dymax Model 110 & 210 Spray Valves User Guide Maintenance and Cleaning General Valve Maintenance Lubricate the Packing (E) on the valve every 200 hours by placing a few drops of mineral oil or other light oil inside the Packing Nut (F).
  • Page 13 Dymax Model 110 & 210 Spray Valves User Guide 10. Using a seat wrench, unthread and remove the Seat (B) and the 007 Kalrez® O-Ring (V). NOTE: The teeth of the seat wrench are tapered so the wrench will only fit on one side.
  • Page 14: Assembly Instructions

    Dymax Model 110 & 210 Spray Valves User Guide Assembly Instructions Refer to Figure 1 for part reference designation. General ■ All O-Rings must be lubricated with a small amount of silicone grease. ■ A small amount of removable thread locker should be applied to the Set Screw (U) and the male threads of the Standoffs (G).
  • Page 15 Dymax Model 110 & 210 Spray Valves User Guide NOTE: Be sure the air holes are lined up on the same face and will align with the air hole on the Fluid Section (D). Fluid Section Screw the Standoffs (G) into the Fluid Section (D) using soft tip pliers to tighten.
  • Page 16: Troubleshooting

    Dymax Model 110 & 210 Spray Valves User Guide Troubleshooting Table 1. Troubleshooting Chart for the Dymax Spray Valve Problem Possible Cause Corrective Action Air pressure to air section too Increase air pressure to 60-100 psi Loosen Packing Nut (F) until valve...
  • Page 17: Spare Parts And Accessories

    Dymax Model 110 & 210 Spray Valves User Guide Table 1 Continued Problem Possible Cause Corrective Action Cured material at tip of Remove air cap and clean tip Needle (C) and Seat (B) Cured material in Air Cap (A) Remove air cap and clean...
  • Page 18: Specifications

    Dymax Model 110 & 210 Spray Valves User Guide Specifications Specifications Property Specification Part Numbers T16396 Model 110 standard-flow spray valve with round cap T17287 Model 210 high-flow spray valve with round cap Valve Type Normally closed, needle spray valve Body - Aluminum &...
  • Page 19: Warranty

    Dymax Model 110 & 210 Spray Valves User Guide Warranty From date of purchase, Dymax Corporation offers a one-year warranty against defects in material and workmanship on all system components with proof of purchase and purchase date. Unauthorized repair, modification, or improper use of equipment may void your warranty benefits.
  • Page 20 © 2012 Dymax Corporation. All rights reserved. All trademarks in this guide, except where noted, are the property of, or used under license by Dymax Corporation, U.S.A. Teflon is a registered trademark of DuPont. Please note that most dispensing system applications are unique. Dymax does not warrant the fitness of the product for the intended application. Any warranty applicable to the product, its application and use is strictly limited to that contained in Dymax standard Conditions of Sale published on our website.

This manual is also suitable for:

110T16396T17287T15696T17288
