SCOUT200 Series Quick Start Guide

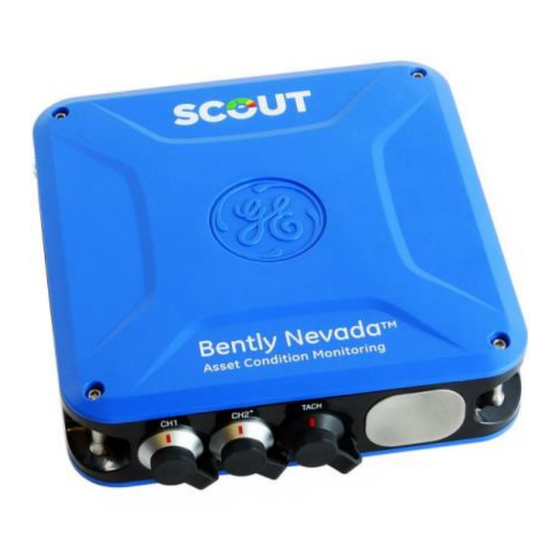

SCOUT220-IS & SCOUT240-IS are intrinsically safe portable data collectors designed for hazardous
environments. The data collectors are ATEX Zone 1 and CSA Class 1 Zone 1 compliant.
COMMTEST220 & COMMTEST240 are portable data collectors that cater to non-hazardous environments.
The industrial handheld is an intrinsically safe interface device.
S1 Collector app runs on the industrial handheld.
SCOUT200 Series Quick Start Guide
Important Safety Information
Scout200 Series uses an accelerometer with a
powerful magnet base. Do not use your data collector
before reading the product safety advisory in the
Installation & Operation Manual.
Bently Nevada* Asset Condition Monitoring
OVERVIEW
Part Number: 109M1270-01
Rev. C
1

Advertisement

Table of Contents

   Related Manuals for GE Bently Nevada SCOUT200 Series

No related manuals

   Summary of Contents for GE Bently Nevada SCOUT200 Series

  • Page 1 Bently Nevada* Asset Condition Monitoring SCOUT200 Series Quick Start Guide OVERVIEW  SCOUT220-IS & SCOUT240-IS are intrinsically safe portable data collectors designed for hazardous environments. The data collectors are ATEX Zone 1 and CSA Class 1 Zone 1 compliant.  COMMTEST220 &...
  • Page 2 Fundamentals Charge Device Plug the supplied charger into the data collector’s DC port to charge the device before or during the initial use. It takes approximately three hours to fully charge the device. Attach Strap or Belt Clip To use the shoulder strap, clip the strap to the safety breakaway rings already installed on strap rails.
  • Page 3 Connect a tachometer or Keyphasor* to Tach Connector. S1 Collector App Fundamentals Download and Install S1 Collector App Open S1 Collector App 1. Go to GE BN Technical Support Portal at 1. Turn on your industrial handheld. www.bntechsupport.com. 2. Select Applications 2.
  • Page 4 S1 Collector App – Main Buttons Back / Home — Return to the previous screen. Tap and hold to display a list of recently accessed screens including the app’s main menu. ROUTES — Record vibration for a predetermined list of machine locations.
  • Page 5 Record Route 1. Select ROUTES to access Routes window. Routes window displays the list of available routes with the following information for each route: Total number of points in the selected route Number of points with completed recordings Percentage of points with completed recordings 2.
  • Page 6 Off-Route Recording 1. Select MEASURE from the app’s main menu. The app displays the Measure window with the following options: Spectrum / Waveform  Take an off-route spectrum or waveform recording or both.  Demodulation Take an off-route demodulation recording. ...
