Igloo: PICAXE wearable module Starter Guide
www.kitronik.co.uk
Electro-Fashion: Igloo, PICAXE wearable module Starter Guide
Introduction
The Igloo: PICAXE wearable module has been designed specifically for use in E-textiles projects and provides a cost
effective, fun way to learn about electronics and programming in a textiles environment.
The board uses a PICAXE14M2 microcontroller. This is a chip that can be programmed using the free PICAXE
Programming Editor software to respond to various inputs like switches and sensors and control outputs like LEDs or
buzzers.
This guide will provide all the information you need to get started with the Igloo PICAXE wearable module.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Igloo and is the answer not in the manual?

Questions and answers

Related Manuals for Kitronik Igloo

Summary of Contents for Kitronik Igloo

  • Page 1 Electro-Fashion: Igloo, PICAXE wearable module Starter Guide Introduction The Igloo: PICAXE wearable module has been designed specifically for use in E-textiles projects and provides a cost effective, fun way to learn about electronics and programming in a textiles environment. The board uses a PICAXE14M2 microcontroller. This is a chip that can be programmed using the free PICAXE Programming Editor software to respond to various inputs like switches and sensors and control outputs like LEDs or buzzers.

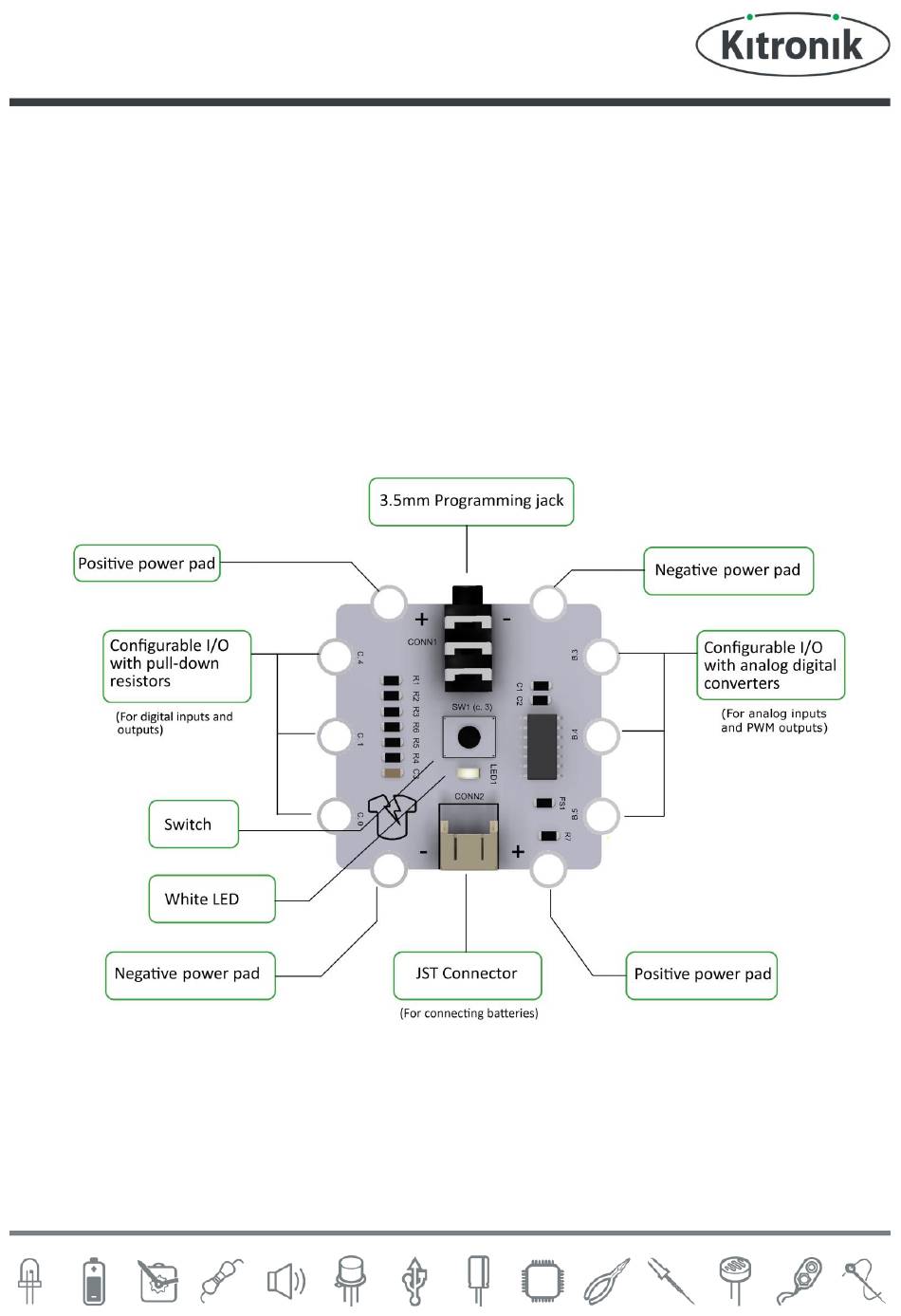

  • Page 2 Hardware The Igloo PICAXE wearable module has 6 I/O pins. The three on the left (C.4, C.1 and C.0) have pull-down resistors on the board. This means you can attach a switch between the “+” pad at the top or bottom of the board and any of those inputs and have a switch which goes high when closed and low when opened.

  • Page 3: Electrical Information

    Igloo: PICAXE wearable module Starter Guide www.kitronik.co.uk Connections Name Description Additional Features I/O pin with 10K pull-down resistor ADC, Touch, PWM, hPWM I/O pin with 10K pull-down resistor hPWM On-board switch with built in pull- down I/O pin with 10K pull-down resistor...
  • Page 4 Power There are several ways you can power your Igloo PICAXE wearable module: 1) The simplest way is with a 2xAAA alkaline batteries in a battery cage with JST connector. Zinc carbon or rechargeable NiMH batteries will not work well as they drop in voltage very quickly, meaning any LEDs attached will start to dim.
  • Page 5 Igloo: PICAXE wearable module Starter Guide www.kitronik.co.uk Important: To program the board you will need a USB PICAXE Programming Cable (available here). You will also need the correct software. Download the latest version of the PICAXE Programming Editor, our quick start page has a link.
  • Page 6 Check the programming cable is fully inserted into the Igloo PICAXE wearable module and that the board has a power supply attached then click the “Program” icon near the top of the screen. A green progress bar will appear at the bottom right of the screen and it will inform you when the code has successfully been uploaded.

  • Page 7: Connecting Components

    Igloo: PICAXE wearable module Starter Guide www.kitronik.co.uk Connecting Components There are two ways to connect the PICAXE Control Board to your other e-textiles components. Using Crocodile Clips The fastest way to do this is by using crocodile leads. It is a good idea to test your circuit this way before sewing it into a project as it is much easier to make changes if your circuit is incorrect.

  • Page 8: Hook-Up Guide

    LED on and off. The LED will come on while the button is held down and turn off when the button is released. Blink – External Digital Output This example demonstrates how to use an Igloo PICAXE wearable module to make a sewable E-textiles LED flash on and off.
  • Page 9 Igloo: PICAXE wearable module Starter Guide www.kitronik.co.uk Switch (latching) – External digital input and output This example demonstrates how to use a sewable push button switch as a latching switch to turn a sewable LED and off. Light Sensor – External Analog Input and digital output...
  • Page 10 Igloo: PICAXE wearable module Starter Guide www.kitronik.co.uk Fading LED – Pulse Width Modulation By rapidly turning the LED on and off we can control the brightness. By altering the amount of time the LED spends on (the duty) we can fade the LED.
