bauhaus MEB8060A Manual

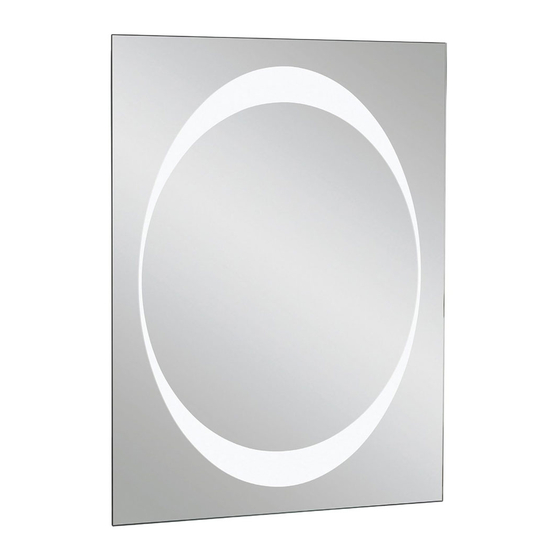

ILLUMINATED MIRRORS - LED with Bluetooth wireless technology stereo speakers
IMPORTANT ADVICE & SAFETY - please read before installation
Please read these instructions carefully before starting installation and keep in a safe place for future reference.
Check the contents of the pack carefully before installation. Responsibilty will not be held for any de-fit / re-fit costs where faulty product has
been fitted. If any fault is found with materials or workmanship, it must be reported immediately to the manufacturer. Remedial action will be
taken, based on information received, on condition that: 1. Full details are supplied to the manufacturer; 2. The product has not been
modified or tampered with; 3. The manufacturer is informed of any damage/shortages prior to installation. 4. The product has not been
installed, or attempts have been made to install. We do not accept responsibility for any problems that may occur through
incorrect installation. ENSURE the room is well heated and ventilated.
Before drilling ensure there are no hidden cables or pipes(water, gas or electrical) behind hanging points. Always wear
suitable eye protection when drilling.Ensure the wall surface is able to take the weight of the complete product.
It is important to install light fittings in the correct bathroom zone i.e. the zone referred to in the IP rating of the element. This is not an
installation guide and reference should be made to the latest edition of the IET Wiring Regulations or a qualified electrician member of
NICEIC or IET.

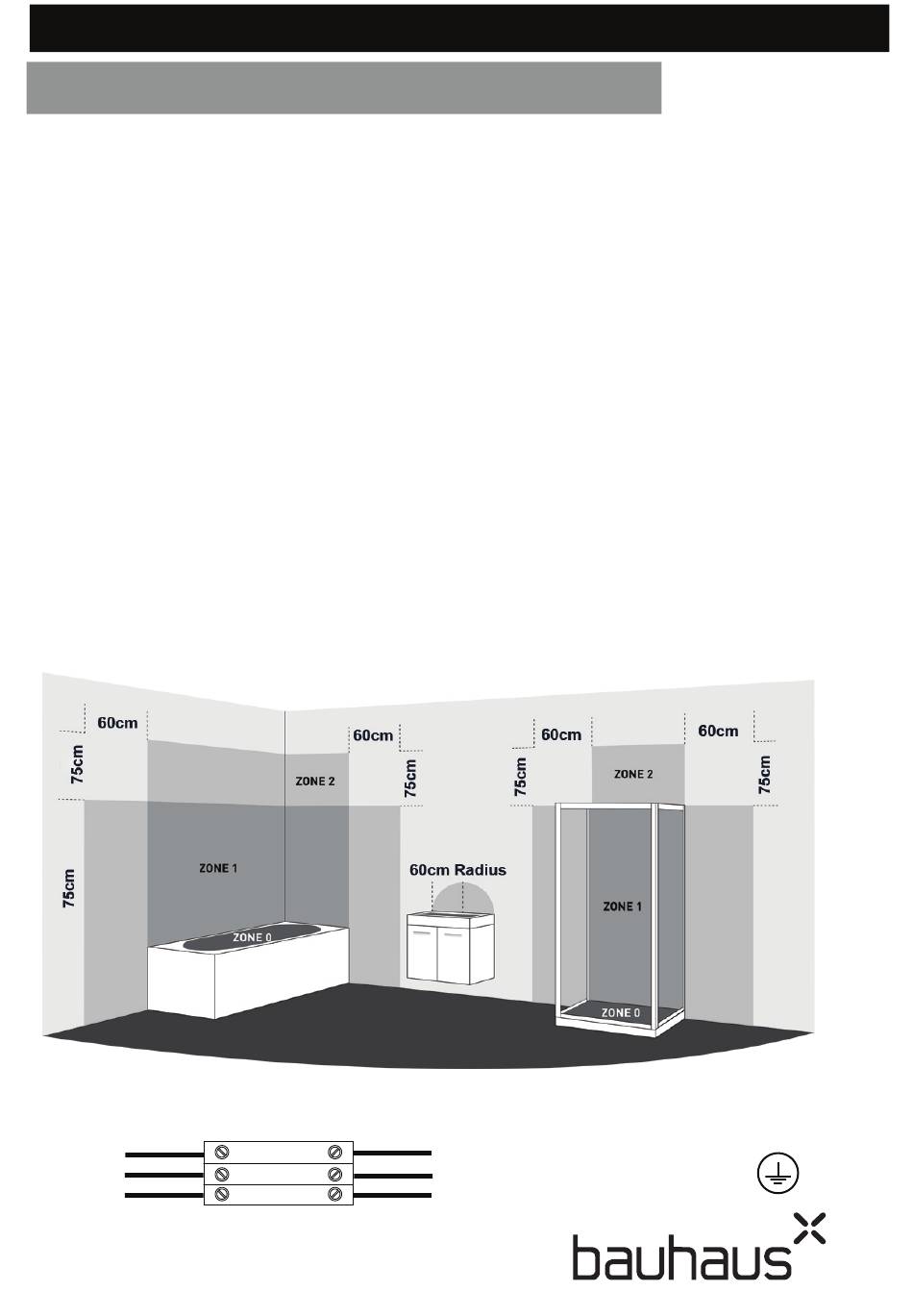

ZONE 0 is inside the bath or shower tray itself. Any appliance used in this zone must be rated at least IP67 which is total immersion proof.
ZONE 1 is the area above the bath or shower tray to a height of 2.25m from the floor. In this zone a minimum rating of IPX4 Splash-proof
is required and elements must also be protected by a 30mA residual current device (RCD) to protect the circuit.
The electrical connection to the power supply for these appliances must be in Zones 2/3 of the bathroom in compliance with
BS 7671:2008(2011) - IET Wiring Regulations.
ZONE 2 is an area stretching 0.6m outside the perimeter of the bath and to a height of 2.25m from the floor. In this zone an IP rating of at
least IP44 is required. In addition it is good practice to consider the area around a washbasin, within a 60cm radius of any tap to be
considered as zone 2.
Appliance must also be protected by a 30mA residual current device (RCD) to protect the circuit.
Failure to have electrical products installed and certificated by a qualified electrical engineer will invalidate any product guarantee.
For full details reference should be made to the latest copy of the IET wiring regulations and all applicable British Standard and European
norm specifications.
This product is IP44 rated and is suitable for installation within zone 2 above, and complies with the following safety standards:
BS EN 60598-1: 2008+A11: 2009, EN60598-2-1: 1989

WIRING DIAGRAM

Live - brown
Earth -Green&yellow
Neutral - blue
LIVE
EARTH
NEUTRAL
®
Live supply-Red or brown
This product is Class I rated
and MUST be earthed.
Earth supply-Green/yellow
Supply 240v/50hZ maximum
Neutral supply-Black or blue
