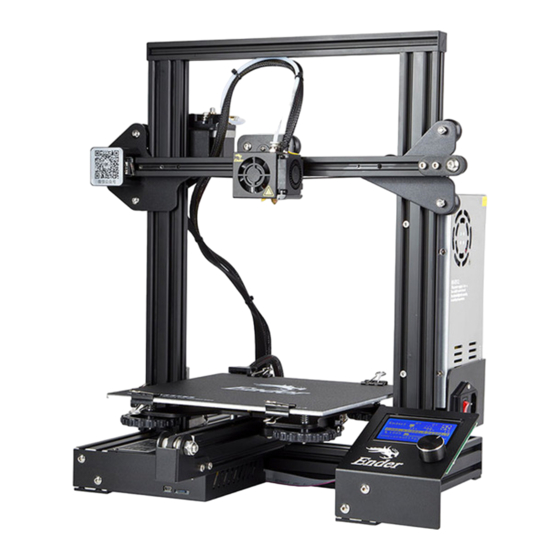

Creality3D Ender-3 Instructions For Assembly

Hide thumbs Also See for Ender-3:

Download this manual

Ender-3 3D Printer

Instructions for assembly

◆ This guide is for the Ender-3 3D printer.

◆ Select the correct input voltage to match your local mains

(230V or 115V).

◆ Because of software/hardware upgrades and model

differences, new revisions may not be listed in this guide.

◆ Please plug the Power cord into a three-hole power jack.

◆ Detailed instructions for use are available on the SD card.

V3.0

Need help?

Do you have a question about the Ender-3 and is the answer not in the manual?

Page 1 Ender-3 3D Printer Instructions for assembly ◆ This guide is for the Ender-3 3D printer. ◆ Select the correct input voltage to match your local mains (230V or 115V). ◆ Because of software/hardware upgrades and model differences, new revisions may not be listed in this guide.
Page 2 List 1 Assemblys 2pcs 2pcs...
Page 3 List 2 Sections Fasteners Tools 2pcs 4pcs M5 T-nut M5X8 4pcs 2pcs M4X20 M5X25 4pcs 2pcs M4X16 M4X18P 5pcs 4pcs M5X45...
Page 4 Step 1 Longer 4pcs M5X45 Shorter Shorter Front...
Page 5 Step 2 2pcs *Select the correct input voltage to M5X8 match your local mains (230V or 115V). 2pcs M4X20...
Page 6 Step 3 ≈32mm...
Page 7 Step 4 M4X18P...
Page 8 Step 5 2pcs M4X16...
Page 9 Step 6 2pcs M4X16...
Page 10 Step 7 Back...
Page 11 Step 8...
Page 12 Step 9 *Don't tighten it too tight...
Page 13 Step 10 2pcs 4pcs M5X25...
Page 14 Step 11 2pcs M5X8 2pcs 2pcs M5 T-nut...
Page 15 Step 12 Exp3 Left...
Page 16 After-Sales Service Tel: (+86)400-6133 882 O f f i c i a l W e b s i t e : www.creality3d.cn C o m p a n y A d d r e s s : 12F, Building No.3, Jinchengyuan Industrial Area, Huafan...
