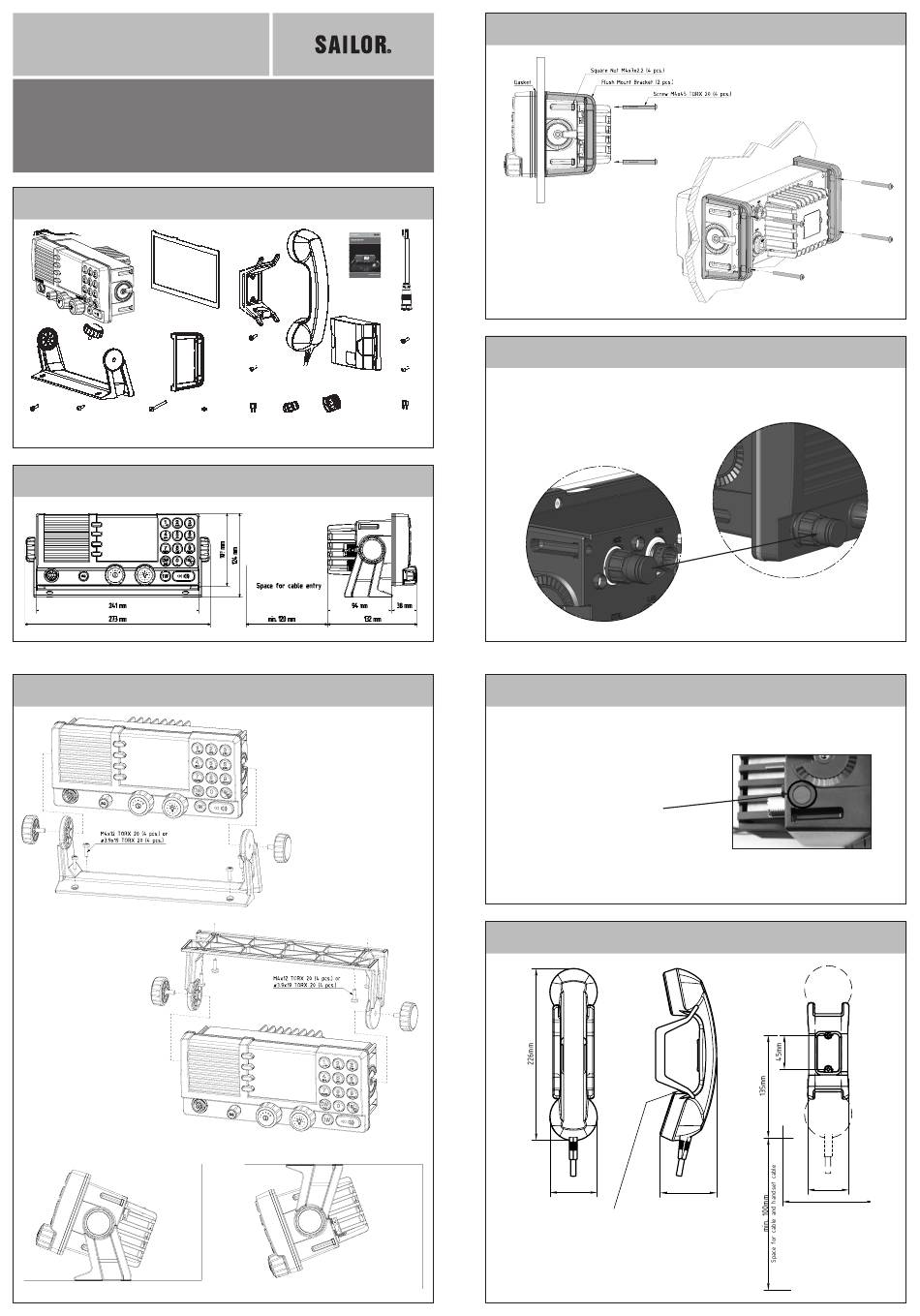

Sailor 6248 Installation Manual

INSTALLATION GUIDE
SAILOR 6248 VHF
What's in the box?
Gasket
Transceiver
Flush Mount
Bracket (2 pcs.)
Wheel Knob
(2 pcs.)
U-Mounting
Bracket
Screw M4x12 Screw ø3.9x19 Screw M4x45 Square Nut
TORX 20 TORX 20 TORX 20
(5 pcs.) (5 pcs.) (5 pcs.)

Dimensions for the VHF

How to install the VHF on desktop and overhead

Cradle
User Manual
Handset
Screw M4x12
TORX 20 (2 pcs.)
Screw ø3.9x19 SAILOR 6090
Power Converter
TORX 20 (2 pcs.)
Fuse Cap for LTW Cap for LTW
M4x7x2.2 6.3x3.2mm BD/BU RJ45
(5 pcs.) (10AT) Connector Connector
(3 pcs.)
Tilting ±20°

How to install the VHF flush mount

Power
Cable

How to prevent water ingress

Screw M4x12
TORX 20 (4 pcs.)
Screw ø3.9x19
Connector for Handset or Hand Microphone - If not used, put the cap
TORX 20 (4 pcs.)
from the ACC connector on the front connector to prevent water ingress.
Fuse
6.3x3.2mm
(10AT)
Very important information!
Do not remove the membrane.
If you remove the membrane the
radio will not be waterproof.

How to install the handset

39655C

Handset for transceiver

62mm
75mm
This Handset has a hook-on/off function,
which is activated by a small magnet embedded
in the cradle.
The cradle must be installed as illustrated in
order to ensure the hook-on/off functionality
of the Handset.
54mm
* 120mm
Space for handset access
