Atid AT870 Reference Manual

Windows ce .net ruggedized pda
Hide thumbs Also See for AT870:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Quick Manual
SDK Reference Guide (Rev1.7)
AT870
Windows CE
.NET Ruggedized PDA
®
ATID Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT870 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atid AT870

Summary of Contents for Atid AT870

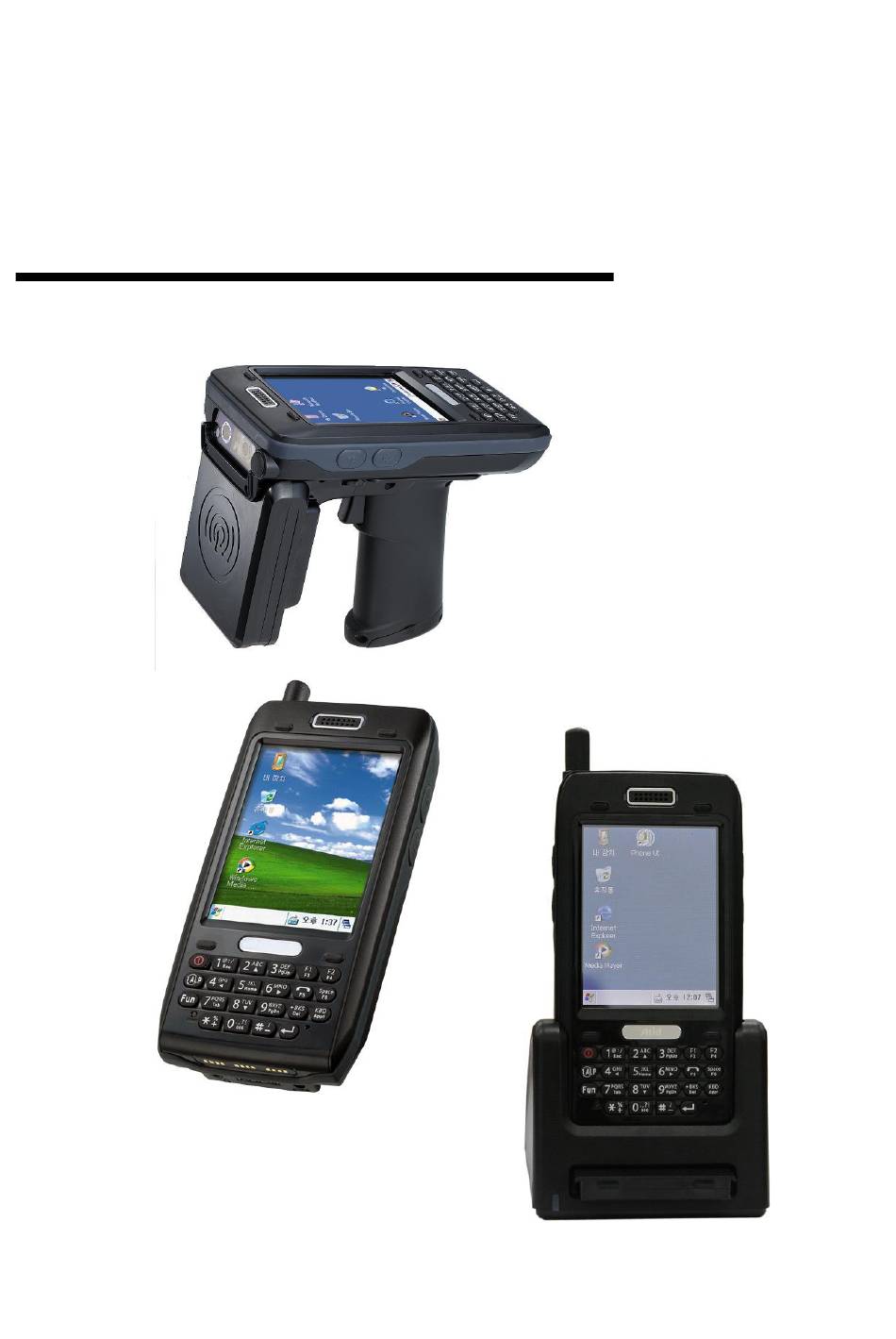

  • Page 1 SDK Reference Guide (Rev1.7) AT870 Windows CE .NET Ruggedized PDA ® ATID Co., Ltd.
  • Page 2 ATID is a registered trademark of ATID Co., Ltd.. The ATID logo is a trademark of ATID . All other trademarks and trade names referred to herein are property of their respective owners. AT870 is a registered trademark of ATID Co., Ltd.. and of its wholly owned subsidiaries.

  • Page 3: Table Of Contents

    AT870 SDK RFID 900MHz Reference UHF 900MHZ .NET SDK API REFERENCE GUIDE ..... 5 1.1. C ....................5 ONSTRUCTOR 1.1.1. CUHFHost() ........................5 1.2. P ....................5 ROPERTIES 1.2.1. ActivatedForm ........................5 1.2.2. FirmwareVersion ......................5 1.2.3. LibVersion ......................... 5 1.3.
  • Page 4 1.5.3. CONTROL_CODE ......................27 1.5.4. HOPPING_CODE ......................27 1.5.5. MEMBANK_CODE ......................27 1.5.6. ReportMode ........................28 1.5.7. UIDREAD_CODE ......................28 1.5.8. InventoryFlagMode ......................28 1.6. S ....................28 TRUCTURE 1.6.1. CH_STATE ........................28 1.6.2. CONTROL_VALUE ......................28 AT870 SDK UHF 900MHz Reference...

  • Page 5: Uhf 900Mhz .Net Sdk Api Reference Guide

    Get Firmware Version 1.2.3. LibVersion Description : Get Library Version 1.3. Interface 1.3.1. GetAccessEPC(string EPC) Description : Get accessed EPC of tag. 1.3.2. GetMemoryData(string MemoryData) Description : Get MemoryBank Value. (Result of access’ operation) 1.3.3. GetReply(string Reply) AT870 SDK UHF 900MHz Reference...

  • Page 6: Methods

    FALSE : If this function failed in opening the communication port of UHF module. The cause of FALSE : Another program is using the UHF900Mhz reader, you need to close the program to use yours. AT870 SDK UHF 900MHz Reference...

  • Page 7: Isopen()

    If the value of Code is set by EPC_GEN2_MULTI_TAG, the reader reads tag continuously till it receives the stop command. Parameters : UIDREAD_CODE code Return Values : None Protocol Type : EPC Gen2 1.4.9. void ReadUID_TagSelect(UIDREAD_CODE code, string EPC) AT870 SDK UHF 900MHz Reference...

  • Page 8: Readepc_Continuous()

    Result – variable to get data. string EPC - the value of EPC to access. Return Values : AccessResult Protocol Type : EPC Gen2 1.4.13. AccessResult InventoryOnce_BankSelect_Done(string Result, MEMBANK_CODE MemBank_s, uint Offset_s, string Pattern_s) AT870 SDK UHF 900MHz Reference...

  • Page 9: Bankselectread()

    EPC – the value of EPC to access. string AccessPWD(can be omitted) - using password, if Membank is locked. Return Values : None Protocol Type : EPC Gen2 1.4.16. void BankSelectRead_BankSelect(MEMBANK_CODE MemBank, uint start, uint length, AT870 SDK UHF 900MHz Reference...

  • Page 10: Bankselectread_Tagselect()

    1.4.18. AccessResult BankSelectRead_TagSelect_Done(string Result, MEMBANK_CODE MemBank, uint start, uint length, string EPC) AccessResult BankSelectRead_TagSelect_Done(string Result, MEMBANK_CODE MemBank, uint start, uint length, string EPC, string AccessPWD) Description : This function works as like as BankSelectRead(MEMBANK_CODE MemBank, uint AT870 SDK UHF 900MHz Reference...

  • Page 11: Bankselectread_Bankselect_Done

    Description : This function writes data in Memory Bank and Block. EPC memory from 0 to 3 (4bytes) is reserved as CRC and PC. So you should write data from over 2(4bytes) in the EPC Memory. AT870 SDK UHF 900MHz Reference...
  • Page 12 MemBank_s – memory bank of target tag uint Offset_s – the memory address of pattern (one bit per a unit) string Pattern_s – the pattern of memory bank string AccessPWD(can be omitted) – using password, if Memory bank is locked. AT870 SDK UHF 900MHz Reference...

  • Page 13: Bankselectwrite_Tagselect()

    AccessResult Protocol Type : EPC Gen2 1.4.25. AccessResult BankSelectWrite_BankSelect_Done(MEMBANK_CODE MemBank, uint Start, string strWriteData, MEMBANK_CODE MemBank_s, uint Offset_s, string Pattern_s) AccessResult BankSelectWrite_BankSelect_Done(MEMBANK_CODE MemBank, uint Start, string strWriteData, MEMBANK_CODE MemBank_s, uint Offset_s, string Pattern_s, string AccessPWD) AT870 SDK UHF 900MHz Reference...

  • Page 14: Lock

    Parameter: bool kill_pwd, bool access_pwd, bool epc, bool tid, bool user : true - makes memory block locked. false - no influence on making block data locked or unlocked. string AccessPWD – Access Password AT870 SDK UHF 900MHz Reference...

  • Page 15: Lock_Bankselect()

    AccessPWD – Access Password string EPC – the value of EPC to access. Return: AccessResult Protocol Type : EPC Gen2 1.4.30. AccessResult Lock_Done_TagSelect(bool kill_pwd, bool access_pwd, bool epc, bool tid, bool user, string AccessPWD, string EPC) Description : AT870 SDK UHF 900MHz Reference...

  • Page 16: Lock_Bankselect_Done

    : true- makes memory block unlocked. false - no influence on making block data locked or unlocked. string AccessPWD – Access Password Return Values : True : succeeds in making memory block unlocked. AT870 SDK UHF 900MHz Reference...

  • Page 17: Unlock

    AccessPWD) Description : This function works as like as UnLock(bool kill_pwd, bool access_pwd, bool epc, bool tid, bool user, string AccessPWD). SET_ReportMode(ReportMode.WAIT_DONE) should be set for use this function. AT870 SDK UHF 900MHz Reference...

  • Page 18: Unlock_Tagselect_Done

    MemBank_s – memory bank of target tag uint Offset_s – the memory address of pattern (one bit per a unit) string Pattern_s – the pattern of memory bank Return Values : AccessResult Protocol Type : EPC Gen2 AT870 SDK UHF 900MHz Reference...

  • Page 19: Permalock()

    – flag for continuous access. string AccessPWD – Access Password MEMBANK_CODE MemBank_s – memory bank of target tag uint Offset_s – the memory address of pattern (one bit per a unit) string Pattern_s – the pattern of memory bank AT870 SDK UHF 900MHz Reference...

  • Page 20: Permalock_Done

    SET_ReportMode(ReportMode.WAIT_DONE) should be set for use this function. Refer to ‘AccessResult’ for getting result. Beware of using this function – If this function was succeed, it cannot be change status. AT870 SDK UHF 900MHz Reference...

  • Page 21: Tagkill()

    – flag for continuous access. MEMBANK_CODE MemBank_s – memory bank of target tag uint Offset_s – the memory address of pattern (one bit per a unit) string Pattern_s – the pattern of memory bank AT870 SDK UHF 900MHz Reference...

  • Page 22: Tagkill_Done()

    Offset_s – the memory address of pattern (one bit per a unit) string Pattern_s – the pattern of memory bank string szAccessPWD – access password Return Values : Returns True, if the command is transferred exactly. Protocol Type : EPC Gen2 AT870 SDK UHF 900MHz Reference...

  • Page 23: Get_Epc()

    Multi read operation is stopped caused by asking from application Protocol Type : EPC Gen2 1.4.52. Control_Value GET_ControlValue() Description : Reads the value set in UHF module. Parameters : None Return Values : Control_Value AT870 SDK UHF 900MHz Reference...

  • Page 24: Bool Set_Qvalue()

    = success, false = failure Protocol Type : EPC Gen2 1.4.56. bool SET_ContinueModeONOff(bool bCode) Description : According to bCode setting, this function stops reading tag or continues to read tag. Default = Off Parameters : AT870 SDK UHF 900MHz Reference...

  • Page 25: Set_Session()

    FLAG_AB – A and B state of Inventory flag could be inventoried. Return Values : true = success, false = fail Protocol Type : EPC Gen2 1.4.60. bool GET_MaxPwr(ref pwr) Description : Get maximum capacity power of module. AT870 SDK UHF 900MHz Reference...

  • Page 26: Set_Lbt_Chstate()

    ACCESS_EPC – Set mode getting EPC value in access operation. EXTENDED_INFORMATION – Set mode getting RSSI information to accessed tag when Inventory operation. WAIT_DONE – Set mode that the way of Return value style functions. Parameters : ReportMode mode Bool AT870 SDK UHF 900MHz Reference...

  • Page 27: E Numeration

    POWER_OFF STOPPED Unknown 1.5.2. ActField Member : AccessPWD KillPWD USER 1.5.3. CONTROL_CODE Member : CTL_ALL CTL_BUZZER CTL_CONTINUE CTL_HOPPING CTL_POWER CTL_QVALUE CTL_TIMEOUT CTL_VERSION 1.5.4. HOPPING_CODE Member : CHINA_FHSS EURO_LBT JAPAN_LBT JAPAN_NO_LBT KOREA_FHSS KOREA_LBT USA_FHSS 1.5.5. MEMBANK_CODE AT870 SDK UHF 900MHz Reference...

  • Page 28: Reportmode

    1.6. Structure 1.6.1. CH_STATE Member : bool bool bool bool bool bool bool bool bool bool CH10 1.6.2. CONTROL_VALUE Member : bool Buzzer CHNumber CH_STATE ChState bool ContinueMode HOPPING_CODE Hopping bool HoppingOn LBT_Time Power Qvalue AT870 SDK UHF 900MHz Reference...
  • Page 29 SessionValue ScanTime Timeout string Version AT870 SDK UHF 900MHz Reference...
