EN4016SK Survey Receiver
Installation and Operation Manual

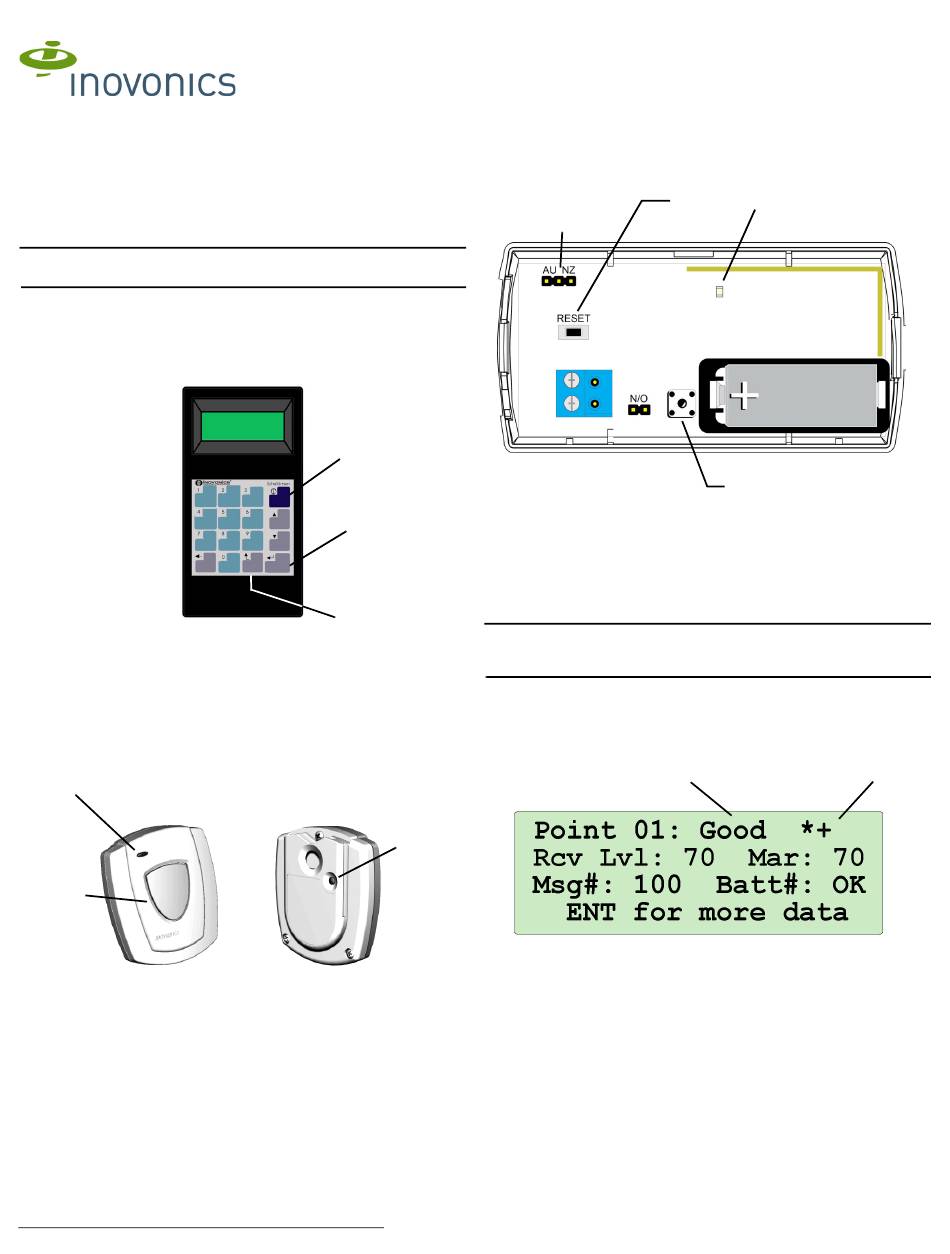

1 Quick Start

By following this procedure you can quickly configure the supplied
equipment to perform a site survey. Review the main body of this manual
for additional options, features and a more detailed startup process.
Note: If performing site surveys in Australia or New Zealand, the additional
setup steps in the main body of this manual must be performed.
1. Slide off the battery cover on the back of the EN4016SK survey
receiver.
2. Load four AA batteries into the survey receiver.
3. Press the power button to turn on the survey receiver.

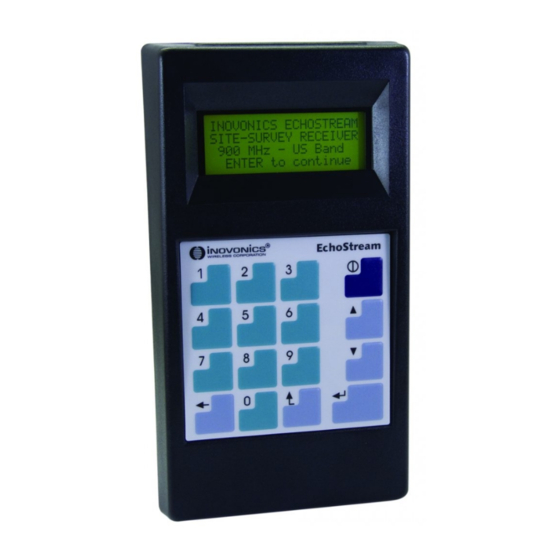

Figure 1 EN4016SK survey receiver
4. Press the enter button to advance to Main Menu.
5. Select Register Point on the Main Menu.
6. Select Point 1 on the Register Point menu.
7. Press the EN1223SK reset button.
Transmit
LED
On/Off
Button
Figure 2 EN1223SK survey transmitter (sold separately)
8. Select Pendant. The survey transmitter should now be registered.
9. Press the EN1223SK On/Off button. The transmit LED should begin to
flash.
10. Use the small flat-blade screwdriver to press the housing release tab on
either end of the EN1210SK and separate the housing.
11. Select Point 2 on the Register Point menu.
6.13.19 168-04493-01 Rev A © Inovonics, 2019 - www.inovonics.com
12. Press the EN1210SK Reset button. The transmitter should now be
registered.
Power
Button
Enter
Figure 3 EN1210SK survey transmitter
Button
13. Press the EN1210SK on/off button. The transmit LED should begin to
flash.
14. Place the survey transmitters where you plan to mount your network
coordinator or receiver.
15. Walk the receiver to the first point you plan to use a transmitter or a two-
Exit way end device.
Button
Note: Reversing the position of the end device and the high-power
repeater will make the survey easier to perform. This equipment reversal
will not affect the accuracy of the results.
16. Press exit to return to the Main Menu.
17. Select Point Status on the Main Menu.
18. Select Point 1 or Point 2 to view signal information.
Reset
Button
Figure 4 The Point Status Summary screen
Frequency
Reset
Band
Button
Selection
Pins
Signal
Quality
Transmit
LED
On/Off
Button
Transmission
Symbols
