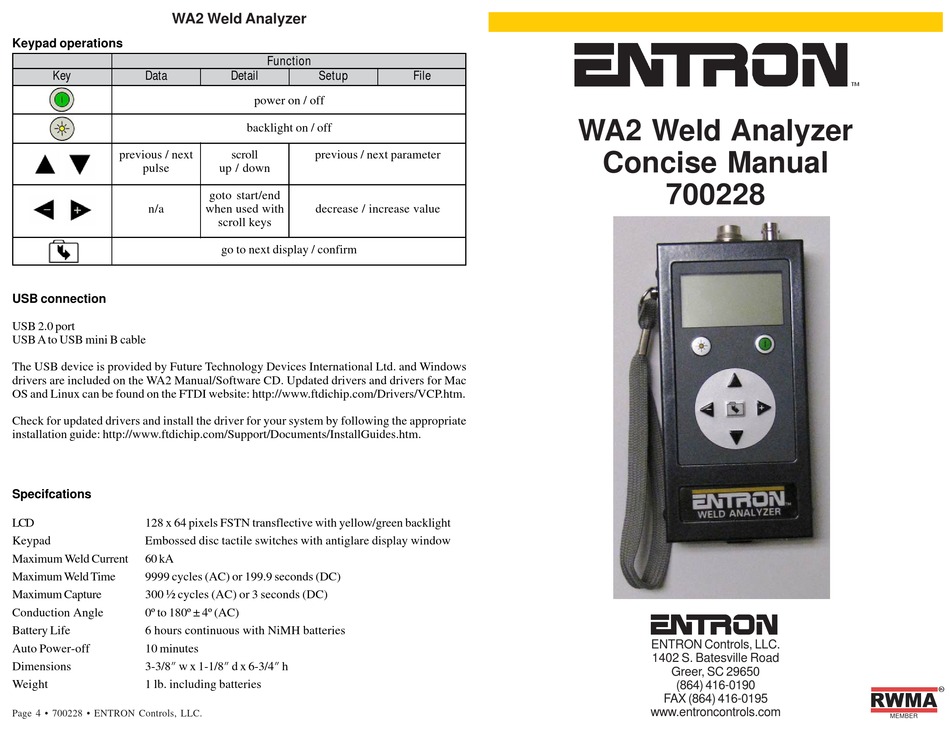

Entron WA2 Concise Manual

WA2 Weld Analyzer
Keypad operations
Key Data
previous / next
pulse
n/a
USB connection
USB 2.0 port
USB A to USB mini B cable
The USB device is provided by Future Technology Devices International Ltd. and Windows
drivers are included on the WA2 Manual/Software CD. Updated drivers and drivers for Mac
OS and Linux can be found on the FTDI website: http://www.ftdichip.com/Drivers/VCP.htm.
Check for updated drivers and install the driver for your system by following the appropriate
installation guide: http://www.ftdichip.com/Support/Documents/InstallGuides.htm.
Specifcations
LCD 128 x 64 pixels FSTN transflective with yellow/green backlight
Keypad Embossed disc tactile switches with antiglare display window
Maximum Weld Current 60 kA
Maximum Weld Time 9999 cycles (AC) or 199.9 seconds (DC)
Maximum Capture 300 ½ cycles (AC) or 3 seconds (DC)
Conduction Angle 0º to 180º ± 4º (AC)
Battery Life 6 hours continuous with NiMH batteries
Auto Power-off 10 minutes
Dimensions 3-3/8O w x 1-1/8O d x 6-3/4O h
Weight 1 lb. including batteries
Page 4 • 700228 • ENTRON Controls, LLC.
Function
Detail Setup
power on / off
backlight on / off
scroll previous / next parameter
up / down
goto start/end
when used with decrease / increase value
scroll keys
go to next display / confirm
File
WA2 Weld Analyzer
Concise Manual
700228
ENTRON Controls, LLC.
1402 S. Batesville Road
Greer, SC 29650
(864) 416-0190
FAX (864) 416-0195
www.entroncontrols.com
