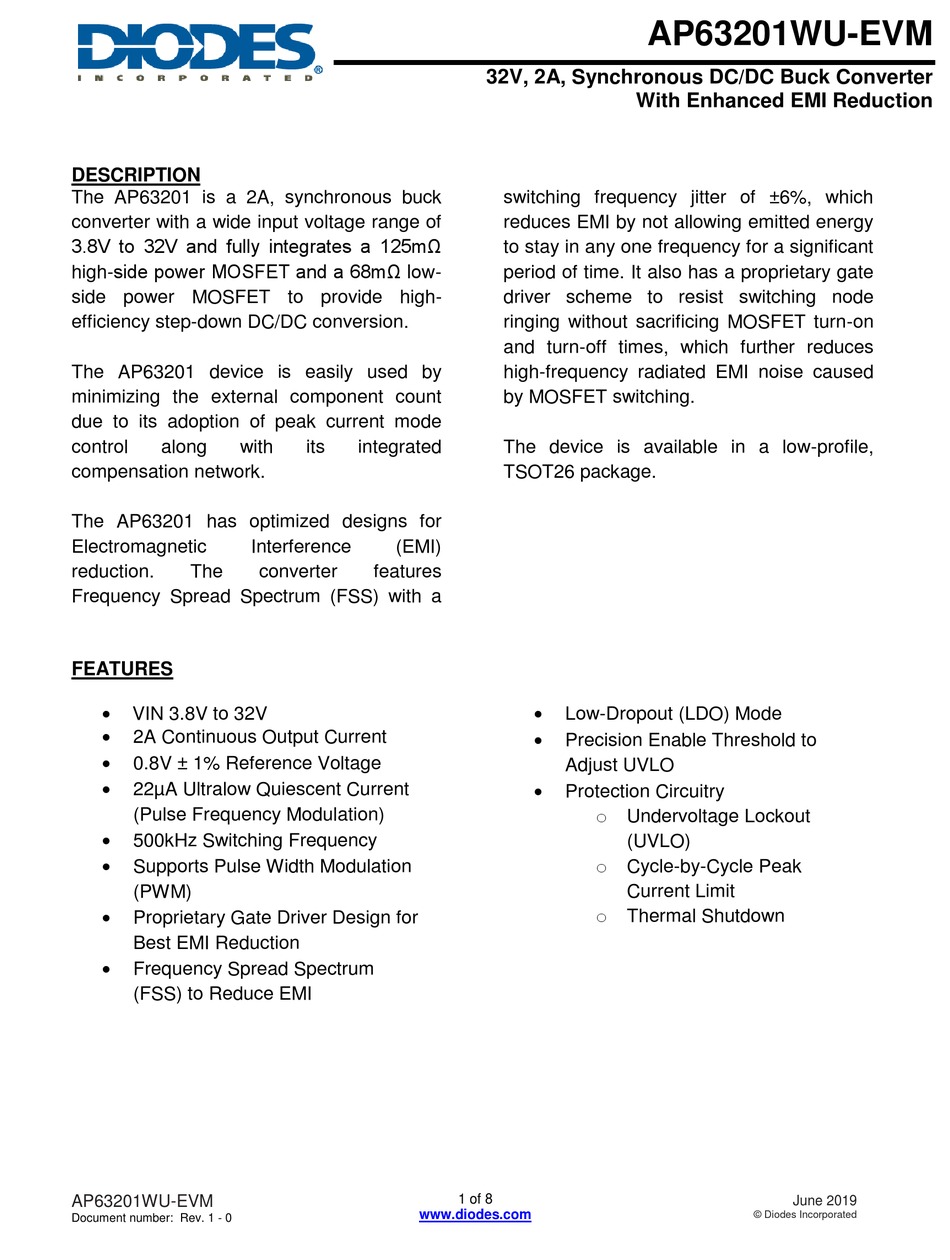

Diodes AP63201WU-EVM Manual

DESCRIPTION
The AP63201 is a 2A, synchronous buck
converter with a wide input voltage range of
3.8V to 32V and fully integrates a 125mΩ
high-side power MOSFET and a 68mΩ low-
side power MOSFET to provide high-
efficiency step-down DC/DC conversion.
The AP63201 device is easily used by
minimizing the external component count
due to its adoption of peak current mode
control along with
compensation network.
The AP63201 has optimized designs for
Electromagnetic
reduction. The
Frequency Spread Spectrum (FSS) with a
FEATURES

VIN 3.8V to 32V

2A Continuous Output Current

0.8V ± 1% Reference Voltage

22µA Ultralow Quiescent Current
(Pulse Frequency Modulation)

500kHz Switching Frequency

Supports Pulse Width Modulation
(PWM)

Proprietary Gate Driver Design for
Best EMI Reduction

Frequency Spread Spectrum
(FSS) to Reduce EMI
AP63201WU-EVM
Document number: Rev. 1 - 0
its integrated
Interference (EMI)
converter features
www.diodes.com
32V, 2A, Synchronous DC/DC Buck Converter
With Enhanced EMI Reduction
switching frequency jitter of ±6%, which
reduces EMI by not allowing emitted energy
to stay in any one frequency for a significant
period of time. It also has a proprietary gate
driver scheme to resist switching node
ringing without sacrificing MOSFET turn-on
and turn-off times, which further reduces
high-frequency radiated EMI noise caused
by MOSFET switching.
The device is available in a low-profile,
TSOT26 package.

Low-Dropout (LDO) Mode

Precision Enable Threshold to
Adjust UVLO

Protection Circuitry
o Undervoltage Lockout
(UVLO)
o Cycle-by-Cycle Peak
Current Limit
o Thermal Shutdown
