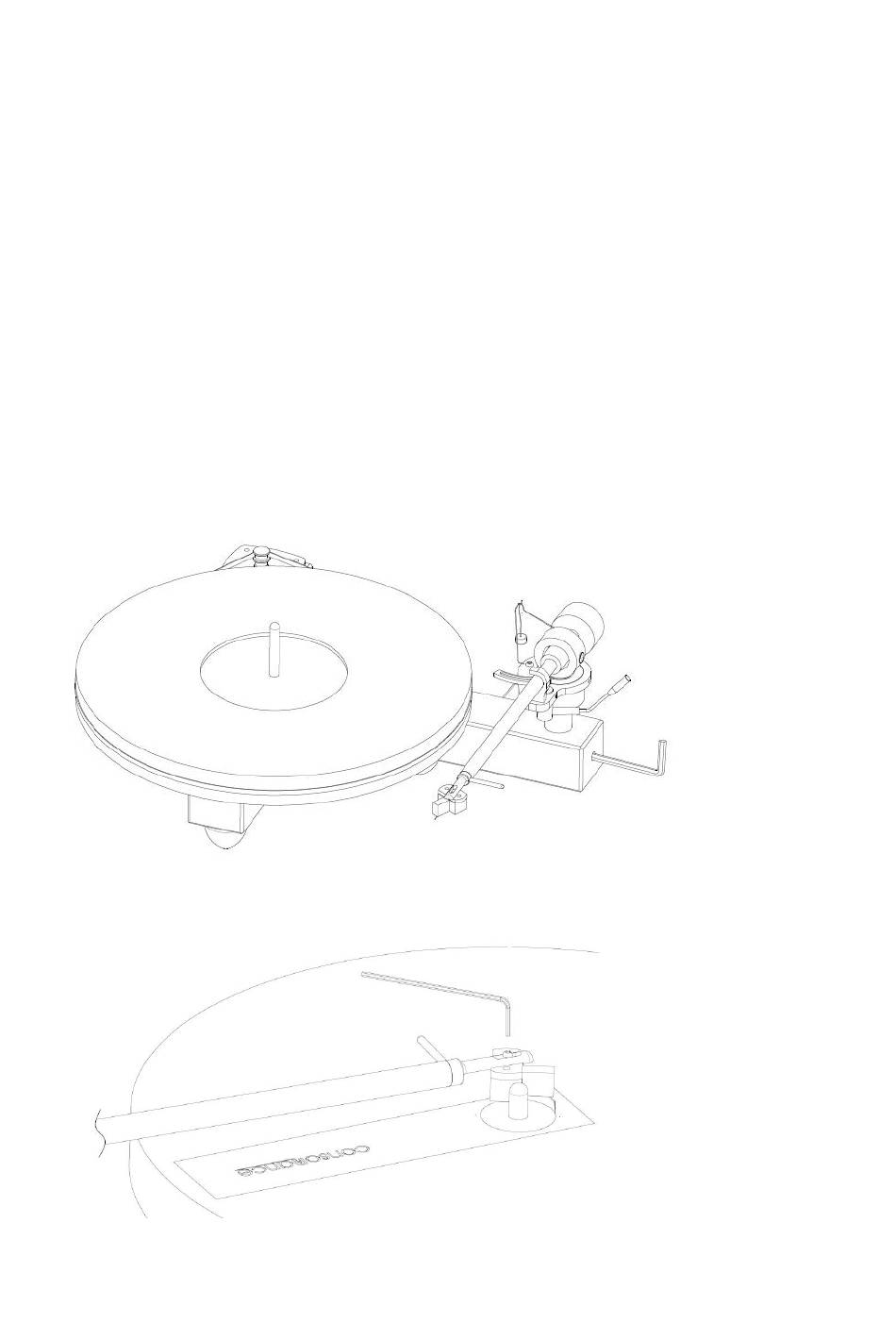

FITTINGTHE CARTRIDGE, TONEARM ALIGNMENTAND COUNTERWEIGHT

1. Install the cartridge onto the headshell using the colour coded terminals as to the
cartridge manufacturers recommendation.
2. Align the cartridge in headshell, set angle with protractor provided. And make sure
the overhang is 16mm.
3. Install the counterweight on the rear of the tonearm. Set the tracking force by gently
rotating the counterweight to apply the correct tracking force as to the cartridges
manufacturers recommendation using stylus tracking force gauge as supplied.
4. VTA (Vertical tracking angle) can be set by raising or lowering tonearm in base only
gentle force is required to adjust socket head screw.
