SANDENVENDO AMERICA INC

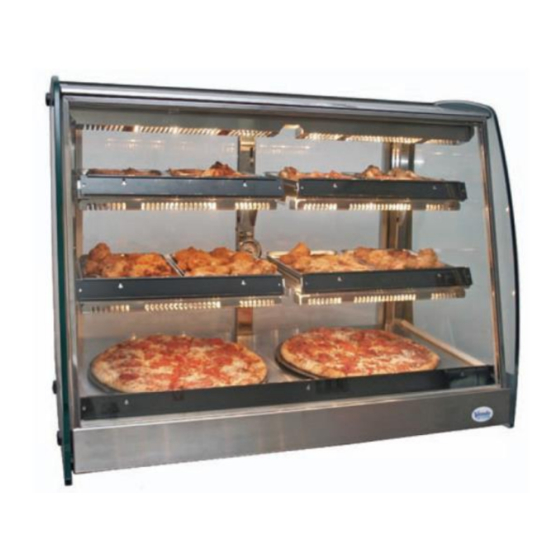

HOT FOOD DISPLAY
Technical Service Manual
HFDC00002, HFDC00003
HFDM00002
1213686J ECN 57413
M
ODELS HFD000006 & 7
HFDC00002 & 3
HFDM00002
HFDH00001 thru 3
HFDHC0001 thru 10
Table of Contents
Commitment to Safety........................2
Safety Warnings..................................3
Parts.................................................4
Operation..........................................8
Troubleshooting...............................12
Controller Connections......................13
HFDH00001,2,3
HFDHC0001,2,3,4,5,6,7,8,9,10
1
Advertisement
Related Manuals for Vendo Sanden HFD000006
Summary of Contents for Vendo Sanden HFD000006
-
Page 1: Table Of Contents
SANDENVENDO AMERICA INC HOT FOOD DISPLAY Technical Service Manual ODELS HFD000006 & 7 HFDC00002 & 3 HFDM00002 HFDH00001 thru 3 HFDHC0001 thru 10 Table of Contents Commitment to Safety…….….…...….…2 Safety Warnings…….……..…….....3 Parts..…….……………………………..4 HFD000006, HFD000007 Operation……………………..….………...8 Troubleshooting……………..…….…..12 Controller Connections..……..…..….…13 HFDC00002, HFDC00003 HFDH00001,2,3 HFDM00002 HFDHC0001,2,3,4,5,6,7,8,9,10... -
Page 2: Commitment To Safety
SANDENVENDO AMERICA INC A COMMITMENT TO SAFETY The SandenVendo is committed to safety in every aspect of our product design. SandenVendo is committed to alerting every user to the possible dangers involved in improper handling or maintenance of our equipment. The servicing of any electrical or mechanical device involves potential hazards, both to those servicing the equipment and to users of the equipment. -
Page 3: Safety Warnings
SANDENVENDO AMERICA INC SAFETY WARNINGS The HFD is for indoor use only. Do not use near water or in condensing humidity. To prevent electric shock or fire, do not kink, pull, or pinch the power cord, and insure no equipment is resting on the power cord. If the power cord is damaged, unplug and replace. Do not connect with other plugs. -
Page 4: Hfd000006, Hfd000007
SANDENVENDO AMERICA INC PARTS HFD000006, HFD000007 Lamp Lamp Socket Item Part # Description 1158489 Gasket, Door, Side 1158477 Gasket, Door, Upper 1158491 Gasket, Door, Lower 1201293-2 Controller 1207087 Heater Kit (not shown) 1207441 Shelf Assembly, Upper Left 1207465 Shelf Assembly, Middle Left 1207415 Shelf Assembly, Bottom 1207476... - Page 5 SANDENVENDO AMERICA INC HFDC00002, HFDC00003 Rack Rack Combo Serve Front Door & Shelf Parts Item Part # Description 1259989 Left Door w/ Center Handle Assembly 1259989-1 Right Door w/ Center Handle Assembly 1185603-1 Frame Gasket (Horizontal, 2x) 1185603-2 Frame Gasket (Vertical, 2x) 1187405 Damper (one each side) 1202273...
- Page 6 SANDENVENDO AMERICA INC HFDM00002 1178854 Lamp Guard 1166955 Side Glass (no decal) 1165355 Left Decal 1207555 Shelf Assembly 1207567 Shelf Assembly 1177198 Front Door 1182055 Middle & Upper Shelf Rack, Black 1178798 Shelf Guard 1203125 Caution Hot Label 1178038 Vertical Rear Gasket (not shown) 1158685 Side Gasket...
- Page 7 SANDENVENDO AMERICA INC HFDHC0001,2,3,4,5,6,7,8,9,10 1185603-3 Horizontal See last page for Controller Connections Frame Gasket for electrical component part numbers 1226236 Shelf Guard 1226272 Side Glass (no decals) 1158696-2 Side Gasket 1226352 Top/Middle 1158696-1 Front Gasket 2 Racks per shelf (not shown) 1185603-4 Vertical Frame Gasket 1226399 Bottom 2...
-
Page 8: Operation
SANDENVENDO AMERICA INC OPERATION Display and Keypad Timer adjustment: Use buttons to adjust TIME I/O button shelf temperature and timers down or up button Upper left shelf (except HFDM) Middle left shelf Upper right shelf (except HFDM) Middle right shelf USB port Lower right shelf Lower left shelf... - Page 9 Clear the error by powering off the unit, correcting the problem, and turning the unit on again. Programming using USB drive The file name must be vendo.cfg and be saved on the root directory of the USB drive. The file may be edited using Notepad.
- Page 10 2. Turn on the controller. The configuration will load in less than 5 seconds. 3. The display will show the configuration code (example: 001h) from the vendo.cfg file. 4. Pull the flash drive out of the controller (controller may remain on).
- Page 11 SANDENVENDO AMERICA INC HFDH and HFDHC SV01 HFDH and HFDHC 00HC Left Side Right Side UL:245,2:00,2:00 Heater Heater Left Right Left Right ML:245,2:00,2:00 Setpoint Setpoint Timer Timer Timer Timer LL:245,2:00,2:00 ºF ºF UR:245,2:00,2:00 2:00 2:00 2:00 2:00 MR:245,2:00,2:00 2:00 2:00 2:00 2:00 LR:245,2:00,2:00...
-
Page 12: Troubleshooting
SANDENVENDO AMERICA INC TROUBLESHOOTING Unplug unit before servicing Symptom Possible Cause Remedy Power cord unplugged Plug HFD cord in outlet. No power at outlet Check voltage at outlet (115VAC) Turn on breaker. HFD6 & 7: remove lower rear cover HFD circuit breaker off to access breaker. -
Page 13: Controller Connections
SANDENVENDO AMERICA INC CONTROLLER CONNECTIONS Left / Right as viewed from the controller side 1255614 NEMA 5-15P External Power Cord 1250396 Heater 6x: HFDH, HFDC 1250396 Heater 4x: HFDM 1259326 External Power For HFDHxxxx and HFDHCxxxx heaters, see summary on page 7 NEMA Cord for HFDHC0007,8... - Page 14 SANDENVENDO AMERICA INC Older controller appearance and schematic below: 1213686J ECN 57413...
- Page 15 SANDENVENDO AMERICA INC 1087074 Button CONTROLLER CONNECTIONS – Old models 1161921 1163898 Harness, Controller (HFD 3, 4, 5) 1202224 Breaker 1202145 Harness, Controller (HFDC only) Harness, Remote On/Off 1159408 Light Harness, Top (2x) 1187878 Harness, Fan with Switch 1180812 Fan (2x) 1159574 Light Harness, Shelf (4x) Fuses...
