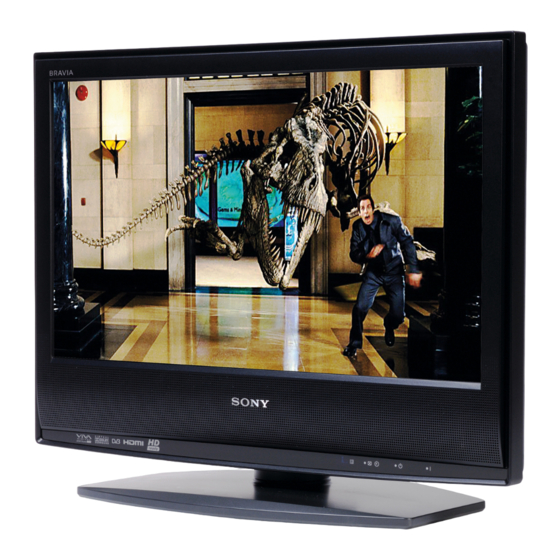

- Page 1 LCD Digital Colour TV KDL-20S2030 KDL-20S2020 KDL-20S2000 © 2006 Sony Corporation Operating Instructions Before operating the TV, please read the “Safety information” section of this manual. Retain this manual for future reference. For useful information about Sony products 2-685-333-14(1)
-
Page 2: Trademark Information
Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station. How to replace the fuse Open the fuse compartment with a blade screwdriver, and replace the fuse. -
Page 3: Table Of Contents
Table of Contents Start-up Guide Start-up Guide 4 Safety information ...7 Precautions ...10 Overview of the remote ...11 Overview of the TV buttons and indicators ...12 Watching TV Watching TV...13 Checking the Digital Electronic Programme Guide (EPG) Using the Favourite list Viewing pictures from connected equipment ...18 Using MENU Functions Navigating through menus ...19... -
Page 4: Start-Up Guide
Start-up Guide 1: Checking the accessories Remote RM-ED007 (1) Size AA batteries (R6 type) (2) Cable holder (1) Support belt (1) and screws (2) To insert batteries into the remote Notes • Observe the correct polarity when inserting batteries. • Dispose of batteries in an environmentally friendly way. Certain regions may regulate disposal of the battery. - Page 5 3: Bundling the cables 4: Preventing the TV from toppling over 5: Selecting the language and country/region Continued...
-
Page 6: Auto-Tuning The Tv
Connect the TV to your mains socket (220-240V AC, 50Hz). Press 1 on the TV (top side). When you switch on the TV for the first time, the Language menu appears on the screen. When the TV is in standby mode (the indicator on the TV (front) is red), press "/1 on the remote to switch on the TV. -
Page 7: Safety Information
Sony service centre to exchange it. • Do not use the supplied mains lead on any other equipment. • Use only an original Sony mains lead, not other brands. Mains socket Do not use a poor fitting mains socket. Insert the plug fully into the mains socket. - Page 8 Ventilation • Never cover the ventilation holes or insert anything in the cabinet. It may cause overheating and result in a fire. • Unless proper ventilation is provided, the TV set may gather dust and get dirty. For proper ventilation, observe the following: –...
- Page 9 Broken pieces • Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury. • If the surface of the TV set cracks, do not touch it until you have unplugged the mains lead.
-
Page 10: Precautions
Precautions Viewing the TV • To view the TV comfortably, the recommended viewing position is from four to seven times the screen’s vertical length away from the TV set. • To obtain a clear picture, do not expose the screen to direct illumination or direct sunlight. -
Page 11: Overview Of The Remote
Overview of the remote The PROG + and number 5 buttons have tactile dots. Use the tactile dots as references when operating the TV. 1 "/1 – TV standby Switches off the TV temporarily and on from standby mode. – Screen mode (page 14) 3 Coloured buttons •... -
Page 12: Overview Of The Tv Buttons And Indicators
Overview of the TV buttons and indicators 1 MENU (page 19) – Input select/OK • In TV mode (page 18): Selects the input source from equipment connected to the TV sockets. • In TV menu: Selects the menu or option, and confirm the setting. -
Page 13: Watching Tv
Watching TV Watching TV Press 1 on the TV (top side) to switch on the TV. When the TV is in standby mode (the 1 (standby) indicator on the TV (front) is red), press "/1 on the remote to switch on the TV. Press DIGITAL to switch to digital mode or ANALOG to switch to analogue mode. -
Page 14: Picture Freeze
To access Text Press /. Each time you press /, the display changes cyclically as follows: Text t Text over the TV picture (mix mode) t No Text (exit the Text service) To select a page, press the number buttons or PROG +/-. -
Page 15: Checking The Digital Electronic Programme Guide (Epg)
Checking the Digital Electronic Programme Guide (EPG) Digital Electronic Programme Guide (EPG) Turn off the EPG Move through the EPG Watch a current programme Sort the programme information by category – Category list Set a programme to be recorded – Timer In digital mode, press Digital Electronic Programme Guide (EPG). - Page 16 Set a programme to be displayed automatically on the screen when it starts – Reminder Set the time and date of a programme you want to record – Manual timer REC Cancel a recording/reminder – Timer list You can also display the Digital Electronic Programme Guide (EPG) by selecting “Digital EPG” in the “MENU”. Do this Press to select the future programme you want to...
-
Page 17: Using The Favourite List
Using the Favourite list Favourite list Create your Favourite list for the first time A message appears asking if you want to add channels to the Favourite list Turn off the Favourite list Watch a channel Add or remove channels in the Favourite list Remove all channels from the Favourite list... -
Page 18: Viewing Pictures From Connected Equipment
Viewing pictures from connected equipment Switch on the connected equipment, then perform one of the following operation. For equipment connected to the scart sockets using a fully-wired 21-pin scart lead Start playback on the connected equipment. The picture from the connected equipment appears on the screen. -
Page 19: Using Menu Functions
Using MENU Functions Navigating through menus “MENU” allows you to enjoy various convenient features of this TV. You can easily select channels or external inputs with the remote. Also, settings for your TV can be changed easily using “MENU”. Menu Digital Favourites (in digital mode only) Programme List... -
Page 20: Picture Adjustment Menu
Picture Adjustment menu Picture Adjustment Picture Mode Backlight Contrast Brightness Colour Sharpness Colour Tone Reset Noise Reduction Back: Select: Enter: Picture Mode Selects the picture mode. • “Vivid”: For enhanced picture contrast and sharpness. • “Standard”: For standard picture. Recommended for home entertainment. •... -
Page 21: Sound Adjustment Menu
Sound Adjustment menu Sound Adjustment Sound Effect Treble Bass Balance Reset Dual Sound Auto Volume TV Speakers Back: Select: Enter: Sound Effect Selects the sound mode. “ • Standard”: Enhances clarity, detail, and sound presence by using “BBE High definition Sound System.”... - Page 22 TV Speakers Turns off the TV speakers e.g. to listen to the sound through external audio equipment connected to the TV. • “On”: the sound is output from the TV speakers. • “One Time Off”: the TV speakers are temporarily turned off allowing you to listen •...
-
Page 23: Features Menu
Features menu Features Screen Power Saving AV2 Output RGB Center PC Adjustment Timer Back: Select: Enter: Screen Changes the screen format. • “Auto Format”: Automatically changes the screen format according to the broadcast signal. • “Screen Format”: For details about the screen format, see page 14 •... - Page 24 PC Adjustment Customizes the TV screen as a PC monitor. This option is only available if you are in PC Mode. • “Phase”: Adjust the screen when a part of a displayed text or image is not clear. • “Pitch”: Enlarges or shrinkes the screen size horizontally. •...
-
Page 25: Set-Up Menu
Set-up menu Set Up Auto Start Up Language Country Auto Tuning Programme Sorting AV Preset Sound Offset Manual Programme Preset Digital Set Up Back: Select: Enter: Auto Start-up Starts the “first time operation menu” to select the language and country/region, and tune in all available digital and analogue channels. -
Page 26: Manual Programme Preset
Manual Programme Before selecting “Label”/“AFT”/“Audio Filter”/“Skip”/“Decoder”, press select the programme number you want to modify. Then, press Preset System Presets programme channels manually. Note Repeat the procedure above to preset other channels manually. Label Assigns a name of your choice, up to five letters or numbers, to the selected channel. This name will be displayed briefly on the screen when the channel is selected. - Page 27 Skip Skips unused analogue channels when you press PROG +/- to select channels. (You can still select a skipped channel using the number buttons.) Decoder Views and records the scrambled channel selected when using a decoder connected directly to scart connector 1, or to scart connector 2 via a VCR.
-
Page 28: Digital Set-Up Menu
Digital Set-up menu Set Up Auto Start Up Language Country Auto Tuning Programme Sorting AV Preset Sound Offset Manual Programme Preset Digital Set Up Back: Select: Digital Tuning Displays the “Digital Tuning” menu. Digital Auto Tuning Tunes in all the available digital channels. Usually you do not need to do this operation because the channels are already tuned when the TV was first installed (page 5). -
Page 29: Digital Setup
“Software Download”: Enables the TV to automatically receive software updates, free through your existing aerial (when issued). Sony recommends that this option is set to “On” at all times. If you do not want your software to be updated, set this option to “Off”. -
Page 30: Using Optional Equipment
Using Optional Equipment Connecting optional equipment You can connect a wide range of optional equipment to your TV. Connecting cables are not supplied. Connecting to the TV (side) To connect Conditional Access Module (CAM) A S VHS/Hi8/DVC camcorder B Headphones C S VHS/Hi8/DVC camcorder Headphones... - Page 31 Connecting to the TV (rear) Video game equipment with component output DVD player DVD recorder Decoder Decoder To connect PC D Digital satellite receiver or DVD player E DVD player Digital satellite receiver DVD player with component output Video game equipment, DVD player or decoder DVD recorder or...
-
Page 32: Additional Information
Additional Information Specifications Display Unit Power Requirements: 220–240 V AC, 50 Hz Screen Size: 20 inches Display Resolution: 1,366 dots (horizontal) × 768 lines (vertical) Power Consumption: 65 W or less Standby Power Consumption* : 1 W or less * Specified standby power is reached after the TV finishes necessary internal processes. -
Page 33: Troubleshooting
For example, the indicator flashes for two seconds, stops flashing for one second, and flashes for two seconds. Press 1 on the TV (top side) to switch it off, disconnect the mains lead, and inform your dealer or Sony service centre of how the indicator flashes (duration and interval). When it is not flashing Check the items in the tables below. - Page 34 Sound Problem No sound, but good picture Noisy sound Channels Problem The desired channel cannot be selected Some channels are blank Digital channel is not displayed General Problem The TV turns off automatically (the TV enters standby mode) The TV turns on automatically Some input sources cannot be selected The remote does not function...
-
Page 35: Index
Index Numerics 14:9 14 4:3 14 Aerial, connecting 4 AFT 26 Audio Filter 26 Audio Language 29 Audio Type 29 Auto Start-up 25 Auto Tuning analogue and digital channels 6 analogue channels only 25 digital channels only 28 Auto Volume 21 AV Preset 25 AV2 Output 23 Backlight 20... - Page 36 D I G I T A L KDL-20S2030 KDL-20S2020 KDL-20S2000 2-685-333-14(1) Printed in Slovak Republic...
