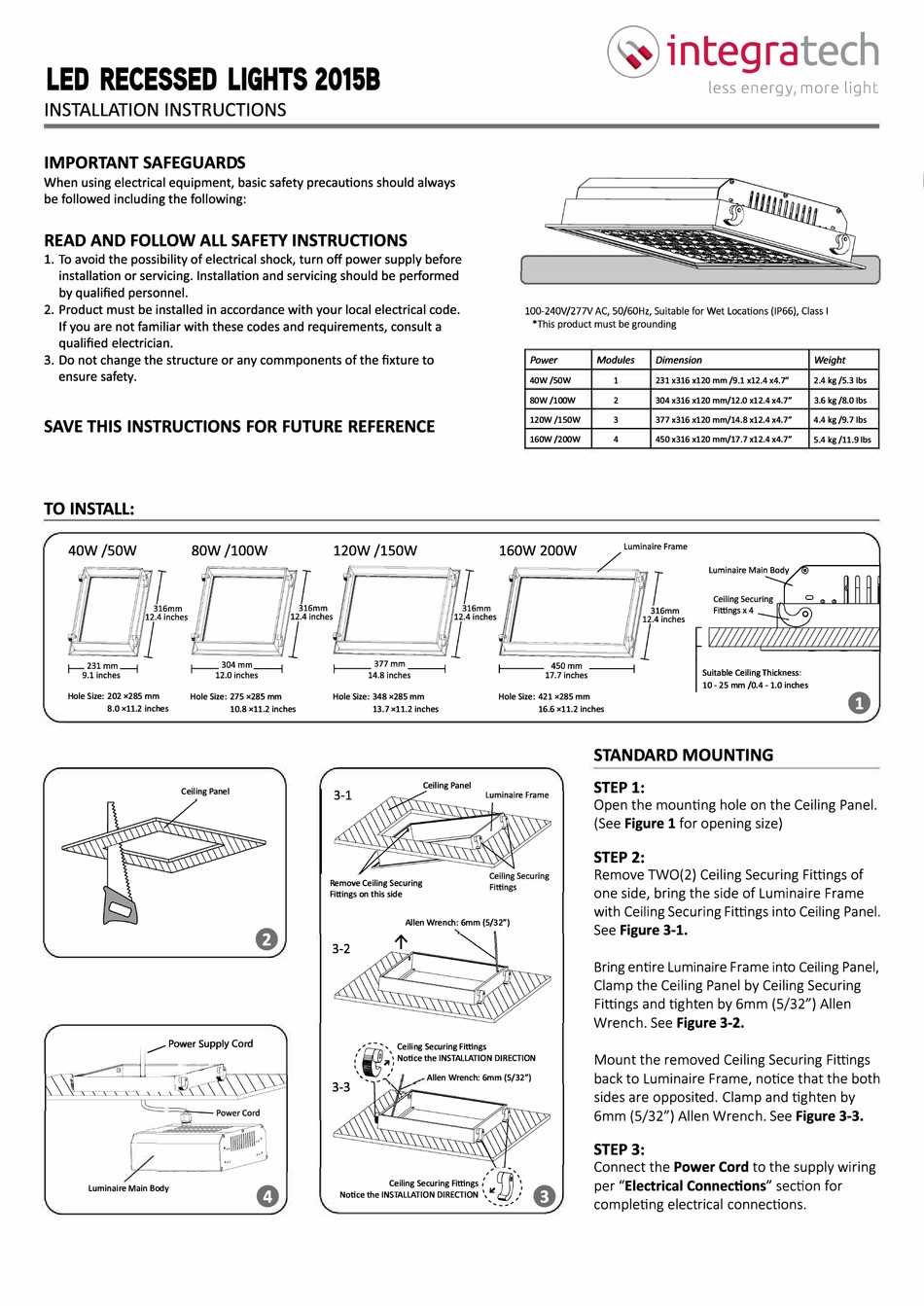

Integratech 2015B Installation Instructions

LED RECESSED LIGHTS 2015B

INSTALLATION INSTRUCTIONS

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always
be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To avoid the possibility of electrical shock, turn off power supply before
installation or servicing. lnstallation and servicing should be performed
by qualified personnel.
2. Product must be installed in accordance with your local electrical code.
lf you are not familiar with these codes and requirements, consult a
qualified electrician.
3. Do not change the structure or any commponents of the fixture to
ensure safety.
SAVE THIS INSTRUCTIONS FOR FUTURE REFERENCE
TO INSTALL:
Hole Size: 202 x285 mm Hole Size: 275 x28S mm
8.0 xll.2 inches
Ceiling Panel
1 1 ,_
Po r
�� : :
: :
� -
� � - ---, -
;.b )
I l
r
luminaire Main Body
Hole Size: 348 x285 mm
10.8 xll.2 inches 13. 7 xll.2 inches
Remove Ceiling Securing
Fittings on this side
f.)
'., '
,. - � ... , Ceiling Securing Fittings
I Cord ,
: filjJ ,,'.
:
'' _ /
..
3-3
Ceiling Securing Fittings,,
0
Notice the INSTALLATION DIRECTION
100-240V/277V AC, 50/60Hz, Suitable for Wet Locations (IP66), Class 1
*This product must be grounding
Power
40W /50W
80W /lOOW
120W /150W
160W /200W
Hole Size: 421 x285 mm
16.6 xll.2 inches
Ceiling Panel
Allen Wrench: 6mm (5/32")
Notice the INSTALLATION DIRECTION
Allen Wrench: 6mm (5/32")
,
,, qi'\
0
\. ltt
b!),,.
.. _ .....
Modules Dimension
1 231 x316 x120 mm /9.1 x12.4 x4.7"
2 304 x316 x120 mm/12.0 xl2.4 x4.7"
3 377 x316 x120 mm/14.8 x12.4 x4.7"
4 450 x316 x120 mm/17.7 xl2.4 x4.7"
� >•�"'• �'"� Th,a,=
1
10- 25 mm /0.4- 1.0 inches
STANDARD MOUNTING
STEP 1:
Open the mounting hole on the Ceiling Panel.
(See Figure 1 for opening size)
STEP 2:
Remove TW0{2) Ceiling Securing Fittings of
one side, bring the side of Luminaire Frame
with Ceiling Securing Fittings into Ceiling Panel.
See Figure 3-1.
Bring entire Luminaire Frame into Ceiling Panel,
Clamp the Ceiling Panel by Ceiling Securing
Fittings and tighten by 6mm {5/32") Allen
Wrench. See Figure 3-2.
Mount the removed Ceiling Securing Fittings
back to Luminaire Frame, notice that the bath
sides are opposited. Clamp and tighten by
6mm {5/32") Allen Wrench. See Figure 3-3.
STEP 3:
Connect the Power Cord to the supply wiring
per "Electrical Connections" section for
completing electrical connections .
Weight
2.4 kg /5.3 Ibs
3.6 kg /8.0 Ibs
4.4 kg /9.7 Ibs
5.4 kg /11.9 Ibs
0
