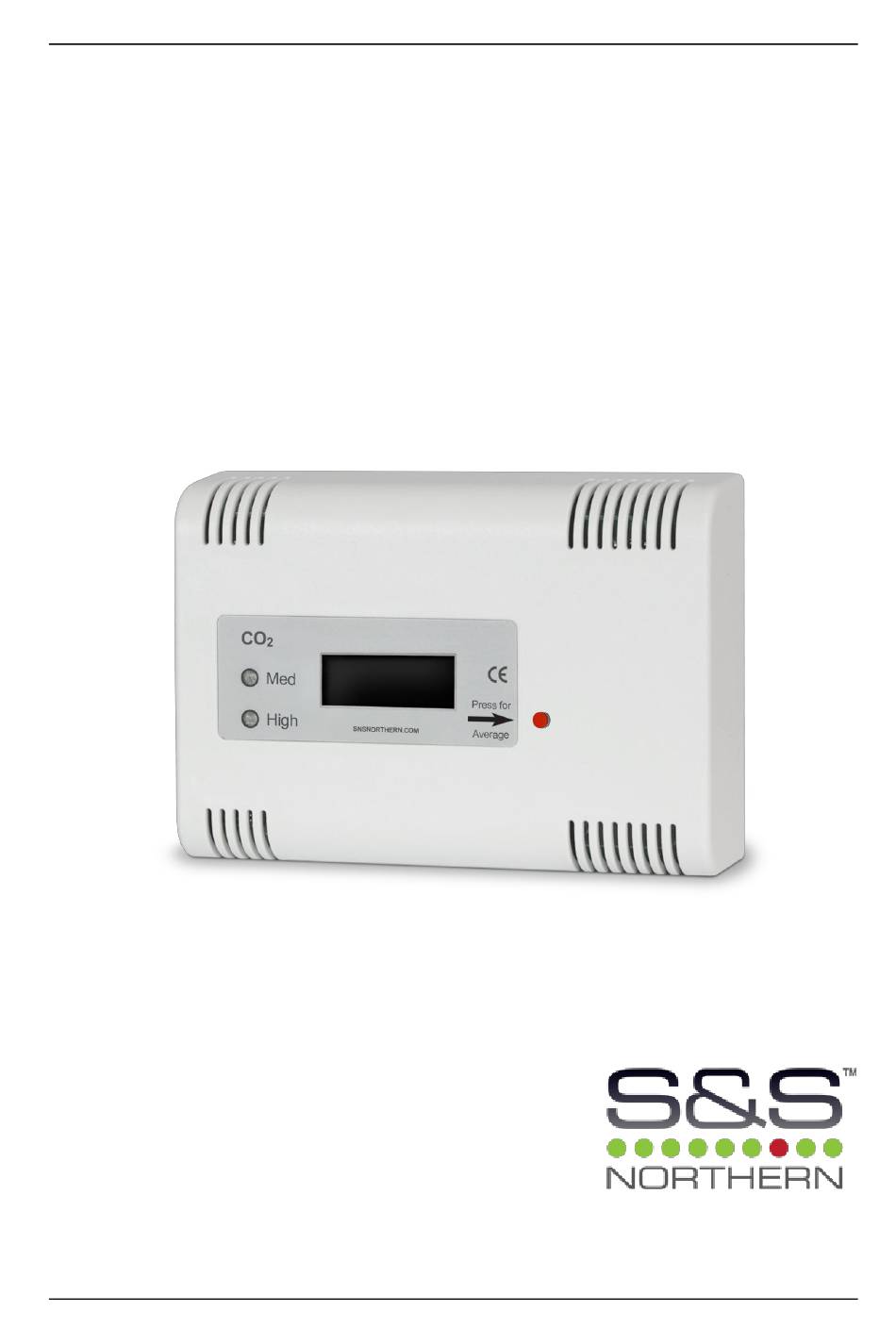

- Page 1 Merlin CO2 Monitor Product Data Sheet Gas Safety Products Merlin CO2 AVG Monitor Read these instructions carefully before operating or servicing. Installation, operating and maintenance S&S Northern Ltd...
- Page 2 Merlin CO2 Monitor Product Data Sheet The unit should be installed by a competent person only. The expected life time of the detector/sensor element is: 10 Years The unit should be stored in cool, dry conditions. We do recommend that this product is serviced annually. If the unit is found to be damaged –...
-
Page 3: General Information
When the countdown is complete, the LCD screen will show CO2 levels in the room. 2. To turn off the Merlin CO2 AVG monitor you need to turn the power supply to the panel off or disconnect the fuse spur. - Page 4 Product Data Sheet Explanation of CO2 Average Button Facility By using the average push button located on the front fascia of the Merlin CO2 AVG, the user is able to navigate through four different display screens showing the following statistics:...
- Page 5 Merlin CO2 Monitor Product Data Sheet Merlin CO2 Wiring Diagram Mains Input 230V, L & N 2. Alarm relay, volt free connection 3. Pre alarm relay, volt free connection 4. 0-10v output. S&S Northern Ltd...
- Page 6 Merlin CO2 Monitor Product Data Sheet CONTACT US: S&S Northern Head Office Tel: +44(0) 1257 470 983 Fax: +44(0) 1257 471 937 www.snsnorthern.com info@snsnorthern.com South East Division Tel: +44(0) 1702 291 725 Fax: +44(0) 1702 299 148 south@snsnorthern.com Date Author 29/11/2017 S&S Northern is the owner of this document and reserves all rights of modification without prior notice.
