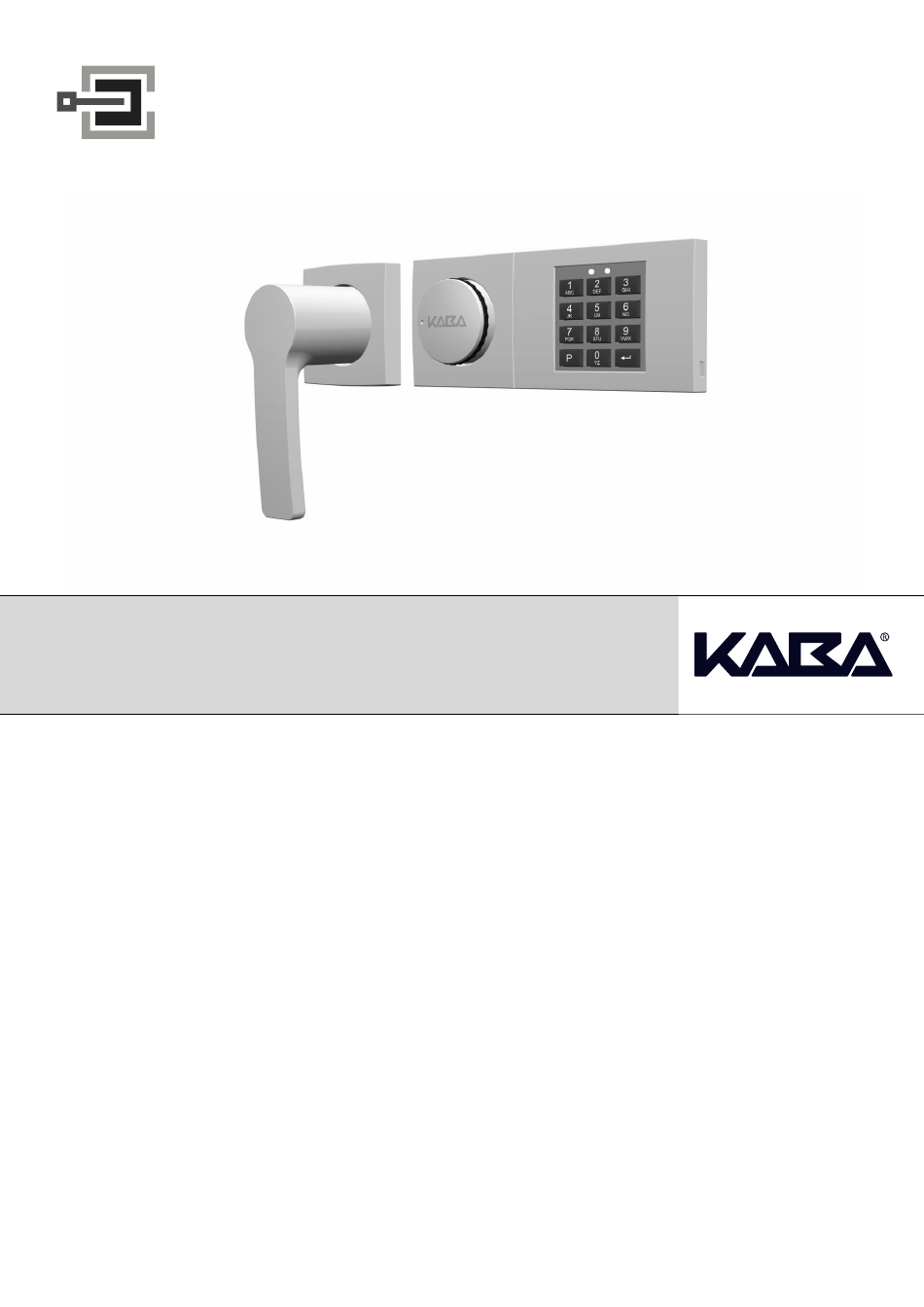

Kaba Mauer Combi B 30 Series Mounting Instructions

With metal input unit
Table of Contents

Advertisement

Quick Links

CLAVIS Deutschland GmbH
Schillerstraße 47-51
34117 Kassel
Combi B 30
with metal input unit
Mounting instructions
EN
Telefon:
+49 (0)561 988 499-0
Fax:
+49 (0)561 988 499-99
E-Mail:
info@tresore.eu
Internet:
www.tresore.eu
www.tresorschloss.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Combi B 30 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Kaba Mauer Combi B 30 Series

  • Page 1 CLAVIS Deutschland GmbH Telefon: +49 (0)561 988 499-0 Schillerstraße 47-51 Fax: +49 (0)561 988 499-99 34117 Kassel E-Mail: info@tresore.eu Internet: www.tresore.eu www.tresorschloss.de Combi B 30 with metal input unit Mounting instructions...
  • Page 2: Table Of Contents

    Mounting instructions 82132/3xxx CB 30 Table of Contents Notes ................................. 24 Technical data ..............................24 10.1 Power supply ................................24 10.2 Lock .................................... 24 10.3 Lock interfaces ................................25 10.4 Interfaces of the input unit ............................26 Scope of delivery ............................. 27 Mounting preparation ............................
  • Page 3 Mounting instructions 82132/3xxx CB 30 List of Figures Figure 25: Lock connectors................................25 Figure 26: Input unit connection ..............................26 Figure 27: Exploded view of the locking system ........................... 27 Figure 28: Mounting hole pattern for lock; dimensions for lock housing ..................28 Figure 29: Key guide 86101 ................................
  • Page 4: Notes

    9V power supply unit (item no. 3002501220) directly to the "power" connection socket of the lock. Notice: It is strongly recommended to use the original Kaba Mauer power supply unit (article numbers see above), otherwise the correct function of the lock system cannot be ensured.
  • Page 5: Lock Interfaces

    Figure 25: Lock connectors Pin 1 Assignment of the connectors only possible with Kaba Mauer alarm box Power supply for lock and alarm box via the alarm box: when connected to signaling equipment without power supply option by means of an additional 12V power supply unit (item no.
  • Page 6: Interfaces Of The Input Unit

    I/O mini Data interface to PC Connects the input unit to the PC by means of the As pre-assigned internally. Kaba Mauer CB30 PC cable, in order to read the Notice: Special connector audit or configure the lock interface, use only...
  • Page 7: Scope Of Delivery

    Mounting instructions 82132/3xxx CB 30 Scope of delivery Figure 27: Exploded view of the locking system Included in the scope of delivery:  (1) Lock  (2) Drive shaft  (3) O-ring  (4) Inspection key  (5) Allen key ...
  • Page 8: Mounting Preparation

    Mounting instructions 82132/3xxx CB 30 Mounting preparation 12.1 Bores and cabinet cutouts for lock Mounting the lock (no. 1 in Figure 27) requires 4 bores with M6 thread. They must be drilled in accordance with the hole pattern shown in Figure 28. It may be necessary for the hole pattern shown to be rotated according to Table 10 for the desired installation position.
  • Page 9: Figure 29: Key Guide 86101

    For securing the required key cutout in the secure storage unit, it is recommended inserting the Kaba Mauer key guide (see Figure 29) or the Kaba Mauer key carrier guide (see Figure 30). In these cases, taking into consideration DIN 2768-mH, the key in the secure storage unit must be manufactured with the corresponding dimensions.
  • Page 10: Bores And Cabinet Cutouts For Input Unit

    Mounting instructions 82132/3xxx CB 30 12.2 Bores and cabinet cutouts for input unit To install the input unit, first 3 holes with M4 thread must be drilled according to Figure 31 respectively. Two screw connection options have been given. They are shown in Figure 31 as I and II. Depending on the installation position, the keypad has to be rotated according to Table 11, if necessary.
  • Page 11: Drive Shaft

    Mounting instructions 82132/3xxx CB 30 12.3 Drive shaft Depending on the door strength and the installation position, the drive shaft (2) included in the delivery must be adjusted to the required functional length, in order to guarantee proper functioning of the locking system. The required length dimension W is obtained from the distance L between the lock mounting plane and the input unit mounting plane + 20 mm immersion depth into the input unit + 26.5 mm immersion depth into the lock (tolerance +0/-2 mm, see Figure 32).
  • Page 12: Mounting The Locking System

    Mounting instructions 82132/3xxx CB 30 Mounting the locking system Following the mounting preparation, the actual mounting of the lock (1) and of the input unit (8 + 11) can take place. 13.1 Mounting the lock The lock (1) must be mounted in the secure storage unit as follows: The lock (1) must be mounted while locked (with the exception of the bolt).
  • Page 13: Mounting The Input Unit

    Mounting instructions 82132/3xxx CB 30 13.3 Mounting the input unit 13.3.1 Dismounting the input unit The delivered input unit (8 + 11) is pre-mounted ex works. To install the input unit at the secure storage unit, it must first be dismounted: Figure 35: Inserting the Allen wrench Insert Allen wrench (5) as shown in the figure into the small hole in the input...
  • Page 14: Adjusting The Keypad Sub-Assembly

    Mounting instructions 82132/3xxx CB 30 13.3.2 Adjusting the keypad sub-assembly The keypad sub-assembly has been pre-mounted in the top part of the input unit (8) as standard for the installation position rotary handle (7) on the left, keypad on the right. If you want to maintain this installation position, this chapter can be skipped. However, if the input unit is to be mounted in one of the three other installation positions, the removable keypad sub-assembly must be rotated.
  • Page 15: Figure 42: Mounting The Keypad Sub-Assembly

    Mounting instructions 82132/3xxx CB 30 Installation direction of the input unit Rotating the keypad Result Rotary handle on the left, keypad on the right Not required Rotary handle at the top, keypad at the bottom 90° counterclockwise. Rotary handle at the bottom, keypad at the top 90°...
  • Page 16: Mounting The Connecting Cable

    Mounting instructions 82132/3xxx CB 30 13.3.3 Mounting the connecting cable Make sure that the connecting cable (12) does not become damaged during installation, since otherwise there may be a risk of short-circuit, which may damage the locking system. The cable passage hole and other guiding areas of the cable (12) must not exhibit any sharp edges.
  • Page 17: Fastening The Base Part

    Mounting instructions 82132/3xxx CB 30 13.3.4 Fastening the base part The Combi B 30 base part (11) is now screwed onto the storage unit door using the three enclosed screws (9), as shown in Figure 31, (for the drill hole specification, see chapter 12.2). Ensure tidy cable routing: Depending on the position of the cable passage hole, it may be necessary to pass the connecting cable (12) below the base part (11) to the cable passage hole.
  • Page 18: Mounting The Input Unit Top Part

    Mounting instructions 82132/3xxx CB 30 13.3.6 Mounting the input unit top part The top part of the input unit (8) is now mounted on the base part (11) as follows: Figure 45: Inserting the top part Place the top part (8) of the input unit carefully on the base part (11) until the red LED lights up.
  • Page 19: Partial Commissioning / Complete Commissioning

    Mounting instructions 82132/3xxx CB 30 Partial commissioning / Complete commissioning Once the lock has been mounted, partial commissioning (only by means of PC software) or complete commissioning (by means of PC software or via the input unit) can take place. In partial commissioning, the locking system is configured (e.g., setting of silent alarm, double code, code preassignment), but these settings will not become active until the lock is commissioned completely by activating the master code.
  • Page 20: B Notes

    Mounting instructions 82132/3xxx CB 30 Kundendienst CLAVIS Deutschland GmbH Schillerstraße 47-51 34117 Kassel Telefon: +49 (0)561 988 499-0 Fax: +49 (0)561 988 499-99 E-Mail: info@tresore.eu Internet: www.tresore.eu www.tresorschloss.de Version 02/15/2016 Page 40 of 40...

This manual is also suitable for:

82132/3 cb30 series
