ETP-A/ETP-A-B/ETP-A-C
Before use this product, read the instruction manual carefully and use the product safety and correctly
1.Before using
1-1 After opening the package
First, please check the following points.
1) Is the product what you ordered?
2) Is the product damaged during transportation?

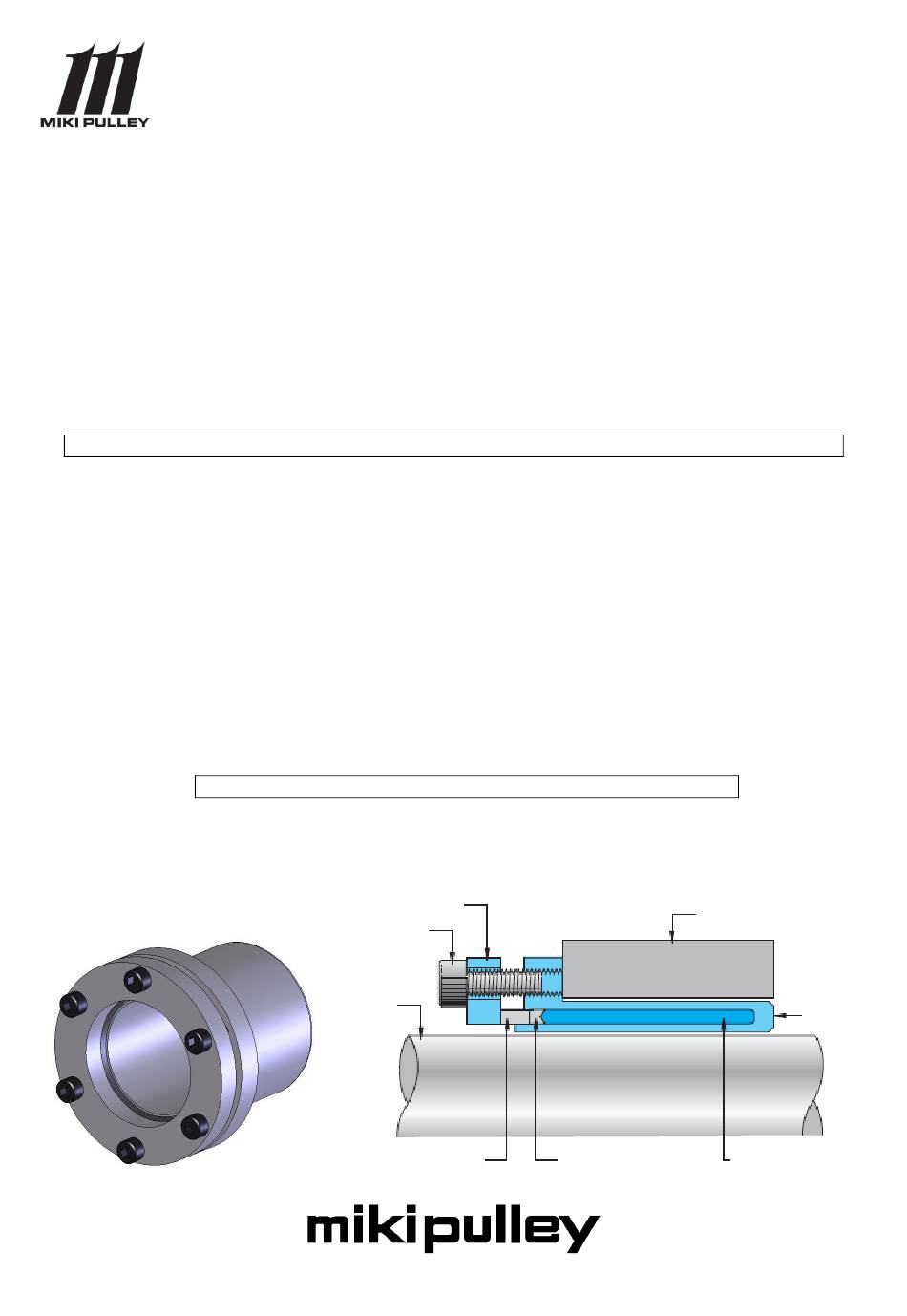

1-2 Structure and Parts
ETP BUSH
ETP-CLASSIC
ETP-A-S/ETP-A-R
Instruction Manual
１．Before using・・・・・・・・・・・・・・・
２．Safety Precautions・・・・・・・・・・・・
３．Installation procedure ・・・・・・・・・・
４．Removal ・・・・・・・・・・・・・・・・・
If any problems are found, please contact your supplier.
Clamping bolt
Shaft
TRS-ETA-005-01 /MD-000074158A
Flange
Piston ring
-1-
P1
P2
P4
P8
Hub
Sealing ring
.
Sleeve
Pressure medium
Advertisement
Table of Contents
Related Manuals for Miki Pulley ETP BUSH
Summary of Contents for Miki Pulley ETP BUSH
- Page 1 TRS-ETA-005-01 /MD-000074158A ETP BUSH ETP-CLASSIC ETP-A/ETP-A-B/ETP-A-C ETP-A-S/ETP-A-R Instruction Manual Before use this product, read the instruction manual carefully and use the product safety and correctly １．Before using・・・・・・・・・・・・・・・ ２．Safety Precautions・・・・・・・・・・・・ ３．Installation procedure ・・・・・・・・・・ ４．Removal ・・・・・・・・・・・・・・・・・ 1.Before using 1-1 After opening the package First, please check the following points.
- Page 2 Always use a calibrated torque wrench and clamp at the tightening torque specified by Miki Pulley. It is very dangerous if the driving part starts by accident while mounting the product.
- Page 3 misalignment." Cautions for maintenance and inspection It is extremely dangerous if the driving part starts operating by accident while dismounting the product. Make sure that the main power of the equipment is off. Cautions for disposal Do not leave the product around where young children may play. CAUTION Structural precautions Do not use the product in an environment where chemicals may spill,...
- Page 4 3.Installation procedure 3-1 Cleaning the shaft and hub Wipe off any rust, dust and oil contents adhering to the surface of the shaft and hub with cloth. If any grease is attached, remove the grease completely. Meanwhile, the oil content attached on the surface of the ETP-CLASSIC should be also removed.
- Page 5 ETP-A Bolt tightening torque ETP-A-B Bolt [N・m] ETP-A-C ETP-A-S 3－M5×10 3－M5×12 19-20 4－M5×12 22-30 4－M5×14 6－M5×14 35-38 6－M5×16 40-48 6－M6×18 8－M6×18 8－M6×20 60-65 6－M8×20 6－M8×22 75-80 8－M8×25 90-100 Bolt tightening torque ETP-A-R Bolt [N・m] 4－M5×10 5－M5×12 7－M5×12 25-30 9－M5×14 9－M5×16 9－M6×16 9－M6×18...
- Page 6 3-4 Confirming after mounting Confirm if the gap between the flange and sleeve is even. If there is not enough gap between the flange and sleeve, the ETP-CLASSIC may not function properly. In that case, reconfirm the measurement tolerance and material of the shaft and hub. 3-5 Points to be checked ■Operating temperature limit Operating Temp.
- Page 7 ■ Keyway shape that may become unable to disconnect by the sleeve deformation case there is a keyway in the shaft and hub as illustrated above, ETP-CLASSIC cannot be used. However, ETP-CLASSIC can be used if the keyway is completely filled, and formed with epoxy putty (Recommendation: Bond-all AB).
- Page 8 Please contact us using the inquiry form and be aware that support for inquiries received on Saturdays, Sundays, holidays, New Year's, and summer business holidays will be provided on the next business day. Contact by phone Japanese/English Miki Pulley International Business Department TEL +81-46-257-5109...
