Summary of Contents for Brandt BPV6421B

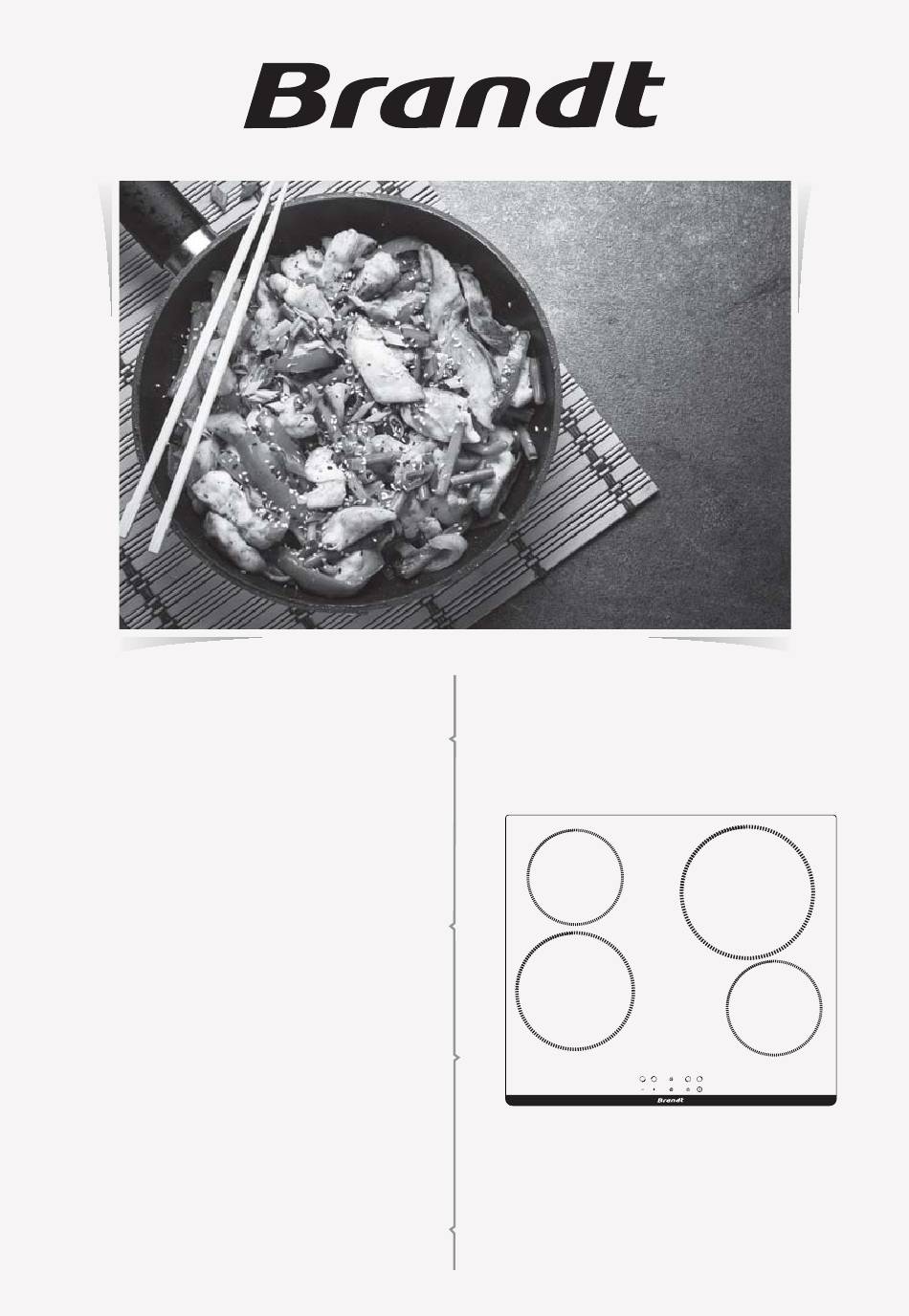

- Page 1 EN - USER GUIDE BRANDT CERAMIC COOKTOP 60CM 320111/BPV6421B...
- Page 2 BRANDT is happy to suppo rt yo u daily and ho pes yo u will enjo y yo ur purchase to the full.
-
Page 8: Working Principle
2.3 Working Principle This ceramic cooker hob directly employs resistance wire heating, and adjust the output power by the power regulation with the touch controls or knob controls. Before using your New Ceramic Hob Read this guide, taking special note of the 'Safety Warnings' section. Remove any protective film that may still be on your ceramic hob. -
Page 9: Operation Of Product
Operation of Product 3.1 Touch Controls The controls respond to touch, so you don't need to apply any pressure. Use the ball of your finger, not its tip. You will hear a beep each time a touch is activated. Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. -
Page 10: Start Cooking
How to use BPV6421B 3.3.1 Start cooking After power on, the buzzer beeps once, all the indicators light up for 20 seconds and then go out, the ceramic hob is now in standby mode. Touch the ON/OFF control for 3 seconds. All the indicators flash "... -
Page 11: Using The Double Zone Function
Turn the whole cooktop off by touching and holding the ON/OFF control for 3 seconds. 3.3.3 Using the Double zone function (only for BPV6421B) • • The function only work in 4# cooking zone • The Double cooking zone has two cooking areas that you can use: a central section and an outer section. You... - Page 12 Activate the Double zone Adjust the heating setting between power levels 1 and g (e.g. 6). Central section of the Double cooking zone will switch on. Touching the Double zone control"@" once, the outer section works. The cooking zone indicator shows " = "and " "alternately.
-
Page 13: Timer Control
3.3.6 Timer control a) You can set a timer for one or more cooking zones. After the elapsed time you have set is up, the cooking zone will turn off automatically. b) You can also use the timer function as a minute minder. In this case, the independent timer will not turn any cooking zone off after the set time is up. -
Page 14: Over Temperature Protection
b) Setting the independent timer Touch the timer control. Set the time by touching the "-" or"+" control. Touch the timer control again to confirm your timer-setting, or wait for 5 seconds until it confirms automatically. c:::> � When the time is set, it will begin to count down immediately. The display will show the remaining time. -
Page 15: Cooking Guidelines
& Beware of hot surfaces When the glass plate is hot, the hot hob warning indicator will light. Don't touch the glass plate until the indicator goes out. It can also be used as an energy saving function if you want to heat further pans, use the hotplate while it is still hot. -
Page 16: Heat Settings
Heat Settings The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the Ceramic hob to find the settings that best suit you. Heat setting Suitability •... -
Page 17: Hints And Tips
Boilovers, melts, and Remove these immediately with a • Remove stains left by melts and hot sugary spills on fish slice, palette knife or razor blade sugary food or spillovers as soon the glass scraper suitable for Ceramic glass as possible. If left to cool on the cooktops, but beware of hot cooking glass, they may be difficult to zone surfaces:... -
Page 18: Selection Of Installation Equipment
Installation Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. - Page 19 230V~ 230V~ EN-24...
- Page 20 A – One monophased line 220-240V ~50Hz Ph+N 32A B – Two monophased lines 220-240V ~50Hz separated Ph+N 16A (2x) C – One triphased line 230-400V ~50Hz 3Ph+N 32A (use of 2 phases only) EN-25...
