Bluedri BD PRO-33 Use And Care Manual

Air mover high velocity fan, 1/3 hp
Hide thumbs
Table of Contents

Advertisement

Quick Links

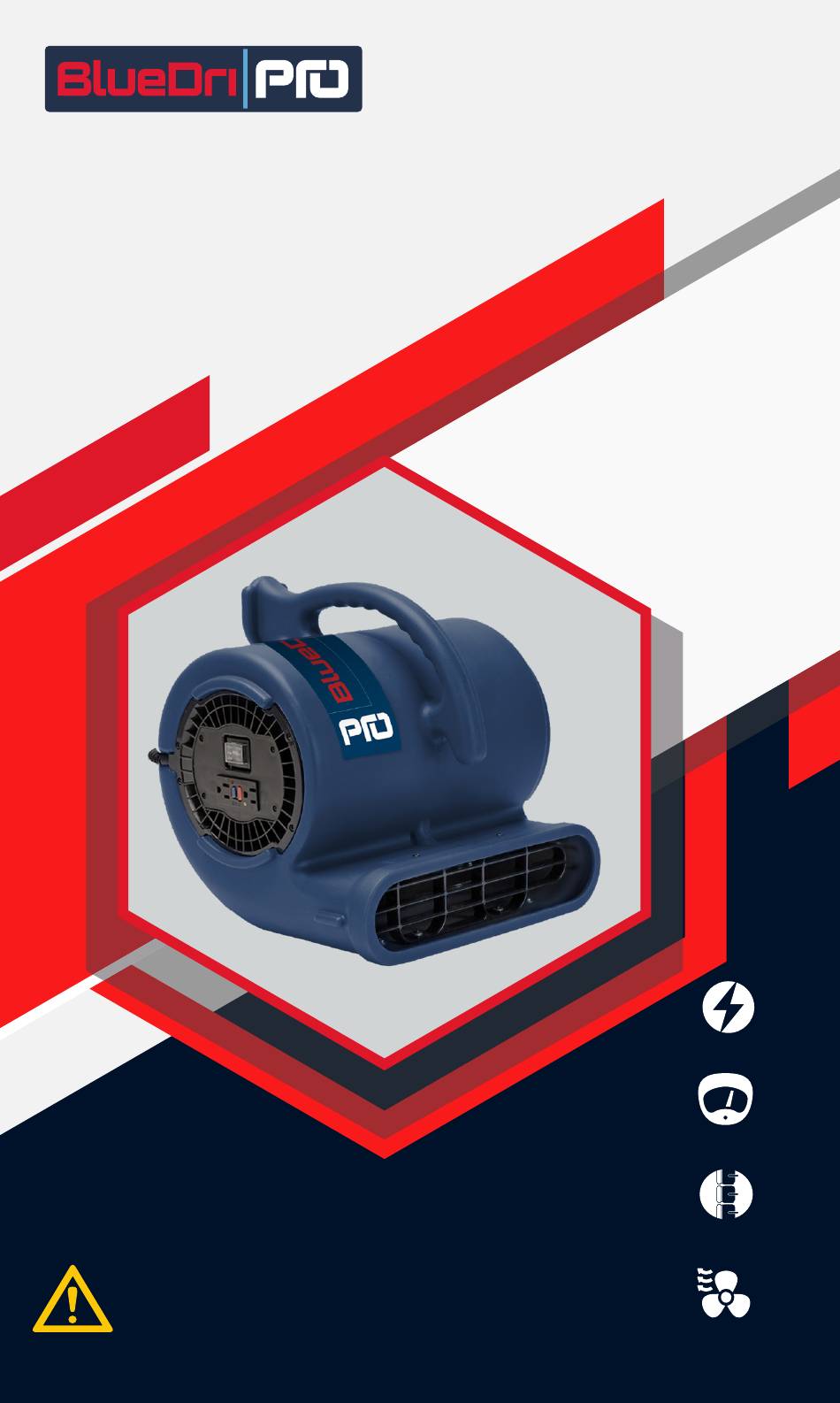

BD PRO-33
1/3 HP
Please READ and UNDERSTAND this MANUAL
carefully before using the product in order to REDUCE
the RISK of INJURY. SAVE this manual for instructions.
AIR MOVER
HIGH VELOCITY FAN
OPERATION
SAFETY
SERVICE
WARRANTY
CONTACT
SPECIFICATIONS
TROUBLESHOOTING
LOW AMPS
2 SPEEDS
STACKABLE
POWERFUL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BD PRO-33 and is the answer not in the manual?

Questions and answers

Related Manuals for Bluedri BD PRO-33

Summary of Contents for Bluedri BD PRO-33

  • Page 1 AIR MOVER HIGH VELOCITY FAN BD PRO-33 1/3 HP OPERATION SAFETY SERVICE WARRANTY CONTACT SPECIFICATIONS TROUBLESHOOTING LOW AMPS 2 SPEEDS STACKABLE Please READ and UNDERSTAND this MANUAL carefully before using the product in order to REDUCE the RISK of INJURY. SAVE this manual for instructions.

  • Page 2: Table Of Contents

    BLUEDRIPRO.COM Table Of Contents Important Safety Instructions Motor Specifications & Electrical Requirements Grounding Instructions Introduction Product Features Unpacking & Checking Of Contents Operating Instructions Maintenance Cleaning User Servicing Instructions Lubrication Storage & Transportation Servicing Limited Warranty Parts List Specifications Troubleshooting Warranty Registration...

  • Page 3: Important Safety Instructions

    ATTENTION! Read all safety rules carefully before attempting to operate the BD PRO-33. Please retain this manual for future reference. NEVER operate this unit when flammable materials or vapors are present – electrical devices produce arcs or sparks which may cause a fire or an explosion.

  • Page 4: Motor Specifications & Electrical Requirements

    BLUEDRIPRO.COM Motor Specifications & Electrical Requirements This BD PRO-33 has a 2-speed, 115-volt, 60 Hz induction motor with a grounding conductor. Ther- mally protected, it will automatically shut down if overheated. The motor will restart automatically once cooled, for as long as it is plugged into a power source.

  • Page 5: Introduction

    The BD PRO-33 uses only 2.9 amps and an on-board GFCI outlet, allow- ing up to 4 units to be daisy chained to a single standard 15-amp household circuit.

  • Page 6: Unpacking & Checking Of Contents

    BLUEDRIPRO.COM Unpacking & Checking Of Contents Unpack your BD PRO-33 carefully and inspect if all parts are intact. If any of the parts are missing or damaged, please call 844-240-0444 or email info@bluedripro.com. Operating Instructions This BD PRO-33 requires NO ASSEMBLY. The BD PRO-33 is packaged and ready to be put to work.

  • Page 7: Lubrication

    3. If you have more than one unit, store units by stacking. Do not stack more than 5 units high. 4. Never operate unit while on its side or while stacked. 5. THE BD PRO-33 SHOULD BE STORED INDOORS. CAUTION: Do not operate this air mover while stacked on top of each other.

  • Page 8: Parts List

    BLUEDRIPRO.COM B-AIR.COM Parts List 1. Housing -------------------------- ------------- X1 2. Motor -------------------------- ------------- X1 3. Capacitor ------------------------ ------------- X1 4. Fan ------------------------------ ------------- X1 5. Air Intake Grill (M) --------------- ------------- X1 6. Switch Cover -------------------- ------------- X1 7. Air Intake Grill (F)------------------ ------------- X1 8.

  • Page 9: Specifications

    BLUEDRIPRO.COM SPECIFICATIONS Motor 1/3 HP Amps L 2.6 / H 2.9 AMPS Built in Power Outlet 9 AMPS Speeds 2 / Positions 3, 0º, 45º, 90º Certification C-ETL-US Daisy Chain Yes / Stackable 5 units Voltage 115V Cycle 60Hz Max Static Pressure 1.7” Weight Net 21 Lbs (24 Lbs with box) Size (LxWxH) 16”x 14.5”x 15.5”...

  • Page 10: Troubleshooting

    BLUEDRIPRO.COM TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Unit Not Running a) Switch is OFF a) Turn Switch On b) No Power b) Plug Unit In; Check Circuit Breaker c) Bad Outlet c) Check Outlet/Change To Another Outlet d) Faulty Switch d) Replace Switch* e) Faulty or Broken e) Use Volt/Amp Meter Motor Wire or Cord...

  • Page 11: Warranty Registration

    BLUEDRIPRO.COM Thank you for your purchase. Warranty Registration ONLINE Please fill out and submit your warranty form at: www.bluedripro.com/register BY MAIL Please complete, mail or fax your product registration card. For multiple units, please list serial numbers on a seperate sheet. This warranty card and your bill of sale must be presented for warranty service.
  • Page 12 BLUEDRIPRO.COM 550 S Ayon Ave Azusa, CA 91702 844-240-0444 Email: info@bluedripro.com Website: www.bluedripro.com SENDER AFFIX ADRESS STAMP HERE HERE MAIL TO BLUE DRI PRO WARRANTY REGISTRATION 550 South Ayon Ave AZUSA, CA 91702...
