Telegärtner DoorLine Slim DECT Operating And Assembly Instructions Manual

Door intercom system
Table of Contents

Advertisement

Quick Links

Operating and Assembly Instructions
Door Intercom System
DoorLine Slim DECT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DoorLine Slim DECT and is the answer not in the manual?

Questions and answers

Summary of Contents for Telegärtner DoorLine Slim DECT

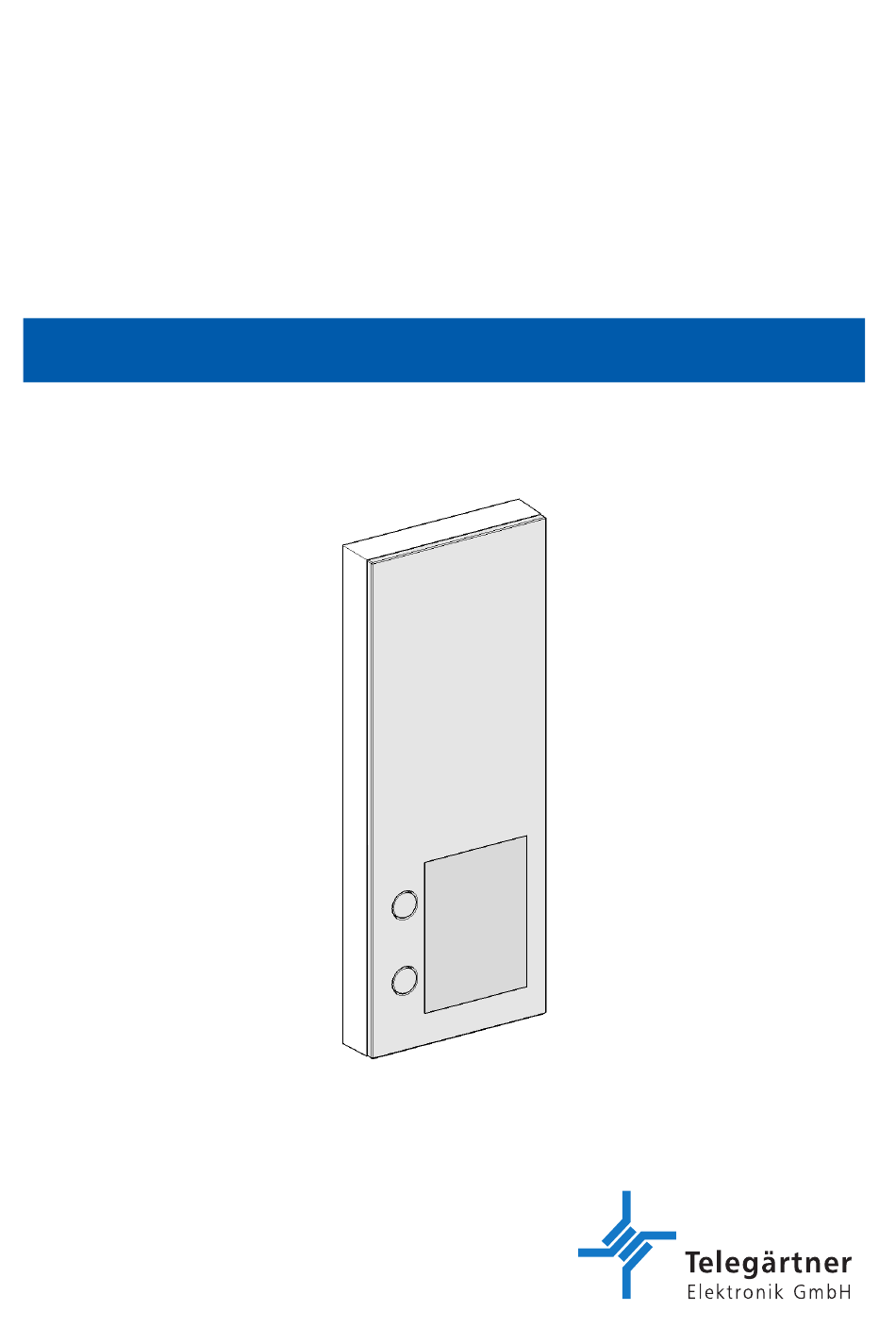

  • Page 1 Operating and Assembly Instructions Door Intercom System DoorLine Slim DECT...
  • Page 2: Copyright

    Preface Preface Congratulations for purchasing the DoorLine Slim DECT from Telegärtner. Read through these Operating Instructions carefully and attentively. They con- tain important information for your safety and valuable tips and additional ap- plication options of the device. The information on usage and care should guarantee that you have many years of satisfaction with our product.
  • Page 3: Table Of Contents

    Labelling bell pushbuttons .............. 22 5 Configuration....................... 24 Factory settings.................. 24 Restoring factory settings ...............  24 Acknowledgement tones...............  25 Saving and ending configuration............ 25 Entry to configuration mode .............. 25 Defining microphone sensitivity and volume ........ 26 DoorLine Slim DECT 3 / 56...
  • Page 4 Receiving a door call ................ 47 Opening a door.................. 48 Calling the DoorLine................ 49 Activating / deactivating call forwarding to absence number .. 50 Direct commands during voice communication ........  52 9 Malfunctions and fault elimination.............. 53 4 / 56 DoorLine Slim DECT...
  • Page 5 10 Maintenance, care and disposal.............. 54 10.1 Cleaning.................... 54 10.2 Storage .....................  54 10.3 Disassembly .....................  54 10.4 Disposal .................... 54 10.4.1 Disposing of packaging material ............ 54 10.4.2 Disposing of old device ................ 54 DoorLine Slim DECT 5 / 56...
  • Page 6: Safety Instructions

    Route connecting lines and cables such that there is no risk of accidents! ▪ The DoorLine Slim DECT contains a radio module based on the DECT stand- ard. The operation of medical devices may be impaired. Note the tech- nical conditions of the respective environment, e.g. medical practice.
  • Page 7: Product Information And Description

    Product information and description Product information and description Fig. 1: Item Description Bell pushbutton 1 (capacitance) Bell pushbutton 2 (capacitance) Brightness sensor Microphone Labelling panel Loudspeaker (not visible) DoorLine Slim DECT 7 / 56...
  • Page 8: Model Variants

    Product information and description Model variants DoorLine Slim DECT Surface Glass Colour/Article number white 150720 black 150730 Nameplate The nameplate contains the serial number, product coding and information on the device type. 8 / 56 DoorLine Slim DECT...
  • Page 9: Specified Use

    As far as insurance is concerned, a door that is held closed only by the use of the door opener is not regarded as locked! DoorLine Slim DECT 9 / 56...
  • Page 10: Technical Prerequisites

    Cable length for power supply max. 10 m Current consumption Standby 1 W Call state max. 3.5 W Degree of protection IP54 (in installed state) Operating temperature -20 °C to +60 °C Weight 500 g Dimensions Mounting plate 176x79 mm Device 220x85x21 mm 10 / 56 DoorLine Slim DECT...
  • Page 11: Accessories

    Surface mounting or assembly on carrier rail (DIN rail) – 4 PBX system connectable (only in conjunction with DoorLine Slim and DoorLine Pro Exclusive) – Extends the DoorLine Slim DECT by three further relay contacts DoorLine Slim DECT 11 / 56...
  • Page 12: Assembly And Connection

    In this manner, you can install the wiring and configure the bell pushbutton quickly and easily. After the DoorLine functions perfectly in this test setup with your TC system and telephones, you can install the DoorLine in its final place of usage. 12 / 56 DoorLine Slim DECT...
  • Page 13: Place Of Installation

    Installing device The device is installed on a standard in-wall socket or a corresponding cavity be means of the enclosed mounting plate and fastening material. 4.5.1 Installing mounting plate on the wall Fig. 2: DoorLine Slim DECT 13 / 56...
  • Page 14: Installing Device On Mounting Plate

    4. Secure the device with the hexagon socket-grub screw (3) on the mounting plate. Caution: Only tighten the screw lightly because otherwise the thread can be damaged. 14 / 56 DoorLine Slim DECT...
  • Page 15: Connecting Device

    Both switching relays can be loaded to a max. of 24 V AC / DC 1 A. Prior to initial operation of the device, ensure that these values are not exceeded by your door opener, door bell or other devices to be connected. Observe the Operating Instructions of the respective products. DoorLine Slim DECT 15 / 56...
  • Page 16: Wiring

    38 m 17 m ternal bell transformer to door opener (max- 16 V 76 m 34 m imum current consumption 1A alternating 20 V 115 m 51 m voltage) 24 V 177 m 78 m 16 / 56 DoorLine Slim DECT...
  • Page 17: Terminal Assignment

    View of terminals Supply voltage +12 V SwitchBox data Supply voltage GND SwitchBox - Relay contact 2 SwitchBox + potential-free Relay contact 2 not assigned potential-free Relay contact 1 not assigned potential-free Relay contact 1 potential-free DoorLine Slim DECT 17 / 56...
  • Page 18: Wiring Diagram

    Assembly and connection 4.6.4 Wiring diagram Fig. 4: Item Description DoorLine (rear side) Wall power supply DECT-compatible PBX system SwitchBox Relay contact 2 Relay contact 1 18 / 56 DoorLine Slim DECT...
  • Page 19: Connection Example For A Door Opener And A Door Bell

    Assembly and connection 4.6.5 Connection example for a door opener and a door bell Item Description DoorLine (rear side) Wall power supply Door bell to relay contact 1 Door opener to relay contact 2 Bell transformer DoorLine Slim DECT 19 / 56...
  • Page 20: Doorline Registration

    DoorLine can now be reached and can call under this call number. ð If registration is unsuccessful, a negative acknowledgement tone sounds (eight short beeps in succession). Registration could not be carried out successfully and has to be restarted. 20 / 56 DoorLine Slim DECT...
  • Page 21: Checking Connection

    DoorLine does not react to external calls. 4.6.8 Check of DECT signal strength After the voltage supply is applied, the background lighting flashes for the first 60 seconds to indicating the DECT signal strength. DoorLine Slim DECT 21 / 56...
  • Page 22: Labelling Bell Pushbuttons

    No connection to the PBX system or not registered No flashing Signal present but too weak for reliable operation Continuous flashing is always displayed in addition if the DoorLine has not con- nection to the PBX system. Labelling bell pushbuttons 22 / 56 DoorLine Slim DECT...
  • Page 23 Paper size: 50x69.5 mm Fig. 5: You can find our Label Assistant on our home page under the Product description of the device. It helps you with simple and professional la- belling of the insertion label. DoorLine Slim DECT 23 / 56...
  • Page 24: Configuration

    A melody rings out. After approx. 3 seconds you hear the positive acknowledgement tone. The device is now in delivery status. Note: When restoring the factory settings of the DoorLine, the registered PBX system is not deleted! 24 / 56 DoorLine Slim DECT...
  • Page 25: Acknowledgement Tones

    If the programming is rejected by the device (negative acknowledgement tone), you will have to repeat the incorrect programming step. ▪ If you entered the wrong PIN three times in succession, the connection is dis- connected. DoorLine Slim DECT 25 / 56...
  • Page 26: Defining Microphone Sensitivity And Volume

    The following code numbers are possible: Code number 2 reduces the microphone sensitivity Code number 3 increases the microphone sensitivity Code number 5 reduces the loudspeaker sensitivity Code number 6 increases the loudspeaker sensitivity 26 / 56 DoorLine Slim DECT...
  • Page 27: Change The Pin Code

    DoorLine until the end of the complete procedure. Changes to the configuration are only possible with knowledge of your PIN Code. For security reasons, enter your new PIN Code in the config- uration table (see Overview of configuration commands [} 44]). DoorLine Slim DECT 27 / 56...
  • Page 28: Call Numbers For Bell Pushbuttons

    Configuration of call number 2 for bell pushbutton 1 Configuration of call number 1 for bell pushbutton 2 Configuration of call number 2 for bell pushbutton 2 28 / 56 DoorLine Slim DECT...
  • Page 29: Deleting Call Numbers

    Deletion of call number 2 for bell pushbutton 1 Deletion of call number 1 for bell pushbutton 2 Deletion of call number 2 for bell pushbutton 2 DoorLine Slim DECT 29 / 56...
  • Page 30: Enabling Door Opener Function

    Possible values: 1 to 9 seconds or deactivate with 0 Delivery status: 3 seconds With door opening with redial #9 If relay contact 2 was defined as door opener if a contact of a SwitchBox was defined as door opener with redial #9. 30 / 56 DoorLine Slim DECT...
  • Page 31 As confirmation, you will hear a neutral acknowledgement tone Define the switching time of the door opener by entering the digits 1 to 9 (digit corresponds to the duration in seconds, 0=deactivated) Finally, you will hear the positive acknowledgement tone DoorLine Slim DECT 31 / 56...
  • Page 32: Defining Call Duration

    As confirmation, you will hear a neutral acknowledgement tone Define the call duration by entering the digits 1 to 9 (digit corresponds to the duration in minutes, 0=without limita- tion) Finally, you will hear the positive acknowledgement tone 32 / 56 DoorLine Slim DECT...
  • Page 33: Defining Call Duration To Extension Line

    The input must have two digits Finally, you will hear the positive acknowledgement tone 5.13 Call mode Call mode determines the way the DoorLine Slim DECT sets up a call to the re- mote station. 5.13.1 Mute connection setup with call reception by button redial The loudspeaker of the DoorLine is switched to mute during the complete call setup.
  • Page 34: 5.13.2 Connection Setup With Tone Output

    Enter the configuration mode (see chapter Entry to con- figuration mode [} 25]) Actuate the hashtag button and star button on the tele- phone Enter configuration command "72" at the telephone You will hear the positive acknowledgement tone 34 / 56 DoorLine Slim DECT...
  • Page 35: Defining Absence Numbers

    "52" at the telephone Neutral acknowledgement tone Enter target call number (max. 20 digits). If no input is made for 5 seconds, you will hear the positive acknowledgement tone and the call number will be saved DoorLine Slim DECT 35 / 56...
  • Page 36: 5.14.2 Deleting Call Numbers For Call Forwarding

    Each contact can be assigned to one or both bell pushbuttons. The relay contact is connected when a bell pushbutton is pressed. The contact remains connected as long as the bell pushbutton is pressed. 36 / 56 DoorLine Slim DECT...
  • Page 37: Configuration Of Relay Contact 1

    Example: You wish to assign relay contact 1 to bell pushbutton 2 to actuate a door gong. After entry to the configuration mode, enter the following in the configuration for this purpose: #à61 ⇒ wait for neutral tone ⇒ 2 ⇒ positive acknowledgement tone sounds. DoorLine Slim DECT 37 / 56...
  • Page 38: Configuration Of Relay Contact 2

    You will hear the positive acknowledgement tone as con- firmation Switching Bell push- Bell push- Redial Comments command button button Relay contact 2 connects with redial of #9 during voice com- munication. Factory setting. 38 / 56 DoorLine Slim DECT...
  • Page 39: Configuration Of Switchbox

    Enter the configuration mode (see Entry to configuration mode [} 25]) Actuate the hashtag button and star button on the tele- phone Enter configuration command "02" at the telephone As confirmation, you will hear a neutral acknowledgement tone DoorLine Slim DECT 39 / 56...
  • Page 40: Configuring Switchbox Relay Contacts

    Each contact can be assigned to one or both bell pushbuttons. The relay contact is connected when a bell pushbutton is pressed. The contact remains connected as long as the bell pushbutton is pressed. 40 / 56 DoorLine Slim DECT...
  • Page 41: Configuring Switchbox Relay Contact 1

    Bell push- Bell push- Redial Comments command button button #8/9 Relay contact 1 connects with redial of #9 during voice communication. Factory set- ting. Relay contact 1 connects with redial of #8 during voice communication. DoorLine Slim DECT 41 / 56...
  • Page 42: Configuring Switchbox Relay Contact 2

    Bell push- Redial Comments command button button #8/9 Relay contact 2 connects with redial of #9 during voice com- munication. Factory setting. Relay contact 2 connects with redial of #8 during voice com- munication. 42 / 56 DoorLine Slim DECT...
  • Page 43: Configuring Switchbox Relay Contact 3

    Bell push- Redial Comments command button button #8/9 Relay contact 3 connects with redial of #9 during voice com- munication. Factory setting. Relay contact 3 connects with redial of #8 during voice com- munication. DoorLine Slim DECT 43 / 56...
  • Page 44: Overview Of Programming Table

    Call duration to extension line: 01-99 seconds (double-digit entry) Factory setting: 30 seconds #à11 <Call number> Call number to be called from bell pushbutton 1 #à12 <Call number> Alternative number to be called from bell pushbutton 1 44 / 56 DoorLine Slim DECT...
  • Page 45 3. See Configuring SwitchBox re- lay contacts [} 40] #à70 Call reception by pushbutton (factory setting) #à71 Call reception by direct oper- ation #à72 Definition of call mode #à88 <PIN><PIN> Enter new PIN Code twice DoorLine Slim DECT 45 / 56...
  • Page 46 Overview of programming table Programming command Own settings Description #à99 Reset to factory setting Reduce microphone sensitiv- Increase microphone sensitiv- Reduce loudspeaker volume Increase loudspeaker volume Ending programming Hang up the receiver or enter #0. 46 / 56 DoorLine Slim DECT...
  • Page 47: Everyday Use

    Pick up telephone. Voice communication is established directly Hang up the receiver to end the voice communication enter digits #0 (disconnects the connection immediately) the maximum call duration is reached. The connection is then disconnected automatically DoorLine Slim DECT 47 / 56...
  • Page 48: Opening A Door

    A door call takes place enter button command #8 (if relay contact 1 is set as door opener) Enter button command #9 (if relay contact 2 is set as door opener) The door opener is activated 48 / 56 DoorLine Slim DECT...
  • Page 49: Calling The Doorline

    Voice communication is established directly Ending connection Simply hang up the receiver to end the voice communic- ation enter digits #0 (disconnects the connection immediately) the maximum call duration is reached. The connection is then disconnected automatically DoorLine Slim DECT 49 / 56...
  • Page 50: Activating / Deactivating Call Forwarding To Absence Number

    You will hear the positive acknowledgement tone Press the hashtag button Enter digit (1-2) for the relevant bell pushbutton Enter digit 1 for activation You will hear the positive acknowledgement tone. Forward- ing is active Hang up the receiver 50 / 56 DoorLine Slim DECT...
  • Page 51 You will hear the positive acknowledgement tone Press the hashtag button Enter digit (1-2) for the relevant bell pushbutton Enter digit 0 for deactivation You will hear the positive acknowledgement tone. Forward- ing is deactivated Hang up the receiver DoorLine Slim DECT 51 / 56...
  • Page 52: Direct Commands During Voice Communication

    – the door opener function was enabled in the config- uration of the DoorLine Important: The contacts can only be switched via these direct commands if they have been assigned the function "Redial" in the configuration. 52 / 56 DoorLine Slim DECT...
  • Page 53: Malfunctions And Fault Elimination

    Door- reception in the area of munication Line is inadequate. the DoorLine. If neces- sary, use repeaters from the respective manu- facturer to extend the transmission range of the PBX system. DoorLine Slim DECT 53 / 56...
  • Page 54: Maintenance, Care And Disposal

    In accordance with the EC Directive 2012/96/EC, it must not be disposed of together with household waste but must be de- livered to the local return system for electrical and electronic equip- ment. 54 / 56 DoorLine Slim DECT...
  • Page 55 DoorLine Slim DECT 55 / 56...
  • Page 56 Technical Hotline If you have questions on the operation or configuration of your DoorLine that cannot be answered in these Operating Instructions, please contact your spe- cialist dealer. If your specialist dealer cannot help, our Hotline is at your disposal. Usage of the Hotline incurs the normal connection costs.
