JP1
BUS EXT

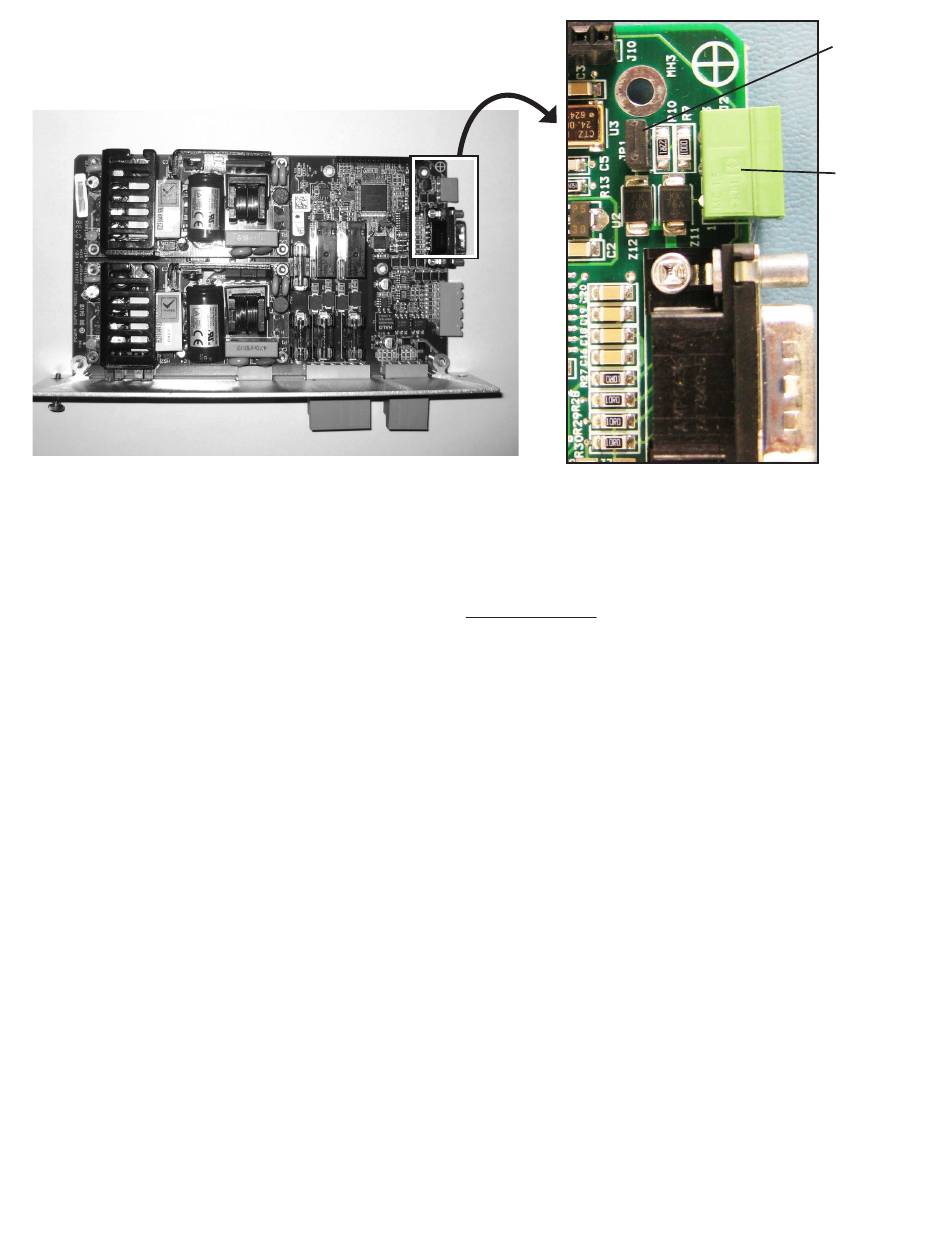

Figure 4: Jumper JP1 Location
Bus Termination Jumper Removal
The TS-EXPC / TS-EXPC2 provides system bus termination when installed and running. Therefore the system bus
termination currently provided by the Power Supply Module must be removed. Leaving the jumper in place will result in
erratic system performance. Refer to the TS-5 Series Installation Guide 000-2150 for instructions on installing a module.
Be extremely careful when removing the power supply module so it does not rub against any other part of the system. After it
is removed from the system, locate the system bus termination jumper JP1 and remove it (Figure 4).
