Ingersoll-Rand ZSENS930AW00MA Installer's Manual

NOTE : Use thermostat software version REL 5.1 or newer when using this sensor with a Trane/American Standard connected thermostat.
INSTALLATION
– adding a ZSENS930 to a new or existing Z-Wave network
STEP 1
– Find the right location
Suggested criteria for finding the right sensor location when used to control a
home or as a thermostat sensor:
1. Do not place near a supply register.
2. Do not place near windows or on an exterior wall.
3. Do not place behind doors or where air flow can be blocked by furniture.
4. Do not place where it may be subject to unnecessary or extreme tem-
perature changes; unintended influences may cause adverse environ-
ment sensing.
5. The optimum zone for correct placement of the sensor is at least 5 feet
above the floor and at least 2 feet below the ceiling.
STEP 2
– Remove the Back Plate
Insert a small screwdriver beneath the tab at the bottom of the Back Plate and
lift to unsnap it from the front. WRITE DOWN the Serial Number from the Back
Plate of the sensor.
STEP 3
– Insert the supplied batteries
Two 1.5 Volt AAA batteries are supplied in the box.
STEP 4
– Put the Z-Wave bridge in Add mode
+
Press the or "Add Device" button on the bridge. Please see Table 1. for
824 or 850 and Table 2. for 1050 to proceed with adding to either Z-Wave
enabled thermostat.
STEP 5
– Add the sensor
Stand where the sensor is to be installed and press and release the button
labeled "INSTALL" on the interior of the sensor
STEP 6
– Connection Status.
The status LED next to the button on the interior of the sensor will blink rapidly
for 3 seconds when it has been added to your Z-Wave network.
STEP 7
– Mount the back plate at the right location
Anchors and screws are provided to mount the Back Plate.
STEP 8
– Mount the Sensor FINAL INSTALLATION STEP
Once successfully added, snap the sensor onto the mounted Back Plate.
It will take 10 minutes after installation for the temperature and humidity values
to stabilize due to handling.
SERIAL#
ZONE
Home owner should retain this document for
their records.
NOTES:
SERIAL#
ZONE NAME
SERIAL#
ZONE NAME
SERIAL#
ZONE NAME
SERIAL#
ZONE NAME
Z-Wave Temperature & Humidity Sensor
ZSENS930AW00MA Installer Guide
This sensor should be installed by a qualified HVAC technician.
After installation, allow 10 minutes for the temperature readings to stabilize.
If Applicable
SERIAL#
ZONE NAME
SERIAL#
ZONE NAME
SERIAL#
ZONE NAME
SERIAL#
ZONE NAME
IMPORTANT

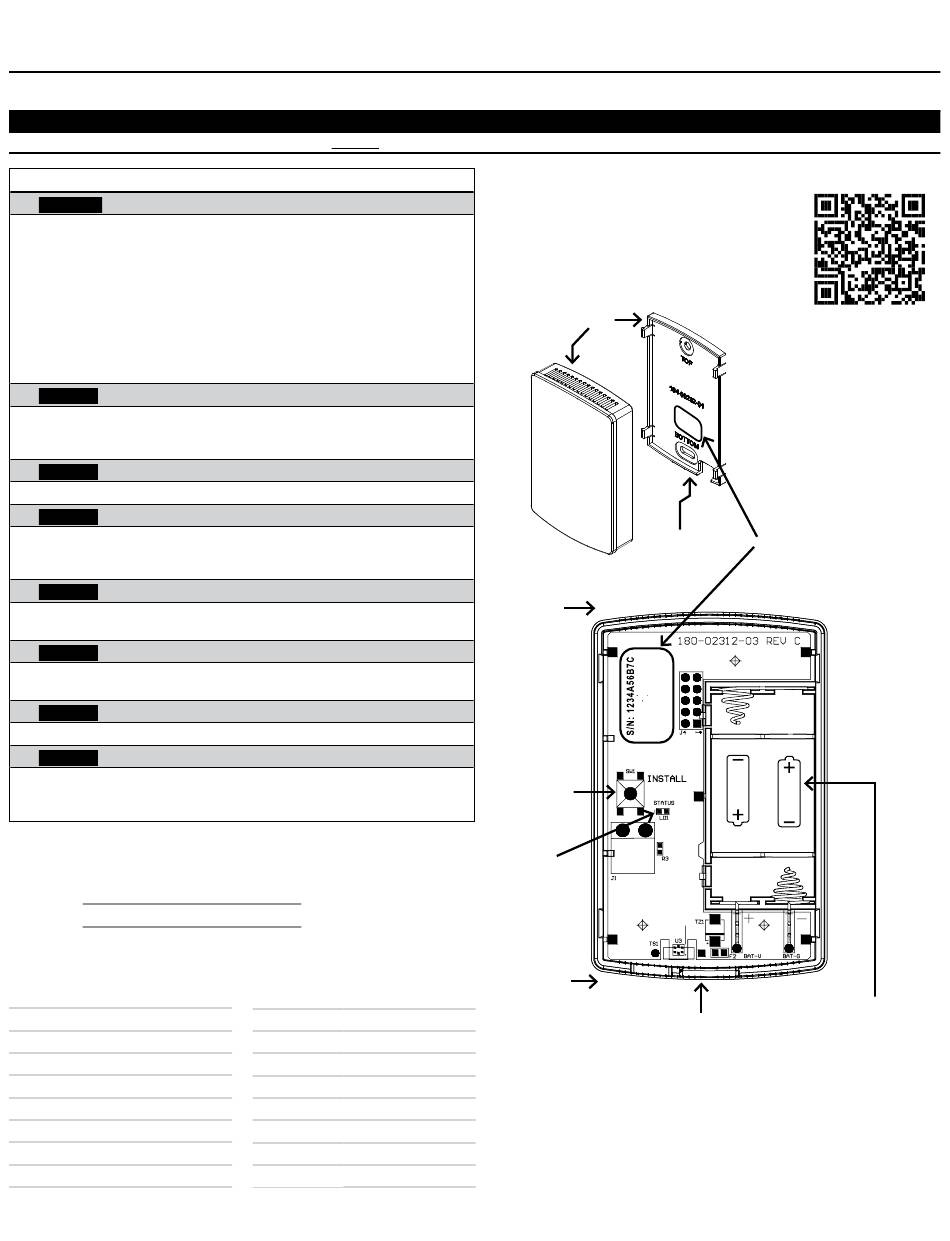

Top
Front
Plate
Top
INSTALL
Button
Status
LED
Bottom
A QR Code at the top of this document is also available for your convenience.
The latest version of this document can be found on ComfortSite or ASDealernet.
Scan the QR Code to view help videos
Back
Plate
Serial Number
Location
Tab
Battery
Compartment
Tab
Slot
Note : Please see this link for video tutorials:
http://www.fieldtechhelp.com/comcon010.html
