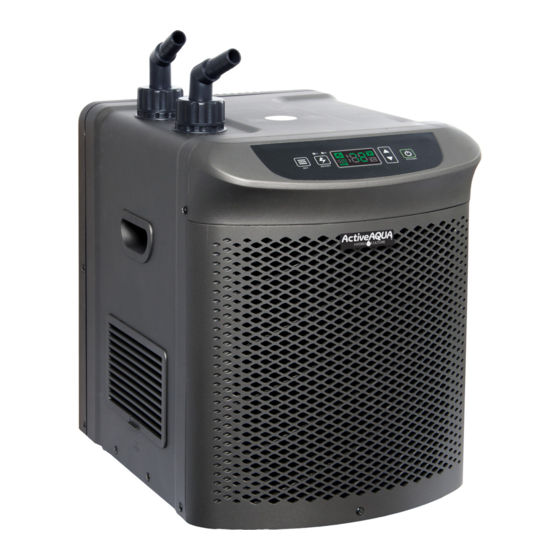

Summary of Contents for Active Aqua AACH10HP

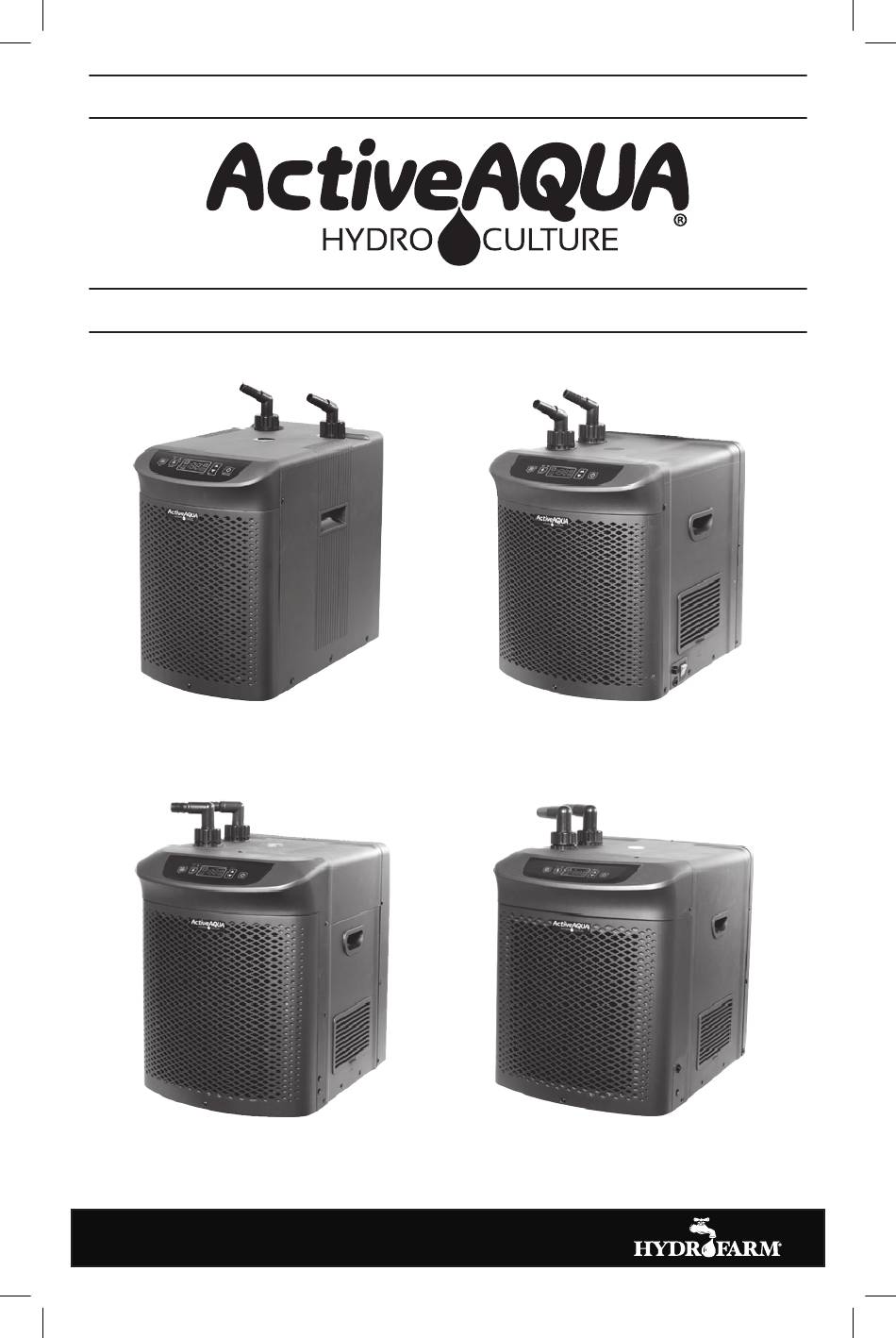

- Page 1 INSTRUCTIONS WATER CHILLERS AACH10HP AACH25HP AACH50HP AACH100HP AACH10_25_50_100_Instructions_8.1.2018.indd 1 2018/8/2 13:52...
- Page 2 INSTRUCTIONS AACH10HP CHILLER: 1/10 HP (10-40 GALLON) AACH10HP PERFORMANCE CURVE The refrigeration performance test is indicated when the ambient temperatuire is 88°F (31°C), the water temperature before refrigerated is 100°F (38°C), and the volume of water being refrigerated is 50 L (13 gal), 100 L (26 gal) and 150 L (40 gal).
- Page 3 INSTRUCTIONS AACH10HP SPECIFICATIONS Model AACH10HP Rated Voltage 110-120V Rated Frequency 60Hz Working Current 2.2A Power 1/10 HP *BTU 1020 BTU/H Refrigerant R134a Refrigerant Weight 180±10g Rate of Flow 132-396 GPH (500-1500 LPH) Reservoir Capacity 13-40 gal (50-150 L) Net Weight...
- Page 4 INSTRUCTIONS AACH25HP CHILLER: 1/4 HP (26-80 GALLON) AACH25HP PERFORMANCE CURVE The refrigeration performance test is indicated when the ambient temperatuire is 88°F (31°C), the water temperature before refrigerated is 100°F (38°C), and the volume of water being refrigerated is 150 L (40 gal), 250 L (66 gal), and 350 L (92 gal). www.Hydrofarm.com AACH10_25_50_100_Instructions_8.1.2018.indd 4 2018/8/2 13:52...
- Page 5 INSTRUCTIONS AACH25HP SPECIFICATIONS Model AACH25HP Rated Voltage 110-120V Rated Frequency 60Hz Working Current 4.7A Power 1/4 HP *BTU 3010 BTU/H Refrigerant R134a Refrigerant Weight 220±10g Rate of Flow 396-925GPH (1500-3500LPH) Reservoir Capacity 40-92 gal (150-350 L) Net Weight 46 lbs Unit Size 18"...
- Page 6 INSTRUCTIONS AACH50HP CHILLER: 1/2 HP (52-132 GALLON) AACH50HP PERFORMANCE CURVE The refrigeration performance test is indicated when the ambient temperatuire is 88°F (31°C), the water temperature before refrigerated is 100°F (38°), and the volume of water being refrigerated is 350 L (92 gal), 500 L (132 gal) and 650 L (172 gal). www.Hydrofarm.com AACH10_25_50_100_Instructions_8.1.2018.indd 6 2018/8/2 13:52...
- Page 7 INSTRUCTIONS AACH50HP SPECIFICATIONS Model AACH50HP Rated Voltage 110‒120V Rated Frequency 60Hz Working Current 5.4A Power 1/2 HP *BTU 4020 BTU/H Refrigerant R134a Refrigerant Weight 280±15g Rate of Flow 800-1600GPH (3000-6000LPH) Reservoir Capacity 92-172 gal (350-650 L) Net Weight 51 lbs Unit Size 19"...
- Page 8 INSTRUCTIONS AACH100HP CHILLER: 1 HP (80-250 GALLON) AACH100HP PERFORMANCE CURVE The refrigeration performance test is indicated when the ambient temperatuire is 88°F (31°C), the water temperature before refrigerated is 100°F (38°), and the volume of water being refrigerated is 500 L (132 gal), 1000 L (264 gal) and 1500 L (396 gal). www.Hydrofarm.com AACH10_25_50_100_Instructions_8.1.2018.indd 8 2018/8/2 13:52...
- Page 9 INSTRUCTIONS AACH100HP SPECIFICATIONS Model AACH100HP Rated Voltage 110‒120V Rated Frequency 60Hz Working Current 10.2A Power 1 HP *BTU 10050 BTU/H Refrigerant R410a Refrigerant Weight 450±20g Rate of Flow 1320-3900 GPH (5000-15000 LPH) Reservoir Capacity 132-396 gal (500-1500 L) Net Weight 75 lbs Unit Size 21"...
-
Page 10: Circuit Diagram
The super silent design results in significantly lower noise levels. The Active Aqua Series Chillers have a strong chassis with an ABS plastic housing which is anti-rust and anti-corrosive, ensuring that the chiller does not look out of place in any setting. For a complete understanding of this chiller, we recommend reading this instruction manual thoroughly. -
Page 11: Terms And Symbols
INSTRUCTIONS TERMS AND SYMBOLS Several symbols are used in this manual and on the product itself which are aimed at promoting proper and safe operation in order to prevent personal injuries or damage to the chiller. Please familiarize yourself with the symbols below before reading the manual or trying to operate the chiller. - Page 12 The inflow should connect the chiller to an appropriately-sized submersible water pump such as an Active Aqua Submersible Pump in a reservoir of appropriate capacity (see attached performance curve chart). The outflow tube should hang freely in the reservoir to re- introduce the chilled water back into it.
- Page 13 INSTRUCTIONS UNDERSTANDING THE DISPLAY PANEL Power Turns chiller on and off (power switch) Increases temperature in one-degree increments when Increase setting temperature; Select Fahrenheit as unit of measure of temperature Decreases temperature in one-degree increments when Decrease setting temperature; Select Celsius as unit of measure of temperature Indicates that the current water temperature is being Fahrenheit...
-
Page 14: Operation
INSTRUCTIONS WARNINGS • Do NOT cover the chiller unit with anything during operation. • Place the chiller in the upright position ONLY for operation and storage purposes. • Avoid direct contact with liquids to the external body of the chiller unit. Failure to do so may result in damage to the unit or electric shock. -
Page 15: Temperature Calibration
INSTRUCTIONS TEMPERATURE CALIBRATION 1. Set the desired temperature above the current temperature so that the compressor will not operate during calibration. 2. In Display mode, press the /\ or \/ button for 5 seconds to select between Fahrenheit and Celsius as the unit of measure of temperature. -
Page 16: Boost Function
INSTRUCTIONS 5. Use the /\ or \/ button on the control panel to increase or decrease this setting to the desired deadband width. Press and hold the SET button again for 5 seconds (or wait for approximately 8 seconds) to confirm the desired temperature and exit from the setting mode to the display mode. The display will turn from blinking to solid. - Page 17 INSTRUCTIONS 4. Fill the reservoir with clean water and a flushing agent formulated to remove salt deposits and excess nutrients from the plants’ root systems and grow medium (available at most indoor gardening and hydroponic retailers). Note: Using a flushing agent is completely optional. Pump away and discard flushing agent after cleaning.
- Page 18 INSTRUCTIONS ERROR CODE/ POSSIBLE CAUSE SOLUTION SYMPTOM Water temperature in reservoir or tank is at or Ensure that the pump is operating correctly below 32°F or 0°C degrees for correct water circulation. Celsius Use other methods to reduce the water Water temperature in temperature down, or allow the water reservoir or tank is above...
-
Page 19: Limited Warranty
INSTRUCTIONS LIMITED WARRANTY Hydrofarm warrants the chiller to be free from defects in materials and workmanship. The warranty term is for one year beginning on the date of purchase. Misuse, abuse, or failure to follow instructions is not covered under this warranty. Hydrofarm’s warranty liability extends only to the replacement cost of the product. - Page 20 ActiveAqua Chiller Instructions revised - August 2, 2018 1:52 PM www.Hydrofarm.com AACH10_25_50_100_Instructions_8.1.2018.indd 20 2018/8/2 13:53...
