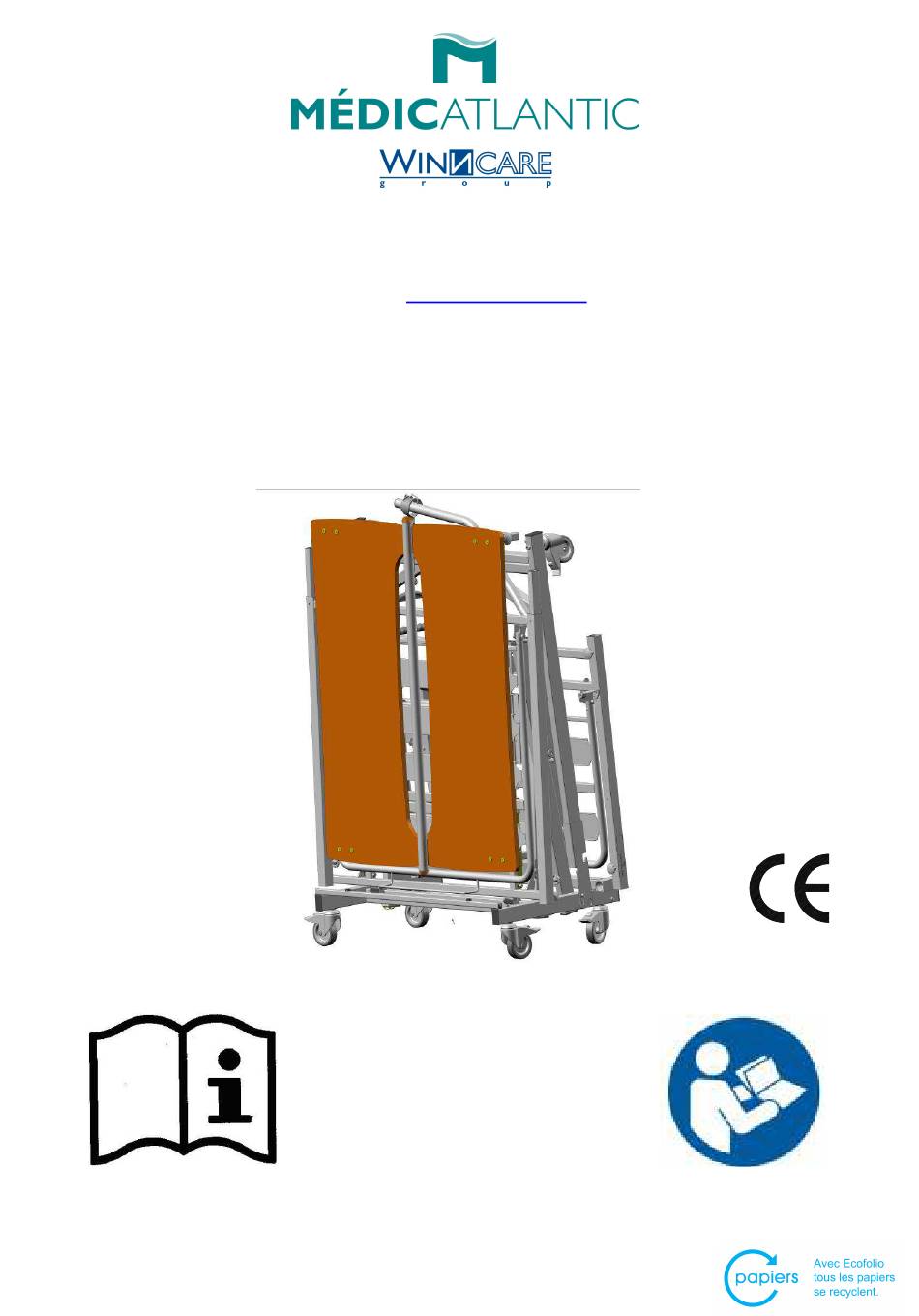

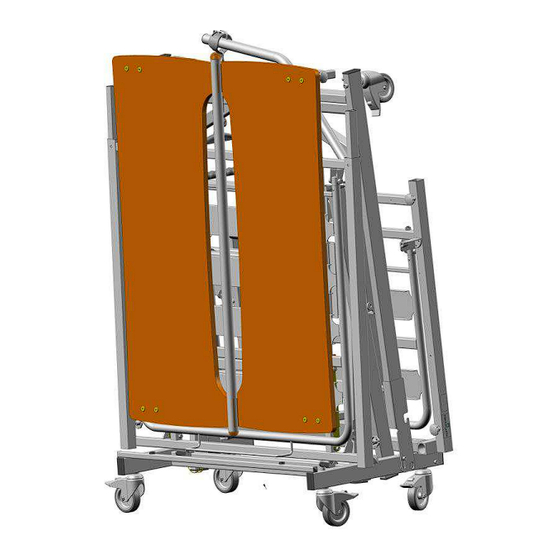

4 Le Pas du Château
85670 SAINT PAUL MONT PENIT
TEL : 02-51-98-55-64
FAX : 02-51-98-59-07
Email :
info@medicatlantic.fr
Site Internet : http://www.winncare.fr
X
X
L
D
I
V
I
S
Y
S
X
X
L
D
I
V
I
S
Y
S
X
X
L
X
P
R
E
S
S
X
X
L
X
P
R
E
S
S
IXX3L08/11-120/140
IXL4L08/11-120/140
2015_10_15
580040 Anglais

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XXL and is the answer not in the manual?

Questions and answers

Related Manuals for Medicatlantic XXL

Summary of Contents for Medicatlantic XXL

  • Page 1 4 Le Pas du Château 85670 SAINT PAUL MONT PENIT TEL : 02-51-98-55-64 FAX : 02-51-98-59-07 Email : info@medicatlantic.fr Site Internet : http://www.winncare.fr IXX3L08/11-120/140 IXL4L08/11-120/140 2015_10_15 580040 Anglais...

  • Page 2: Table Of Contents

    6.2. Assembling the bed XXL XPress ...................... 24 6.3. Dismantling the bed XXL and XXL XPress..................25 6.4. Fold the base of the XXL XPress ...................... 26 BED BOARDS – 120/140/160cm WIDTH - COMPATIBLE ............27 COMPATIBLE ACCESSORIES ......................28 SPECIFIC USE............................

  • Page 3: Transport And Storage

    IXL4L_IXX3L07/08/11 MEDICATLANTIC Dear Sir/Madam, You have acquired a MEDICATLANTIC medical bed equipped with its accessories, and we thank you for your custom. Our beds and their accessories are designed and manufactured in compliance with the essential requirements of the European Directive 93/42/EEC and 2007/47/EEC.
  • Page 4 During any handling, try not to catch the leads of the motors and remote control and do not get them knotted. The wired control must be hooked to the headboard when not in use. MEDICATLANTIC prohibits the establishment of two beds in a room or in a too close environment as infrared remote command the two beds together.

  • Page 5: First Use

    MEDICATLANTIC The cleaning instructions recommended must be complied with. Only use original parts and accessories supplied by MEDICATLANTIC to guarantee safety and maintain product conformity. The bed must not be modified. Abnormal use of the bed may damage it or cause accidents to users, in which case the warranty shall be annulled.

  • Page 6: Use

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 3.3. Use 3.3.1. Easy Move boards Installing an Easy Move bed board : Removing an Easy Move bed board : 1 to 2 cm 1 to 2 cm Assemble the highest board on the head side. 6/32 2015_10_15...

  • Page 7: Metal Side Rails

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 3.3.2. Metal side rails To positionning the side rail. Head side Feet side 1 Insert amount of the side rail in the grip jaw on the head side of the bed. 2 Tighten the Rondo screws of the grip jaws on the bed base.

  • Page 8: Wooden Barriers

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 3.3.3. Wooden barriers See the attached instructions for fitting the wooden side rail. To raise the side rail. Raise the top side rail with both hands until it locks. Check that it is properly slot in. To lower the side rail.

  • Page 9: Separate Braking

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 3.3.5. Separate braking Check that the wheels are locked by trying to move the bed. If this is not done, the patient or another person who leans on the bed may fall. 3.3.6. Remote control Carry out a test cycle when the bed is empty to familiarise yourself with the bed functions.

  • Page 10: Leg Rest

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 3.3.7. Leg rest Manual crank version (11): To lift, lift the leg rest using the wire handle at the end. To lower, relieve the leg rest slightly or to its maximum with the hand to release the catch, then lower the leg rest.
  • Page 11 IXL4L_IXX3L07/08/11 MEDICATLANTIC Manufacturer’s declaration and guide – electromagnetic emissions The medical bed (see references in contents) has been designed for use in the electromagnetic environment specified below. The user should ensure that it is used in such an environment. Emissions test...

  • Page 12: Equipotentiality

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 800 MHz to the transmitter manufacturer and d the recommended separation distance in meters (m). 2 GHz The field strengths transmitted by fixed RF transmitters, determined by an electromagnetic measurement of the site , must be less than the conformity level in each range of frequencies.

  • Page 13: Putting The Back Rest Flat

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 3.5. Putting the back rest flat In the event of a power cut or failure, flatten the back rest as follows: a) Disconnect the power supply. b) Dismantle the headboard c) Stand at the head of the bed and take hold of the back rest handle with one hand.

  • Page 14: Maintenance

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 4. MAINTENANCE 4.1. Instructions for dismantling the motors Disconnect the 230 volts connection before dismantling. • Dismantle when the bed is empty or in the side position. • If dismantling in any other position, keep a firm hold of the moving parts to avoid any shearing.
  • Page 15 IXL4L_IXX3L07/08/11 MEDICATLANTIC QUALITY INSPECTION OF MEDICAL BEDS IDENTIFICATION OF MEDICAL BED ESTABLISHMENT CATEGORY TYPE MODEL TRADEMARK SERIAL NO. SERVICE SITE INVENTORY NO. DATE OF MANUFACTURE TEST DEVICES CHECKED AND CONFORMING WITH STANDARDS Description Type/model Identification/serial no. Mass continuity tester Dielectrimeter...
  • Page 16 IXL4L_IXX3L07/08/11 MEDICATLANTIC Qualitative aspects Verification that welds are in good condition Absence of sound disturbances (squeaking, lubrications) Electrics, hydraulics and pneumatics Electrical leads, plugs and connectors are in good condition (not sheared, not caught, etc.) Electrical parts in good condition (leads, motors, boxes, etc.) Hydraulic and pneumatic parts in good condition (pumps, compressors, jacks, dampers, etc.)

  • Page 17: Cleaning And Disinfection

    IXL4L_IXX3L07/08/11 MEDICATLANTIC Comments Conclusion Operational (is the safety of the patient, carers and technical staff at risk?) Plan of action (see comments) 3 Recommended date of next quality inspection OPERATOR NAME Establishment DATE Signature 1 Not Applicable 2 If the height measured does not comply with the standard, the health manager responsible for correct application must be informed.
  • Page 18 IXL4L_IXX3L07/08/11 MEDICATLANTIC EQUIPMENT Microfiber wipes Detergent or Detergent-Disinfectant (Surface DD with CE mark) and surface Disinfectant (Chlorine substances, alcohol base < 30%) Attention: DD products and Javel water must not be used undiluted. A remanence time must be applied according to the disinfectant manufacturer’s instructions (the drying time without human presence is often the...

  • Page 19: Warranties

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 4.4. Warranties All of our products carry a warranty against any manufacturing defect, provided the normal conditions for use and maintenance are complied with. Labour costs due to changes in structures or parts under warranty are not taken into account.

  • Page 20: Assembling And Dismantling

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 6. ASSEMBLING AND DISMANTLING 6.1. Assembling the bed XXL XPress A) Remove the packaging protective devices, adhesive tape and holding clamps. Remove the lifting pole and side rails (if present). Remove the boards by loosening the 2 Rondo screws from the frames .
  • Page 21 IXL4L_IXX3L07/08/11 MEDICATLANTIC D) Tilt the whole towards the floor and remove the fastening clip E) Unfold the whole frame and separate the cross brace from the base until all 6 wheels are placed flat. F) Brake the base. G) Place the head-half of the bed base centred and laid on the black brackets , and manually open the back rest so that the handle lies on the end of the base .
  • Page 22 IXL4L_IXX3L07/08/11 MEDICATLANTIC I) Place the foot-half of the bed base centred and laid on the base holders then tilt it so that it is resting on the cross brace bearings. 22/32 2015_10_15...
  • Page 23 IXL4L_IXX3L07/08/11 MEDICATLANTIC J) Ease the foot-half of the bed base and lock it on the bearings. K) Follow operations a, b and c. L) Once the base half is inserted, tighten the Rondo screws fully and put the safety clip in place to stop the bed base from separating.

  • Page 24: Assembling The Bed Xxl Xpress

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 6.2. Assembling the bed XXL XPress 1) Brake the wheels and raise the cross braces until the mark is aligned on the base and the bearing . 2) Place the head-half of the base on the base/cross brace ensemble to lock it with the 2 clips.

  • Page 25: Dismantling The Bed Xxl And Xxl Xpress

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 6.3. Dismantling the bed XXL and XXL XPress 6) Brake the wheels and lower the bed base until the mark is aligned on the base and cross brace bearing . 7) Remove the safety clip preventing the base from separating and loosen the two Rondo screws connecting the two half-bases.

  • Page 26: Fold The Base Of The Xxl Xpress

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 6.4. Fold the base of the XXL XPress 11) Lift the cross brace as far as possible from the base (photo A). While keeping hold of the cross brace, fold the head-half of the base as shown in photo B.

  • Page 27: Bed Boards - 120/140/160Cm Width - Compatible

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 7. BED BOARDS – 120/140/160cm WIDTH - COMPATIBLE Item Reference MEDIDOM II Easy move 120 cm P319-00 MEDIDOM II Easy move 140 cm P320-00 MEDIDOM II Easy move 160 cm P321-00 Louis Philippe Easy Move 120 cm P416-00...

  • Page 28: Compatible Accessories

    IXL4L_IXX3L07/08/11 MEDICATLANTIC 8. COMPATIBLE ACCESSORIES Ref. Des. A1700xx IV stand, 2 hooks A5800 Chrome-plated urine bottle holder Telescopic IV stand, 2 hooks A8400xx A193-00 Chrome-plated wall-mounted basin holder A230-00 Remote-control lead holder Epoxy urinal holder A260-00 A551-00 Excelys wall stop Skirt for Excelys and L.P.
  • Page 29 IXL4L_IXX3L07/08/11 MEDICATLANTIC Only accessories and boards supplied by MEDICATLANTIC guarantee safe use. Mattress Observe the mattress dimensions prescribed. See user guide Width of base in Characteristics of compatible mattresses Width 86 cm minimum with a high-resilience foam of 34 kg/m³...

  • Page 30: Specific Use

    It is imperative to raise the kickstand on the ship kit before transporting the bed. MEDICATLANTIC prohibits the installation of two beds in a room or in a too close space because infrared remote control will command the two beds together.

  • Page 31: Specific Technical Data

    Normal load in use : 315 kg (Patient 270 kg, Mattress 30kg, Accessories 15kg) Base/cross Head-end Foot-end bed TOTAL brace bed base base 120cm bed XXL XPRESS 55 kg 26 kg 29 kg 110 kg Version with manual crank leg rest 120cm bed XXL XPRESS 55 kg...
  • Page 32 IXL4L_IXX3L07/08/11 MEDICATLANTIC Médicatlantic recommends using a patient lift with a foot height of no more than 13.5 cm. Version 11 657 mm 947 mm Version 120 Version 120 1039 mm 1147 mm Version 140 Version 140 1239 mm 1347 mm...
