Summary of Contents for Beck IPC@CHIP SC01

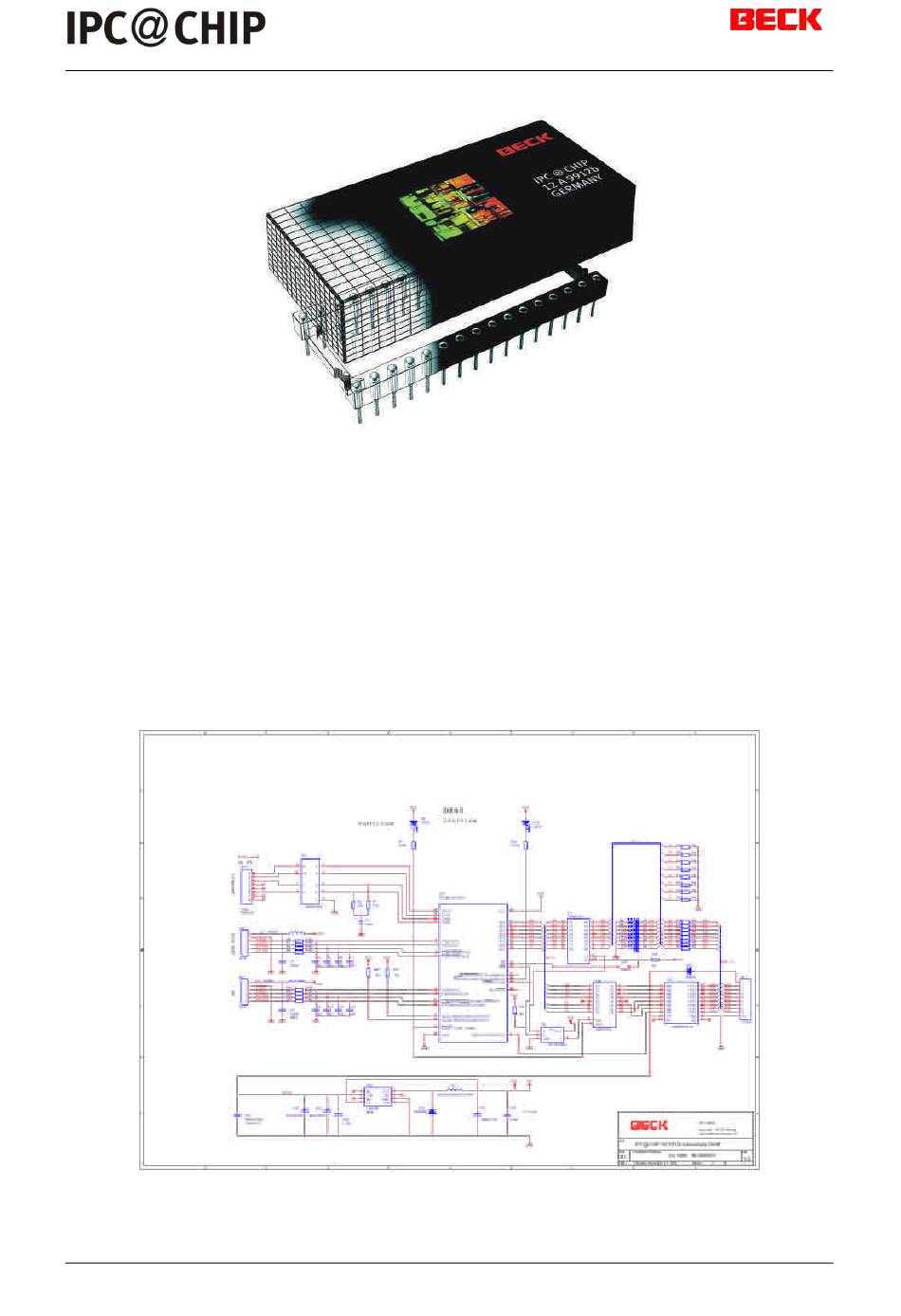

- Page 1 ® SC01/SC02/SC11/SC12 IPC GmbH Preliminary Hardware Manual High Performance, 80186- and 80188-Compatible, 16-Bit Embedded Microcontroller Single Chip PC with Ethernet 10Base-T IPC@CHIP® is a registered trademark of BECK IPC GmbH Sc12hw09.doc page 1 of 37 24.11.1999 V0.9 TF/WB...
-
Page 2: Table Of Contents
SYSTEM OVERVIEW . Memory map . System interrupts CHARACTERISTICS . APPLICATION EXAMPLES Evaluation board DK40 BECK FEC-FC34 Power-fail / Reset-out NMI / Reset-in Link- and Traffic-LED. HOW TO CONNECT ? . 256x 8bit I/O-Extension using 74HCT373/245 8255 24bit I/O and 8254 timer/counter... -
Page 3: Basic Specifications
® SC01/SC02/SC11/SC12 IPC GmbH BASIC SPECIFICATIONS @CHIP FLASH Ethernet SC01 80188 20MHz 128 Kbyte 128 Kbyte SC02 80188 20MHz 128 Kbyte 128 Kbyte 10Base-T SC11 80186 20MHz 512 Kbyte 512 Kbyte SC12 80186 20MHz 512 Kbyte 512 Kbyte 10Base-T IPC@CHIP® family 80186- and 80188-compatible microcontroller with up to 512KB-RAM, 512KB-Flash and Ethernet on Chip - Lower system cost with higher performance High performance... - Page 4 ® SC01/SC02/SC11/SC12 IPC GmbH The @CHIP SC01/SC02/SC11/SC12 microcontrollers are part of the Beck IPC@CHIP® family of System on Chip microcontrollers and microprocessors based on the x86 architecture. The IPC@CHIP® family microcontroller is the ideal upgrade for 80C186/188 designs requiring 80C186/188...
-
Page 5: Physical Dimensions
® SC01/SC02/SC11/SC12 IPC GmbH PHYSICAL DIMENSIONS PIN CONFIGURATION PIO7 / RXD0 PIO8 / TXD0 I2CCLK / MSCK / DRQ1 / INT6 / PIO0 PIO9 / ENRX0 / CTS0 I2CDAT / MISO / DRQ0 / INT5 / PIO1 PIO10 / RTR0 / RTS0 A2 / PCS6# / PIO2 PIO11 / TXD1 A1 / PCS5# / TMRIN1 / TMROUT1 / PIO3... -
Page 6: Pin Functions
® SC01/SC02/SC11/SC12 IPC GmbH PIN FUNCTIONS Pins That Are Used by Emulators The following pins are used by emulators for debugging purposes: TxD0, RxD0 Pin Terminology The following terms are used to describe the pins: Input (I) - An input-only pin. Output (O) - An output-only pin. -
Page 7: Programmable I/O Pins
® SC01/SC02/SC11/SC12 IPC GmbH Programmable I/O Pins Pin Name Type Function PIO[0..13] I/O Programmable I/O Pins (input/output, asynchronous, open-drain) The IPC@CHIP® family microcontroller provides 14 individually programmable I/O pins. Each PIO can be programmed with the following attributes: PIO function (enabled/disabled), direction (input/output), and weak pullup or pulldown. -
Page 8: Interrupts
® SC01/SC02/SC11/SC12 IPC GmbH Interrupts Pin Name Type Function INT[0,2-4] I Maskable Interrupt Request (input,asynchronous) These pins indicate to the microcontroller that an interrupt request has occurred. If the INT pin is not masked, the microcontroller transfers program execution to the location specified by the corresponding INT vector in the microcontroller interrupt vector table. -
Page 9: 10Base-T Interface
® SC01/SC02/SC11/SC12 IPC GmbH 10Base-T Interface Pin Name Type Function TPTX[+,-] O Twisted Pair Driver (outputs) These two outputs provide the TP drivers with pre-distortion capability TPRX[+,-] I Twisted Pair Receive (inputs). A differential receiver tied to the receive transformer pair of the twisted-pair wire. -
Page 10: Dma
® SC01/SC02/SC11/SC12 IPC GmbH Pin Name Type Function DRQ[0..1] I DMA Request (input, synchronous, level-sensitive) These pins indicate to the microcontroller that an external device is ready for DMA channel 0 or 1 to perform a transfer. DRQ0 is edge-triggered and internally synchronized. DRQ is not latched and must remain active until serviced. - Page 11 ® SC01/SC02/SC11/SC12 IPC GmbH with all hardware interrupts, the IF (interrupt flag) is cleared when the processor takes the interrupt, disabling the maskable interrupt sources. However, if maskable interrupts are re-enabled by software in the NMI interrupt service routine, via the STI instruction for example, the fact that an NMI is currently in service does not have any effect on the priority resolution of maskable interrupt requests.
-
Page 12: Functions That Are Mutual Exclusive
® SC01/SC02/SC11/SC12 IPC GmbH FUNCTIONS THAT ARE MUTUAL EXCLUSIVE The IPC@CHIP® family microcontroller provides a lot of different functions by several multi-function pins. Choosing one function will result in disabling other functions. The following table shows, which functions are mutual exclusive. Pin Name Function Exclusion... - Page 13 ® SC01/SC02/SC11/SC12 IPC GmbH Pin Name Function Exclusion PIO0 programmable I/O DRQ1, INT6, I C-Bus, SPI PIO1 programmable I/O DRQ0, INT5, I C-Bus, SPI PIO2 programmable I/O A2, PCS6# PIO3 programmable I/O A1, PCS#, Timer 1 PIO4 programmable I/O A0, PCS1#, TMRIN0, SPI PIO5 programmable I/O PCS3#, INT4, SPI, hardware flow control...
-
Page 14: System Overview
® SC01/SC02/SC11/SC12 IPC GmbH SYSTEM OVERVIEW IPC@CHIP® family microcontroller has a system configuration based on the ISA architecture with some changes: No ISA-Bus, no Video-Interface, no Keyboard Interface, programming of Serial Ports, DMA, PIC and Timer is different from standard IBM PC. This section provides an overview of the system memory configuration and basic I/O. -
Page 15: Characteristics
® SC01/SC02/SC11/SC12 IPC GmbH CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS Storage temperature : -25°C to +70°C see IEC 68-2-1/2 Supply voltage (Vcc) : 5V +/- 10% Supply current (Vcc = 5,5V) : 400 mA Voltage on any pin with respect to ground: -0,5V to Vcc + 0,5V OPERATING RANGES Operating temperature (Case temp. -
Page 16: Application Examples
IPC GmbH APPLICATION EXAMPLES The following 5 pages contain schematics, showing the IPC@CHIP® family microcontroller in two applications (BECK-IPC GmbH: DK40 and FEC-FC34) and gives you three solutions, how to handle the multi-function pin 17 RESET# / NMI / LINK-LED. Sc12hw09.doc page 16 of 37 24.11.1999 V0.9... -
Page 17: Evaluation Board Dk40
DK40 Overview Traffic/Link LED2 LED1 E[0..7] 200R 470R Schield on PE IPC@CHIP SC12 FS22101Y4 RJ45 TPTX+ RJ45ST1 TPTX- 74ABT541 TPRX+ TPRX- 10nF 100uH ETXD0 100R TXD0/PIO8 ERXD0 100R RXD0/PIO7 ECTS0# 100R ERTS0# 100R CTS0/ENRX0/PIO9 RTS0/RTR0/PIO10 RJ12 D[0..7] EA[0..7] 100nF JUMP2 MCS0/PCS1/PIO4/TMRIN0/A0 1N4007 PCS5/PIO3/TMROUT1/TMRIN1/A1... -
Page 18: Beck Fec-Fc34
FC34 NETZTEIL 24V REL24V JUMP2 REL24V IN24V OUT24V IN24V OUT24V IN0V OUT0V IN0V OUT0V JUMP2 980-S-2 980-S-3 FC34D1B Ausgabe-Elektronik Eingabe-Elektronik A0.01.COM A0.01.COM REL24V A0.0 A0.0 OUT0V A0.1 A0.1 A0.2 E0.0 A0.2 E0.0 A0.3 RESET# E0.1 A0.3 RESET# E0.1 A0.4 E0.2 A0.4 E0.2 A0.5... -
Page 19: Power-Fail / Reset-Out
1N4148 ** R1 LINK & TRAFFIC LED VREF= 200E 1N4148 2,5V LM393 DC Power supply 1N4007 Main Supply 5VDC LM385 100nF VPFAIL @CHIP * CAP 1,2V = NMI active 0,8V = RES active RES-OUT LM393 PFAIL = Power Fail is used to monitor main supply voltage, not main Vcc+5VDC. This is an Analog-Comparator-Input that activates NMI. -
Page 20: Nmi / Reset-In
LINK & TRAFFIC LED 200E DC Power supply 1N4007 Main Supply 5VDC @CHIP * CAP 1,2V = NMI active 0,8V = RES active 1N4148 NMI-IN-EXT. BC847 RES-IN-EXT. BC847 NMI-IN-EXT = High active digital NMI - Input from any external Logic. IPC GmbH Germany - 35578 Wetzlar RES-IN-EXT... -
Page 21: Link- And Traffic-Led
Traffic LED Link LED 470E 470E DC Power supply Main ?N400A Supply 5VDC 74HCT132 @CHIP * CAP 1,2V = NMI active 0,8V = RES active ZPD2V4 74HCT132 100K 74HCT132 74HCT132 10uF GmbH Germany - 35578 Wetzlar Garbenheimer Strasse 38 Gez. : IB 16.11.99 Title IPC@CHIP SC12 PIN17-Link&Traffic LED separat Gepr.: JW 15.11.99... -
Page 22: How To Connect
® SC01/SC02/SC11/SC12 IPC GmbH HOW TO CONNECT ? The following pages contain schematics, that show different kind of ICs connected to the IPC@CHIP® family microcontroller. Attention: These circuit examples are unevaluated! They will give you hints how to connect different kind of ICs in different manner to the IPC@CHIP® family microcontroller. -
Page 23: 256X 8Bit I/O-Extension Using 74Hct373/245
256 x 8bit I/O-Extension IPC@CHIP SC12 TPTX+ TPTX- 74HCT373 TPRX+ TPRX- TXD0/P8 RXD0/P7 CTS0/ENRX0/P9 PCS1# RTS0/RTR0/P10 PCS1# MCS0/PCS1/P4/TMRIN0/A0 74HCT245 PCS5/P3/TMROUT1/TMRIN1/A1 PCS6/P2/A2 TXD1/P11 ALE/PCS0 RXD1/INT3/P12 CTS1/MEN/PCS2/P6/INT2/INTA/PW RTS1/MOSI/PCS3/P5/INT4 PCS1# I2CCLK/MSCK/DRQ1/INT6/P0 I2CDAT/MISO/DRQ0/INT5/P1 RESET_PFAIL_LILED PCS1# TMROUT0/INT0/P13 IPC GmbH Germany - 35578 Wetzlar Garbenheimer Strasse 38 Title IPC@CHIP SC12 circuit example Size... -
Page 24: 8255 24Bit I/O And 8254 Timer/Counter
8255 24 bit I/O-Extension and 8254 Timer/Counter IPC@CHIP SC12 TPTX+ TPTX- TPRX+ TPRX- TXD0/P8 RXD0/P7 CTS0/ENRX0/P9 RTS0/RTR0/P10 Reset RESET PCS0# MCS0/PCS1/P4/TMRIN0/A0 PCS5/P3/TMROUT1/TMRIN1/A1 Reset PCS6/P2/A2 PCS0# TXD1/P11 ALE/PCS0 RXD1/INT3/P12 CTS1/MEN/PCS2/P6/INT2/INTA/PW PCS3 # RTS1/MOSI/PCS3/P5/INT4 I2CCLK/MSCK/DRQ1/INT6/P0 I2CDAT/MISO/DRQ0/INT5/P1 8255 RESET_PFAIL_LILED TMROUT1 TMROUT0/INT0/P13 CLK0 OUT0 CLK1 OUT1 CLK2... -
Page 25: Multimeter Adc Max133Cpl
Multimeter ADC MAX133CPL IPC@CHIP SC12 TPTX+ TPTX- TPRX+ TPRX- OHMS COMMON VREF TXD0/P8 BEEP RXD0/P7 CTS0/ENRX0/P9 READ RTS0/RTR0/P10 WRITE IN LO MCS0/PCS1/P4/TMRIN0/A0 1.11M PCS5/P3/TMROUT1/TMRIN1/A1 101K PCS6/P2/A2 TXD1/P11 ALE/PCS0 RXD1/INT3/P12 400MV INT IN CURRENT INT OUT CTS1/MEN/PCS2/P6/INT2/INTA/PW RTS1/MOSI/PCS3/P5/INT4 OSC1 BUFF 1 OSC2 BUFF 2 MAX133CP L... -
Page 26: 8259 Peripheral Interrupt Controller
8259 peripheral interrupt controller IPC@CHIP SC12 TPTX+ TPTX- 8259A TPRX+ TPRX- TXD0/P8 RXD0/P7 CTS0/ENRX0/P9 RTS0/RTR0/P10 SP/EN CAS0 MCS0/PCS1/P4/TMRIN0/A0 CAS1 PCS5/P3/TMROUT1/TMRIN1/A1 INTA CAS2 PCS6/P2/A2 PCS0 # TXD1/P11 ALE/PCS0 RXD1/INT3/P12 INTA# CTS1/MEN/PCS2/P6/INT2/INTA/PW RTS1/MOSI/PCS3/P5/INT4 I2CCLK/MSCK/DRQ1/INT6/P0 I2CDAT/MISO/DRQ0/INT5/P1 RESET_PFAIL_LILED INT0 TMROUT0/INT0/P13 IPC Gmb H Germany - 35578 Wetzlar Garbenheimer Str asse 38 Title IPC@CHIP SC12 circuit example... -
Page 27: 16C452/552 Uart And Printer Port
16C452/552 2 UART with FIFO and Printer Port 74HCT 373 IPC@CHIP SC12 STROB TPTX+ AUTOFD TPTX- SLCT TPRX+ INIT TPRX- BUSY SLCT TXD0/P8 ERROR RXD0/P7 CTS0/ENRX0/P9 RTS0/RTR0/P10 CTS1 DSR1 INT0 INT0 DCD1 INT4 INT1 PCS1 # INT2 MCS0/PCS1/P4/TMRIN0/A0 INT2 SIN1 PCS5 # PCS5/P3/TMROUT1/TMRIN1/A1 PCS6 #... -
Page 28: 16C452/552 Without Additional Address Latch
16C452/552 2 UART with FIFO and Printer Port PCS0 # PCS2 # PCS3 # IPC@CHIP SC12 STROB TPTX+ AUTOFD TPTX- SLCT TPRX+ INIT TPRX- BUSY SLCT TXD0/P8 ERROR RXD0/P7 CTS0/ENRX0/P9 RTS0/RTR0/P10 CTS1 DSR1 INT0 INT0 DCD1 INT5 INT1 INT6 MCS0/PCS1/P4/TMRIN0/A0 INT2 SIN1 PCS5/P3/TMROUT1/TMRIN1/A1... -
Page 29: 8250 Uart With Multiplexed Address/Data Bus
UART 8250 with multiplexed address/data bus OUT1 OUT2 IPC@CHIP SC12 TPTX+ TPTX- TPRX+ TPRX- TXD0/P8 RXD0/P7 CTS0/ENRX0/P9 CSOUT RTS0/RTR0/P10 DDIS RESET XTAL1/CLK XTAL2 PCS1# MCS0/PCS1/P4/TMRIN0/A0 PCS5/P3/TMROUT1/TMRIN1/A1 RCLK BAUDOUT IC3A PCS6/P2/A2 8250 TXD1/P11 ALE/PCS0 RXD1/INT3/P12 74HCT 04 CTS1/MEN/PCS2/P6/INT2/INTA/PW RTS1/MOSI/PCS3/P5/INT4 I2CCLK/MSCK/DRQ1/INT6/P0 I2CDAT/MISO/DRQ0/INT5/P1 RESET_PFAIL_LILED TMROUT0/INT0/P13 IPC GmbH... -
Page 30: 8251 Uart
UART 8251 IPC@CHIP SC12 TPTX+ TPTX- TPRX+ TPRX- TXRDY TXD0/P8 RXD0/P7 RXRDY CTS0/ENRX0/P9 RTS0/RTR0/P10 SY/BR RESET MCS0/PCS1/P4/TMRIN0/A0 PCS5/P3/TMROUT1/TMRIN1/A1 PCS6/P2/A2 8251 TXD1/P11 ALE/PCS0 RXD1/INT3/P12 CTS1/MEN/PCS2/P6/INT2/INTA/PW RTS1/MOSI/PCS3/P5/INT4 I2CCLK/MSCK/DRQ1/INT6/P0 I2CDAT/MISO/DRQ0/INT5/P1 RESET_PFAIL_LILED TMROUT0/INT0/P13 IPC GmbH Germany - 35578 Wetzlar Garbenheimer Stra sse 38 Title IPC@CHIP SC12 circuit example Size Document Numb er... -
Page 31: Low-Cost 8Bit Adc
low-cost 8bit ADC IPC@CHIP SC12 TPTX+ TPTX- TPRX+ TPRX- TXD0/P8 CLKR RXD0/P7 CTS0/ENRX0/P9 RTS0/RTR0/P10 VREF INTR PCS1 # MCS0/PCS1/P4/TMRIN0/A0 AGND PCS5/P3/TMROUT1/TMRIN1/A1 ADC080 4 PCS6/P2/A2 TXD1/P11 ALE/PCS0 RXD1/INT3/P12 CTS1/MEN/PCS2/P6/INT2/INTA/PW RTS1/MOSI/PCS3/P5/INT4 I2CCLK/MSCK/DRQ1/INT6/P0 I2CDAT/MISO/DRQ0/INT5/P1 RESET_PFAIL_LILED INT0 TMROUT0/INT0/P13 IPC GmbH Germany - 35578 Wetzlar Garbenheimer Stra sse 38 Title IPC@CHIP SC12 circuit example... -
Page 32: Μpd7004 Up To 16X 10Bit Adc
16x 10bit ADC with 2x µPD7004 IPC@CHIP SC12 TPTX+ TPTX- TPRX+ TPRX- ACH0 ACH1 ACH2 TXD0/P8 RXD0/P7 ACH3 CTS0/ENRX0/P9 ACH4 RTS0/RTR0/P10 ACH5 ACH6 MCS0/PCS1/P4/TMRIN0/A0 ACH7 PCS0# PCS5/P3/TMROUT1/TMRIN1/A1 PCS6/P2/A2 PCS0 # TXD1/P11 ALE/PCS0 EOC OUT RXD1/INT3/P12 MODE CTS1/MEN/PCS2/P6/INT2/INTA/PW V REF CLKIN PCS3# RTS1/MOSI/PCS3/P5/INT4 UPD70 04... -
Page 33: Dac4815 4X 12Bit
DAC4815 4x 12bit IPC@CHIP SC12 TPTX+ TPTX- TPRX+ TPRX- VOUTA VOUTB VOUTC TXD0/P8 RXD0/P7 VOUTD CTS0/ENRX0/P9 RTS0/RTR0/P10 MCS0/PCS1/P4/TMRIN0/A0 PCS5/P3/TMROUT1/TMRIN1/A1 PCS6/P2/A2 -REFOUT PCS0# TXD1/P11 ALE/PCS0 RXD1/INT3/P12 -REFIN DGND CTS1/MEN/PCS2/P6/INT2/INTA/PW +REFOUT RTS1/MOSI/PCS3/P5/INT4 +15V AGND -15V I2CCLK/MSCK/DRQ1/INT6/P0 DAC481 5 I2CDAT/MISO/DRQ0/INT5/P1 RESET_PFAIL_LILED TMROUT0/INT0/P13 IPC GmbH Germany - 35578 Wetzlar Garbenheimer Stra sse 38 Title... -
Page 34: Lc-Display
LC-Display IPC@CHIP SC12 TPTX+ TPTX- TPRX+ TPRX- DISPLAY 20x2 TXD0/P8 RXD0/P7 100nF CTS0/ENRX0/P9 ST14 RTS0/RTR0/P10 RSEL NTC10 K PCS5_WR MCS0/PCS1/P4/TMRIN0/A0 PCS5 # PCS5/P3/TMROUT1/TMRIN1/A1 PCS6/P2/A2 A_LED K_LED TXD1/P11 ALE/PCS0 MICRO-MATCH16 RXD1/INT3/P12 CTS1/MEN/PCS2/P6/INT2/INTA/PW RTS1/MOSI/PCS3/P5/INT4 I2CCLK/MSCK/DRQ1/INT6/P0 IC13F I2CDAT/MISO/DRQ0/INT5/P1 PCS5 # RESET_PFAIL_LILED TMROUT0/INT0/P13 74HCT 32 74HCT1 4 IC20D SO14S... -
Page 35: Ethernet To Ethernet Router
Ethernet to Ethernet Router IPC@CHIP SC12 IPC@CHIP SC12 TPTX+ TPTX+ TPTX- TPTX- TPRX+ TPRX+ TPRX- TPRX- TXD0/P8 TXD0/P8 RXD0/P7 RXD0/P7 CTS0/ENRX0/P9 CTS0/ENRX0/P9 RTS0/RTR0/P10 RTS0/RTR0/P10 MCS0/PCS1/P4/TMRIN0/A0 MCS0/PCS1/P4/TMRIN0/A0 PCS5/P3/TMROUT1/TMRIN1/A1 PCS5/P3/TMROUT1/TMRIN1/A1 PCS6/P2/A2 PCS6/P2/A2 TXD1/P11 ALE/PCS0 ALE/PCS0 TXD1/P11 RXD1/INT3/P12 RXD1/INT3/P12 CTS1/MEN/PCS2/P6/INT2/INTA/PW CTS1/MEN/PCS2/P6/INT2/INTA/PW RTS1/MOSI/PCS3/P5/INT4 RTS1/MOSI/PCS3/P5/INT4 I2CCLK/MSCK/DRQ1/INT6/P0 I2CCLK/MSCK/DRQ1/INT6/P0 I2CDAT/MISO/DRQ0/INT5/P1... -
Page 36: Compact Flash Disk 8Bit
8bit compact flash disk IPC@CHIP SC12 TPTX+ TPTX- TPRX+ TPRX- CE1 # TXD0/P8 RXD0/P7 CTS0/ENRX0/P9 RTS0/RTR0/P10 IOIS16# BD11 BD12 MCS0/PCS1/P4/TMRIN0/A0 BD13 BD14 PCS5/P3/TMROUT1/TMRIN1/A1 BD15 CE2# PCS6/P2/A2 CE1# TXD1/P11 ALE/PCS0 INT0 RXD1/INT3/P12 M_SLAVE IORDY RESET# RESET# CTS1/MEN/PCS2/P6/INT2/INTA/PW PCS3 # RTS1/MOSI/PCS3/P5/INT4 PDIAG# 0.1u F DASP BD10... -
Page 37: 82527 Can Bus Master
82527 CAN bus master IPC@CHIP SC12 suppression filter TPTX+ TPTX- 100uH TPRX+ 4u7/10V 4u7/10V 4u7/10V TPRX- 100N 100n 100n NME0505_SIL TXD0/P8 RXD0/P7 CTS0/ENRX0/P9 RTS0/RTR0/P10 PCS1# 2n2/400V MCS0/PCS1/P4/TMRIN0/A0 PCS5/P3/TMROUT1/TMRIN1/A1 PCS6/P2/A2 TXD1/P11 ALE/PCS0 RXD1/INT3/P12 CTS1/MEN/PCS2/P6/INT2/INTA/PW RTS1/MOSI/PCS3/P5/INT4 I2CCLK/MSCK/DRQ1/INT6/P0 I2CDAT/MISO/DRQ0/INT5/P1 RESET_PFAIL_LILED 100n INT0 TMROUT0/INT0/P13 100n 82C250 HCPL2601...
