Summary of Contents for Foxtech S1+

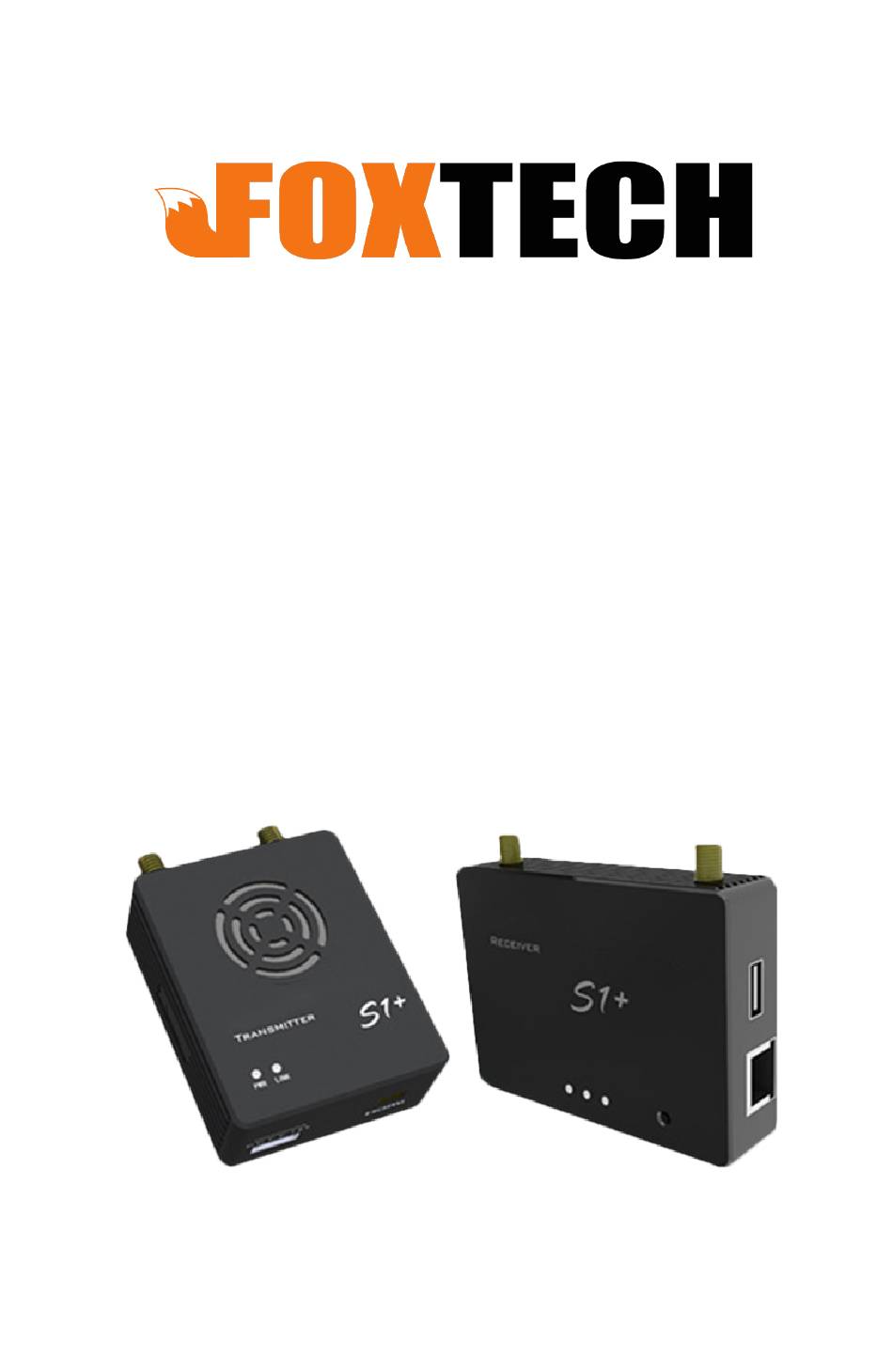

- Page 1 WI RE LE SS HD VID EO TRA NS MI SS IO N INTRODUCTION ／INSTRUCTION ／INSTALLATION GUIDE...
-
Page 2: Table Of Contents
Content 1、Disclaimer----------------------------------------------------------------------1 2、Announcement ----------------------------------------------------------------1 2.1 Installation Warning----------------------------------------------------------1 2.2 Usages warning ---------------------------------------------------------------1 3、Product profile-----------------------------------------------------------------2 4、Description ------------------------------------------------------------------2 4.1 Transmitter --------------------------------------------------------------------2 4.2 Receiver -----------------------------------------------------------------------3 4.3 Accessory----------------------------------------------------------------------3 5、Wiring installment------------------------------------------------------------4 5.1 Carrier connection diagram-------------------------------------------------4 5.2 Receiver connection diagram-----------------------------------------------5 6、Usages -------------------------------------------------------------------------5 6.1 Channel settings --------------------------------------------------------------5 6.2 Video record ------------------------------------------------------------------6 7、Working indicator-------------------------------------------------------------6 7.1 Transmitter indicator----------------------------------------------------------6 7.2 Receiver indicator-------------------------------------------------------------6... -
Page 3: 1、Disclaimer
FOXTECH HOBBY CO., LTD and its affiliated companies will not hold any legal liability. The copyright of this user manual belongs to FOXTECH HOBBY CO., LTD. All rights reserved. Reproduction shall not be made in any form without permission. -
Page 4: 3、Product Profile
1.Please make sure that all connecting wires are fastened and connected correctly. 2.There is no entry into any foreign body (e.g. liquid,sand,etc.) 3. S1+ needs to 40 seconds to turn on, after that, can transfer video. 4.Please ensure that there is no interference in the surrounding environment with the same frequency and high power wireless transmission equipment, otherwise the receiver may not receive the video normally. -
Page 5: Receiver
Receiver 1、Power source/data transmission interface 2、HDMI video output interface 3、Power source indicator 4、Connection status indicator 5、Recording status indicator 6.7、Antenna interface 8、REC start recording /stop recording button 9、USB interface Antenna accessory Antenna Power source/data transmitter cable ×2 ×2 HDMI cable D to D ×1 Whip antenna ×2... -
Page 6: 5、Wiring Installment
Installation and wiring Take Muti-rotor UAV for an example: Connection diagram ： Fix the transmitter on the suitable Station of drone(by 3M plug or strap), and then install antenna with vertical down. Next, connect camera and transmitter with HDMI cable (or with CVBS cable), and then connect to power. -
Page 7: Receiver Connection Diagram
Receiver connection diagram: ： Connect the HDMI of receiver to LCD display. And connect the antenna ,fasten it. Installation notes： 1.Keep the antenna away from metal equipment of drone, and the antenna should have wide space within 20cm to other objects to ensure efficient transmission; 2.Make a proper planning about frequency of all wireless equipment on UAV. -
Page 8: 7、Working Indicator
2.Start video recording by short press receiver “SW”, and the OSD on the display indicates: “Recording XX：XX：XX”(XX represent the hour, minute and second of recorded video) 3.To stop recording, please press “SW” again. After finishing recording, video is automatically saved to USB storage device in “mp4_record”. -
Page 9: 8、Specification Parameter
LED indicator Transmitter status Description Product Video transmitter 3: Power ; 2: connection status indicator Power source of device works normally 3: Power source indicator Device is not power on or device is abnormal after powering on（please contact FAE） 2: connection status Green The receiver and transmitter connect successfully. - Page 10 Specification Model Transmitter Antenna interface 50Ω SMA Encoded/Decoded H.265/H.264 Modulation OFDM Resolution 1080p @60/50/30 Vedio input HDMI ( Voltage DC 9~28V Frequency UART 3.3V TTL 1430MHz-1444MHz UART Rate Bit rate 3~12Mbps 115200 Transmitting 1 Start, 8 Data, 23~25dBm power UART Format Stop, parity Bandwidth...
-
Page 11: Receiver Indicator
FAQ (frequently asked question) Questions Possible reason Solution ●Interface of power source is poor ●Turn off power source, plug in to contact socket again, after Device can not power up, power confirming, connect to power source indicator not light source. ●Damaged cord ●Replace new power cord Receiver... - Page 12 UART rate is 115200 ●Default setting traffic control), 1 start,8data,1 stop, parity checking. Please configure to the ●Related configuration above parameters. If it is not convenient Data transmitting parameters are incorrect modify, please contact is abnormal manufacturer. ●Interface connection error ●Check that wire connection is correct with reference to the pin definition Video can not be recorded...
