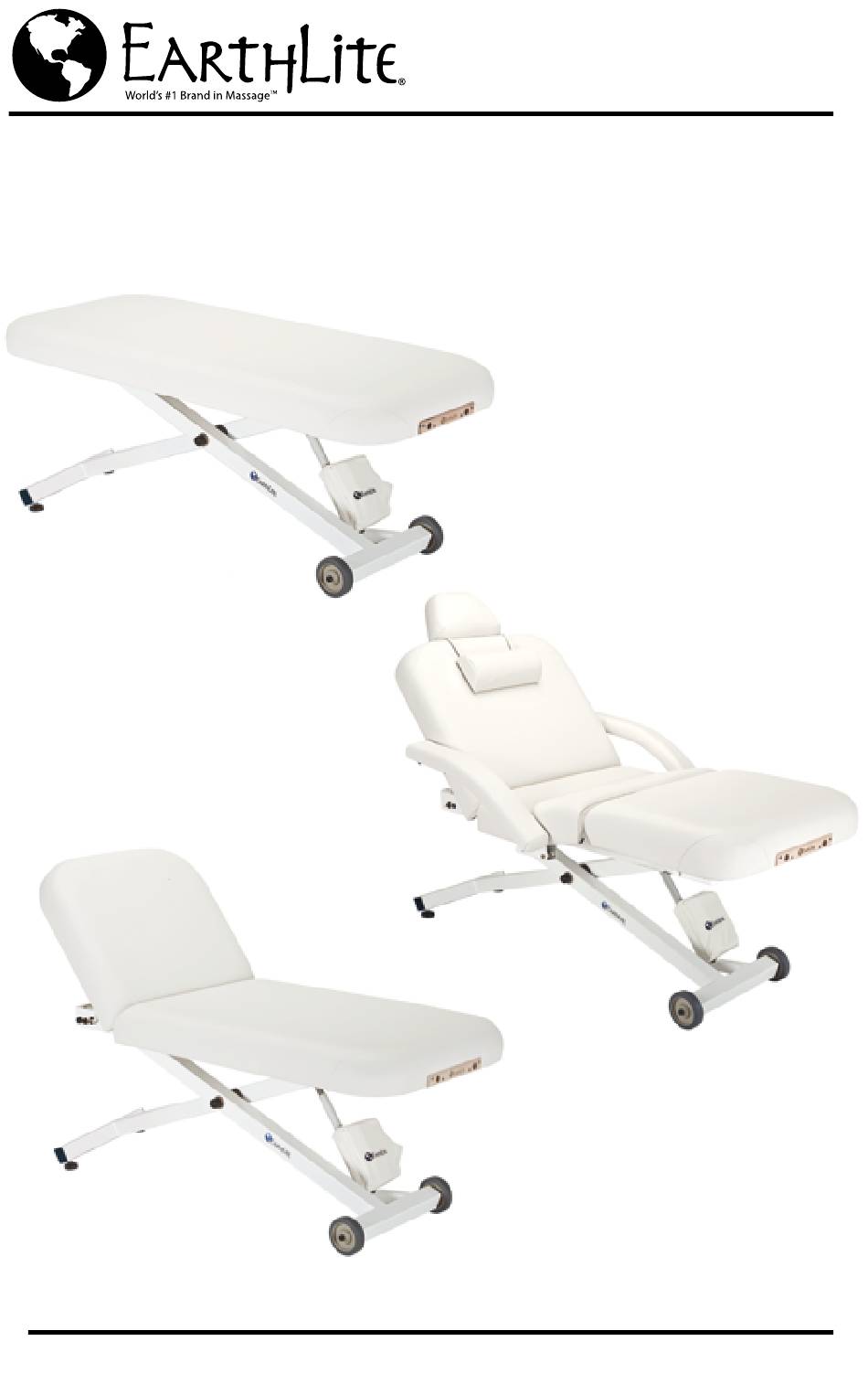

USER MANUAL
Ellora
Electric Lift Table
1-400-0026 • Rev A • 4/9/18
© Earthlite 2018, All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ellora Salon Top and is the answer not in the manual?

Questions and answers

Summary of Contents for Earthlite Ellora Salon Top

  • Page 1 USER MANUAL Ellora Electric Lift Table ™ 1-400-0026 • Rev A • 4/9/18 © Earthlite 2018, All Rights Reserved...
  • Page 2 Legal Notice The information provided in this document is intended for informational purposes only and is subject to change without notice. The information provided in this document should not be construed as a commitment by Earthlite ® © Copyright 2018 Earthlite assumes no responsibility for the accuracy or ®...
  • Page 3: Table Of Contents

    INTRODUCTION Congratulations on your purchase! Earthlite’s Ellora is perfect for day spas, medi-spas, and resorts. It ™ features a smooth yet powerful electric lift actuator complete with on-demand height adjustments. This stunningly designed table provides exceptional comfort, function, and years of trouble-free use.
  • Page 4: Safety, Warnings, And Symbol Definitions

    Familiarize yourself with the following or fatal injury. Safety & Warning symbols. They are designed to prevent damage and injury to you, your clients, and your new Earthlite product. Indicates a potentially hazardous situation which could result in serious injury.
  • Page 5 SAFETY INFORMATION To reduce the risk of burns, fire, electric shock, or injury to persons: 1) Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer. 2) Do not operate this equipment unless properly trained. 3) Install this furnishing in treatment area not accessible to the public.
  • Page 6: Specifications

    TABLE SPECIFICATIONS FEATURES SPECIFICATIONS OPTIONS • Widths: 28” , 30” , 32” • Manual Tilt Top • Heavy Duty Steel Frame • Reliable Motor • Length: 73” • Non-Electric Pneumatic-Assist • Luxuriously Upholstered Top • Height Range: 18” – 37” (Tilt or Salon Top) •...
  • Page 7: Understanding Components

    UNDERSTANDING COMPONENTS Getting to Know Your Table Your new Ellora lift table ships ready to connect right out of the box, and knowledge of each common ™ component of the table will ensure a successful experience every time you use it. The following is a list of components that come with each Ellora stationary table.
  • Page 8: Plug And Electrical Information

    PLUG DESCRIPTIONS & ELECTRICAL SPECIFICATIONS China PLUG DESCRIPTION Asia North America UK / Middle East Europe 120V AC 220V AC 220V AC 220V AC ELECTRICAL SPECIFICATIONS SERVICE 120V / 60Hz 220V / 50Hz MAX. AMPERAGE 2.5A VOLTAGE 120V AC 220V AC MAX.
  • Page 9: Etl Compliant Option

    ETL COMPLIANT OPTION Safety Lockout Your table may be equipped with a safety lockout. The table will only operate when the magnetic pin is inserted into the lock. Remove pin when table is not in use to prevent unauthorized use and potential injury.
  • Page 10: Removal From Crate

    TABLE REMOVAL FROM SHIPPING CRATE All Ellora table models come completely assembled and ready to use. If you did not have your table shipped with ‘white glove’ service, you may be required to remove your table from its shipping crate. We highly recommend that at least two people conduct the following steps to uncrate the table.
  • Page 11: Placement & Installation

    PLACEMENT AND INSTALLATION Once your table is placed safely on the floor, temporarily plug the table into a power outlet and using the foot control, raise the table to waist height, which will make it easier for moving. Once the table is at the desired height, unplug the power cable from the outlet and place the power cable along with the foot control on top of the table to prevent a tripping hazard.
  • Page 12: Foot Control

    HEIGHT ADJUSTMENT The Ellora comes out of the shipping crate ready to go to work. The foot control is already connected, ™ allowing you to simply raise and lower the table with your feet while your hands remain free to focus on your clients.
  • Page 13: Manual Back Tilt

    MANUAL BACK TILT Salon Top & Tilt Top Tables Every Ellora™ with manual tilt functionality is equipped with a newly designed locking tilt mechanism which allows you to tilt the back section of the table in increment levels to accommodate your clients. Each increment increases the back tilt by 10º.
  • Page 14: Pneumatic Back Tilt

    PNEUMATIC BACK TILT Salon Top & Tilt Top Tables For pneumatic Ellora™ tables that come equipped with a non-electric pneumatic assist mechanism, the following steps will guide you through operating the pneumatic back tilt control and adjusting the back to the desired level: Step 1 Step 2 Locate the pneumatic back tilt...
  • Page 15: Pneumatic Leg Break

    PNEUMATIC LEG BREAK Salon Top Table Ellora™ tables with the pneumatic option come equipped with the same non-electric, pneumatic assist mechanisms as mentioned above. The following steps will guide you through operating the pneumatic hand control: Step 1 Step 2 Locate the pneumatic leg break con- The handle is set to the locking trol, which is located under the front...
  • Page 16: Electric Tilt & Leg Break

    ELECTRIC TILT & LEG BREAK Salon Top and Tilt Top Table Electric Ellora™ Salon or Tilt top tables are equipped with a hand control. The hand control is already connected and ready for use. See below for explanation of each button’s functionality. Lower Leg Section Raise Leg Section (Salon Only)
  • Page 17: Replacing Foot Glide Leveler

    This helpful troubleshooting guide will provide you with information about how to recognize a problem with your Ellora™, determine possible causes, and find a solution. In the event your specific situation is not covered in this guide, please contact Earthlite at 800-872-0560 or 760-599-1112 so our technical support department can assist you.
  • Page 18: Basic Maintenance

    • Bolsters Alternative cleansing methods may cause serious damage to your table. Such damage would not be covered under the Earthlite warranty program. The powder coated steel frame can be kept clean with Steel • Main Steel Frame a mild detergent and warm water mix.
  • Page 19: Lifetime Limited Warranty

    Earthlite. In the event that the product is returned and tested to show there is no defect, Earthlite will ship the original product back to the customer, at the customer’s expense.
  • Page 20: Contact Us

    Hours of operation: 990 Joshua Way Monday - Friday Vista, CA 92081 USA 8 a.m. to 5 p.m. PST (800) 872-0560 (760) 599-1112 Int’l Saturday - Sunday (866) 599-7374 fax Closed info@earthlite.com Visit us online at: www.earthlite.com Join us on Facebook ®...

This manual is also suitable for:

Ellora tilt topEllora flat top
