*tables shown with opti onal accessories and/or fi nishes
© Earthlite 2019, All Rights Reserved
Everest Spa
USER MANUAL
Everest
Everest Eclipse
Everest Eclipse
Everest Eclipse
Everest Lift Table
1-400-0011 • Rev D • 4/30/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Everest and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Earthlite Everest

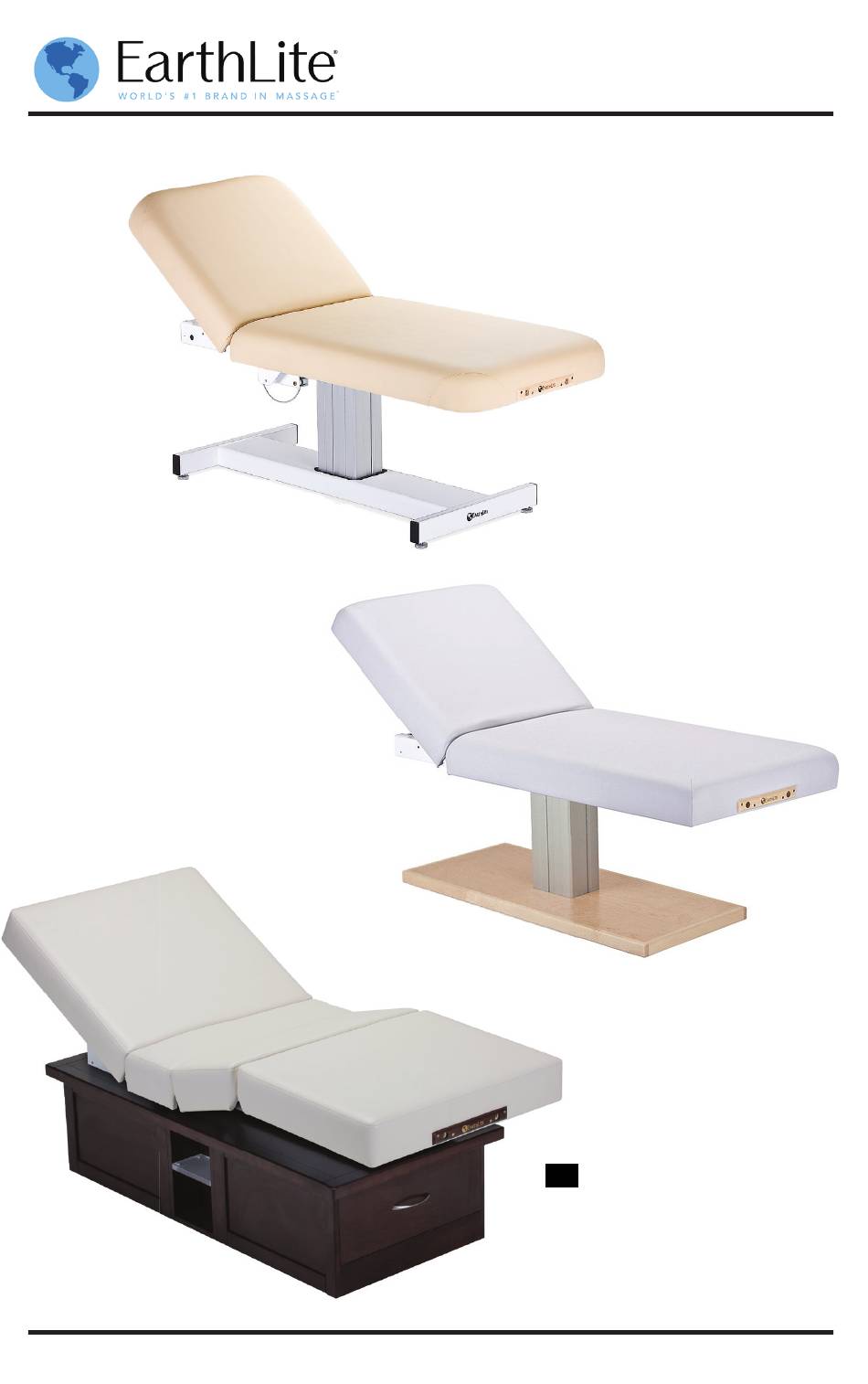

  • Page 1 USER MANUAL Everest Lift Table Everest Everest Spa Everest Eclipse Everest Eclipse Everest Eclipse 1-400-0011 • Rev D • 4/30/19 *tables shown with opti onal accessories and/or fi nishes © Earthlite 2019, All Rights Reserved...
  • Page 2 Earthlite® ment. This document may contain technical inaccura- cies or errors. Earthlite® makes no expressed or implied All rights reserved. This document or warranties of any kind concerning the information con- any portion thereof may not be repro-...
  • Page 3: Table Of Contents

    The elegant single column design of the Everest and Everest Spa allows for plenty of clearance underneath the table for leg and knee room, while still providing exceptional strength. The Everest Eclipse adds a beautiful hardwood cabinet, providing a more custom and upscale look.
  • Page 4: Section 1: Safety Information

    Familiarize yourself with the following or fatal injury. Safety & Warning symbols. They are designed to prevent damage and injury to you, your clients, and your new Earthlite product. Indicates a potentially hazardous situation which could result in serious injury.
  • Page 5 SECTION 1: SAFETY INFORMATION To reduce the risk of burns, fire, electric shock, or injury to persons: 1) Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer. 2) Do not operate this equipment unless properly trained.
  • Page 6: Section 2: Product Overview

    SECTION 2 : PRODUCT OVERVIEW Everest Everest Spa Everest Eclipse Product Image* Flat, Manual Tilt, Flat, Manual Tilt, Available Pneumati c Tilt, Pneumati c Tilt, Flat, Manual Tilt, Tops Pneumati c Salon, Pneumati c Salon, Electric Tilt, Electric Salon Electric Tilt, Electric Salon...
  • Page 7: Section 3: Installation

    (Counterclockwise will lower the overall height, clockwise will raise the overall height) Table Accessories All Everest tables come with outlets at both ends, specifi cally designed for providing a fi xed locati on for FacePillow platf orms, salon headrest, and other accessories.
  • Page 8: Section 4: Operating Instructions

    Weight & Lift Capacities 600 lbs. The Everest is powered by a heavy-duty 3-stage lift column. The recommended lift capacity for all Everest tables is 600 lbs. The (optional) back and leg section has a maximum weight 50 lbs.
  • Page 9: Electrical Specifications

    SECTION 4 : OPERATING INSTRUCTIONS Electrical Specifications Spec North America Europe/Asia Input Voltage 120 VAC 220 VAC Input Frequency 60 Hz 50 Hz Consumption 2.5 Amps, 287.5 Watts 1.3 Amps, 287.5 Watts Output 32 VDC 32 VDC Duty Cycle 10%, 2 min/18 min 10%, 2 min/18 min China PLUG DESCRIPTION...
  • Page 10: Hand/Foot Control

    SECTION 4 : OPERATING INSTRUCTIONS Foot Control Operation Your Everest foot control is already connected and ready for use. The foot control allows you to simply raise and lower the table, allowing convenient hands-free adjustments. Raise Entire Lower Entire Table...
  • Page 11: Pneumatic Adjustments

    SECTION 4: OPERATING INSTRUCTIONS Pneumatic Back Tilt (Optional on Selected Models) Step 1 Step 2 Locate the pneumatic back tilt The handle is set to the locking handle, which is located on the position. right side under the back tilt. Step 3 Step 4 Squeeze / press the handle to...
  • Page 12: Manual Adjustments

    Warming Drawer Operation (Optional for Eclipse) IMPORTANT: Please refer to separate Warming Drawer User Manual for safety warnings and instructions for use. If you did not receive one, contact Earthlite Customer Service before use to be sent an electronic copy.
  • Page 13: Section 5: Care & Maintenance

    • Bolsters Alternative cleansing methods may cause serious damage to your table. Such damage would not be covered under the Earthlite warranty program. The powder coated steel frame can be kept clean with Steel • Main Steel Frame a mild detergent and warm water mix.
  • Page 14: Troubleshooting

    In the event your specific situation is not covered in this guide, please contact Earthlite so our technical support department can assist you. Beyond the troubleshooting guide below, do not attempt to repair the table yourself.
  • Page 15: Warranty Information

    SECTION 5: CARE & MAINTENANCE Absolute Satisfaction Return Policy If you are not completely satisfied with your Earthlite portable table, chair, or accessory, you may return it within thirty (30) days for a full refund (excluding shipping & handling charges on the original order).
  • Page 16: Contact Us

    Vista, CA. 92081 8:00 a.m. to 5 p.m. PST (800) 872-0560 (760) 599-1112 Int’l Saturday - Sunday (866) 599-7374 fax Closed info@earthlite.com Visit us online at: earthlite.com Connect with us Join us on Follow us on Facebook on Linked In Twitter...

This manual is also suitable for:

Everest eclipseEverest spa
