- Page 1 Installation and Operating Manual Video Intercom Kit with 7 "display and 2-wire connection Model: EAGLE Preorder NO: VDPK-EAGLE-WL, VDPM-EAGLE-WL...
-
Page 2: Table Of Contents
CONTENTS Features ........Package Contents ....... System installation...... Wiring diagram ......Operation instruction ....Technical specifications ..... Troubleshooting ...... -
Page 3: Features

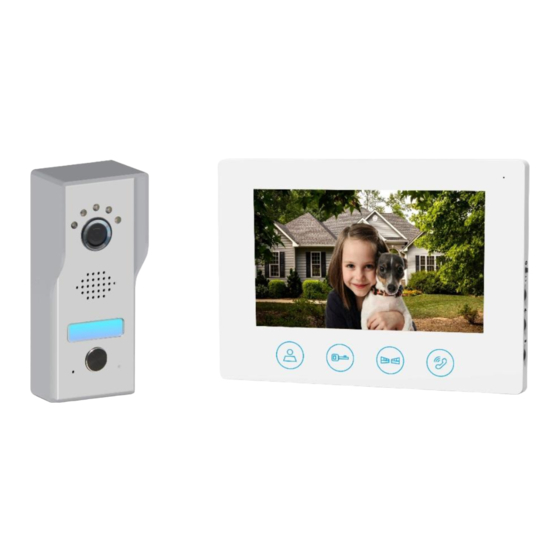

Product description The color video doorphone is composed of an indoor monitor of 7 inch, an out - door unit, and a power supply. It can be used to monitor, call, intercom and unlock. Suitable for villa, single house, hotel, office and etc, giving you the combined benefit of security and convenience . -
Page 4: System Installation
Take the name plate out and write the name on the paper. Fix the name plate and metal cover back. Screw the panel well with a screw driver. ④.Refer to the wiring diagram to do the wire connection. -
Page 5: Wiring Diagram
Wiring diagram Wiring instructions: DATA DATA LOCK+ LOCK- EXIT EXIT Electronic lock Blocare poartă Outdoor unit Indoor unit When the working distance is 10m, use twisted-pair or RVV2×0.3mm².If the user want to lengthen the cable into 10m- 30m, use twisted-pair or RVV2 x 0.5mm² connecting wire. If the user wants to lengthen the cable into 30m- 50m, use twisted-pair or RVV2 x 0.75mm²... -
Page 6: Technical Specifications
Instrucțiuni de utilizare Unitatea exterioară Protecție împotriva ploii Lumină pentru vedere pe timp de noapte Cameră Difuzor Plăcuță nume/cititor Buton apelare Microfon Technical specifications Indoor unit 7" Screen size 800(H)×480(W) Resolution 154.08 (H)×86.58 (W)mm Effective area 0.0642(W)×0.1790(H)mm Dot pitch 214(W)X152(H)X18(D)mm Outline size Adapter input voltage AC100-240V 50Hz/60Hz... - Page 7 Safety instruction · Keep the indoor unit away from high temperature such as near an oven or under direct sunlight, and high humidity such as bathroom and greenhouse. · Do not install the indoor unit close to a television or position with strong jamming- the signals the TV and the intercom use can be interfered with each other.
-
Page 8: Troubleshooting
Caution: The UNLOCK button on the indoor unit, can only be used while monit- oring or talking,10s later after unlocking, the screen will turn off. The GATE UNLOCK button on the indoor unit, can be used at any time. Troubleshooting Problem Solutions ·... - Page 9 Waste electrical and electronic equipment are a special waste category, collection, storage, transport, treatment and recycling are important because they can avoid environmental pollution and are harmful to health. Submitting waste electrical and electronic equipment to special collection centers makes the waste to be recycled properly and protecting the environment.
