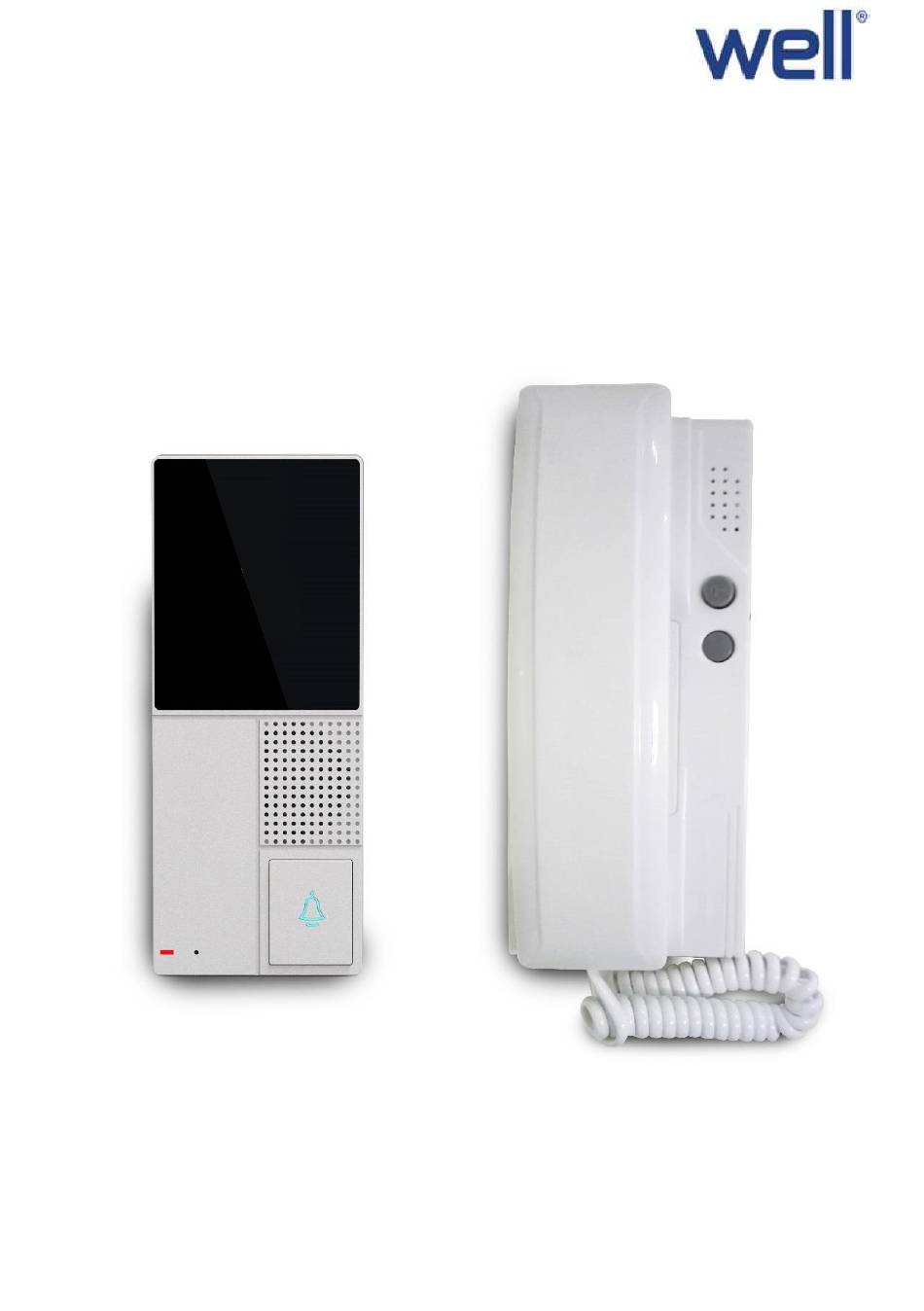

- Page 1 Installation and Operating Manual 2-Wire Audio Intercom Model: PIGEON Preorder NO: ADPK-PIGEON-WL...
- Page 2 CONTENTS Features ........1 Package Contents ......1 Safety Instruction ......1 System Installation ....... 2 Technical Specifications ....4 Troubleshooting ......4...
-
Page 3: Package Contents
Features • Used as duplex doorphone as well as inner intercom • Clear intercom without noise • The talking distance is less than 150m • 2 wires for connecting all the units • Electronic-lock release function • The outdoor unit meets IP44 water-proof standards •... - Page 4 System Installation A. Indoor Unit UNLOCK MELODY ①Drill proper holes in the wall according to the distance on the back shell of the indoor unit, plug up the screw holes with silicone caps and then screws.. ②Use RVV4×0.3mm² cables. Connect the wiring terminals L1, L2 of indoor unit with wiring terminals 1 、2 of outdoor unit respectively.
- Page 5 Outdoor unit (with rain shade) Fixați unitatea la o înălțime între 1,4 și 1,7 m de la sol (în funcție de efectul camerei), evitând lumina directă soarelui. Drill proper holes in the wall, plug up the screw holes with silicone caps. ②.
-
Page 6: Technical Specifications
Technical Specifications Input Voltage AC100~240V 50/60Hz Adapter Output DC12V 1A Static state <1 W Working state <2 W Power Consumption <20mW Audio Anti-distortion Power 1K~5KHz Frequency Response Operating Temperature -20℃~+50℃ Relative Humidity 10%~90% RH L115 x W47 x H30mm Outline Size : mm(outdoor unit) Troubleshooting Problem Solutions...
