Summary of Contents for Innovative Technology ICU

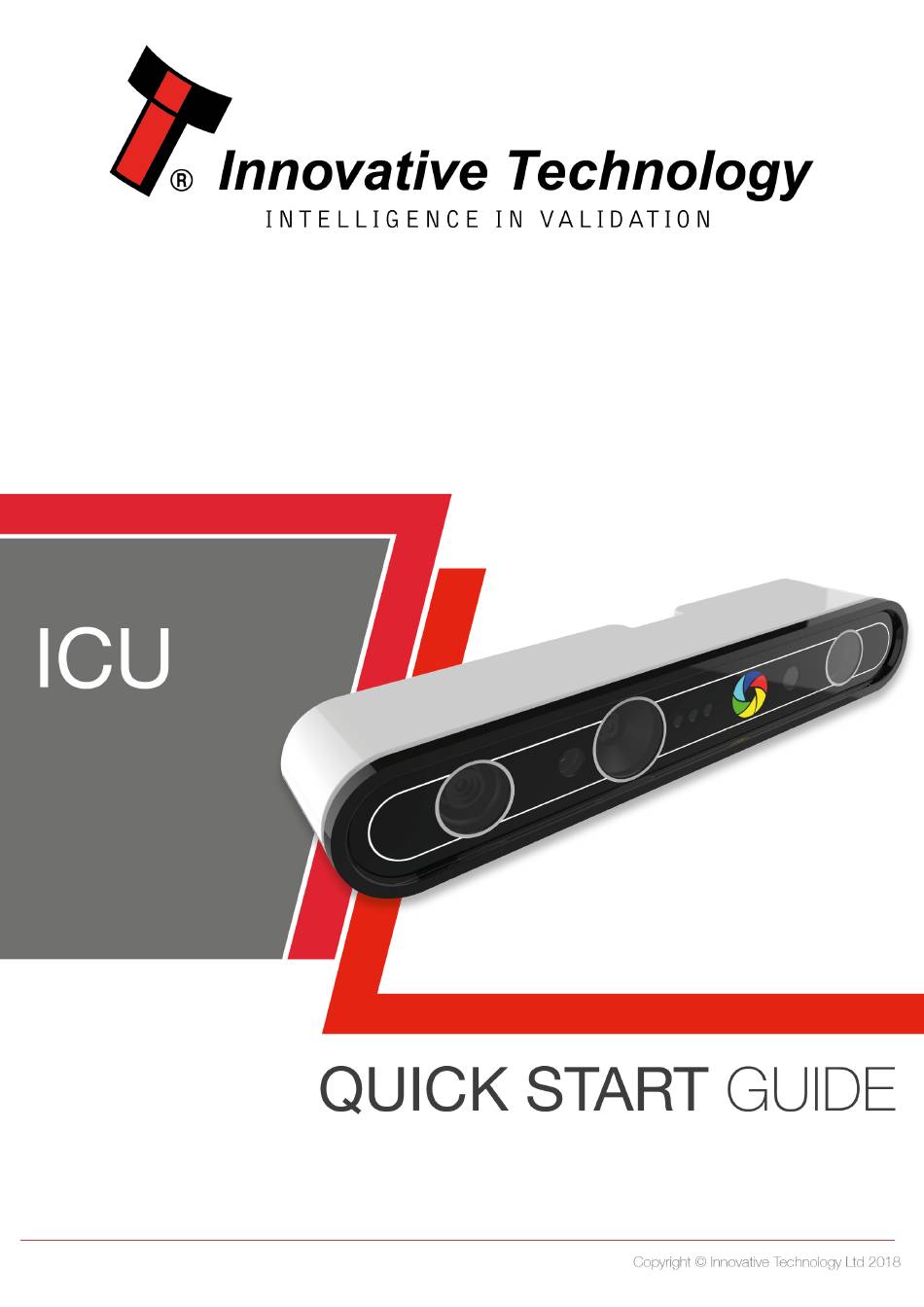

- Page 1 Doc: ICU Quick Start Guide Version: 1.2...
-
Page 2: Table Of Contents
..............................2 OPYRIGHT ............................2 IMITED ARRANTY ........................3 RODUCT AFETY NFORMATION ..............................3 ISCLAIMER GET TO KNOW YOUR ICU DEVICE ....................... 6 ..............................6 RONT ..............................7 ............................... 7 OTTOM ............................ 8 EVICE TATUS IGHTS 2.4.1 Boot Up Sequence ..........................8 2.4.2... -
Page 3: Document Introduction
Reseller, and extending for the length of time stipulated by Innovative Technology Ltd. A list of Innovative Technology Ltd offices can be found in every section of this manual set. If the product proves defective within the applicable warranty period, Innovative Technology Ltd will repair or replace the product. -
Page 4: Product Safety Information
Innovative Technology Ltd shall not be liable under this warranty if it’s testing and examination disclose that the alleged defect in the product does not exist or was... - Page 5 Napájecí svorky a/nebo konektory: Nejsou sledované pro externí kabeláž • Sledovaný stupeň znečištění je: 2 • Následující krytí konečného produktu jsou požadované: Mechanické, Protipožární Copyright © Innovative Technology Ltd 2018 Doc: ICU Quick Start Guide Version: 1.2 Page 4 of 17...
- Page 6 U Quick Start Guide << Back to Contents Notice – IR Emitting Device This device emits IR. Copyright © Innovative Technology Ltd 2018 Doc: ICU Quick Start Guide Version: 1.2 Page 5 of 17...
-
Page 7: Get To Know Your Icu Device
Camera used for face depth estimation Visible Camera Camera used for face age estimation and face recognition Status LEDs Lights to show the status of the ICU, see Section 2.4 for more information ICU Logo Flashes during use to show... -
Page 8: Rear View
Slot for micro SD card. Used for future expansion/data port. Camera Mount Optional mounting point (e.g. for Camera Tripod). See Section 3.3 for details. Copyright © Innovative Technology Ltd 2018 Doc: ICU Quick Start Guide Version: 1.2 Page 7 of 17... -
Page 9: Device Status Lights
Age Verification Initialised Boot-Up Completed After the boot up sequence is completed the green LED on the ICU device will remain illuminated. When communications are received from the host machine the ICU logo will begin to flash to indicate receipt and response. The boot-up sequence typically takes around 1minute to complete. -
Page 10: Machine Integration
25mm 3.4 Bezel Mounting It is possible to remove the front face of the ICU device to mount it inside a machine. This lets you secure the face of the unit to the outside of the machine, while mounting the ICU device behind it inside the machine:... - Page 11 The minimum and maximum widths of the machine panel is shown in the diagram below (measurements in millimetres): Bezel ICU Device Copyright © Innovative Technology Ltd 2018 Doc: ICU Quick Start Guide Version: 1.2 Page 10 of 17...
-
Page 12: Installation And Use
• Locate ICU device 60-80 cm from the subject’s face. • Place the ICU device so that the subject will look into the camera. • Ensure the subject’s face will have good illumination. -
Page 13: Software Integration
SSP interface over the same USB connection. 5.1 SSP Communication Flow On connecting the ICU to a PC, standard COM Port and UVC drivers will be enumerated. These are then used for interfacing with your application. - Page 14 U Quick Start Guide << Back to Contents Poll commands should be sent every 200ms. If the ICU does not receive poll command for 5 seconds, it will automatically revert to the disabled state. An Enable command (0x0A) must be sent to the ICU before any further processes will be performed.
-
Page 15: Uvc Webcam
<< Back to Contents 5.2 UVC Webcam USB Video Class (UVC) is a defined standard for USB video devices. To simplify development, the ICU falls into this family of devices. The following indicates a typical UVC application interaction within an operating system (OS): More information on the USB Video Class can be found here: www.usb.org/developers/docs/devclass_docs/... -
Page 16: Appendix
U Quick Start Guide << Back to Contents 6 APPENDIX 6.1 2D Drawings 6.1.1 ICU Device Copyright © Innovative Technology Ltd 2018 Doc: ICU Quick Start Guide Version: 1.2 Page 15 of 17... -
Page 17: Power Cable
U Quick Start Guide << Back to Contents 6.1.2 Power Cable Copyright © Innovative Technology Ltd 2018 Doc: ICU Quick Start Guide Version: 1.2 Page 16 of 17... -
Page 18: Approvals Fcc
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Copyright © Innovative Technology Ltd 2018 Doc: ICU Quick Start Guide Version: 1.2...
