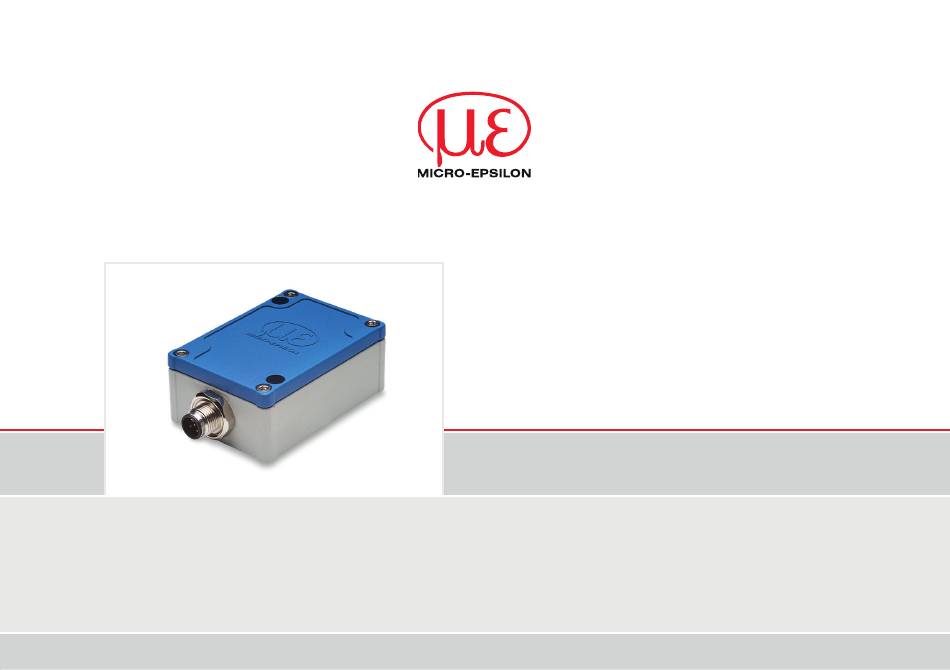

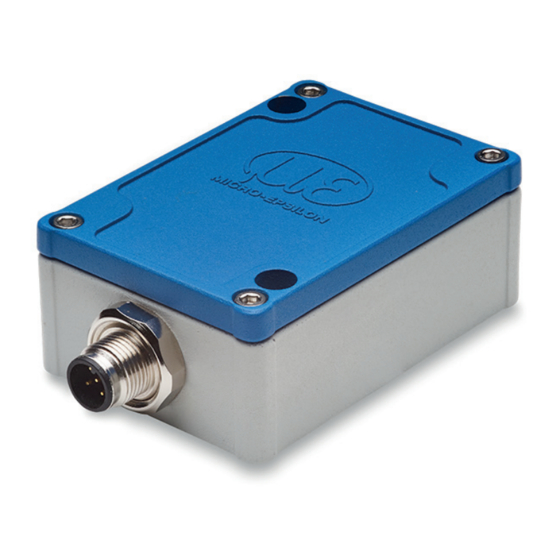

ACC5703
MICRO-EPSILON MESSTECHNIK GmbH & Co. KG
Königbacher Str. 15 · 94496 Ortenburg / Germany
Tel. +49 (0) 8542 / 168-0 · Fax +49 (0) 8542 / 168-90
info@micro-epsilon.de · www.micro-epsilon.com
Operating Instructions
inertialSENSOR
ACC5703

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the inertialSENSOR ACC5703 and is the answer not in the manual?

Questions and answers

Related Manuals for Me inertialSENSOR ACC5703

Summary of Contents for Me inertialSENSOR ACC5703

  • Page 1 Operating Instructions inertialSENSOR ACC5703 ACC5703 MICRO-EPSILON MESSTECHNIK GmbH & Co. KG Königbacher Str. 15 · 94496 Ortenburg / Germany Tel. +49 (0) 8542 / 168-0 · Fax +49 (0) 8542 / 168-90 info@micro-epsilon.de · www.micro-epsilon.com...
  • Page 2 3-axes acceleration sensor MICRO-EPSILON MESSTECHNIK GmbH & Co. KG Königbacher Strasse 15 94496 Ortenburg / Germany Tel. +49 (0) 8542 / 168-0 Fax +49 (0) 8542 / 168-90 e-mail info@micro-epsilon.de www.micro-epsilon.com...

  • Page 3: Table Of Contents

    Contents Safety ............................5 Symbols Used ..............................5 Warnings ................................5 Notes on CE Marking ............................6 Intended Use ..............................6 Proper Environment ............................7 Functional Principle, Technical Data ..................8 Functional Principle ............................8 Structure and Electrical Connection........................ 8 Technical Data ..............................
  • Page 4 Appendix Accessories ..........................23 PC Software sensorTOOL ...................... 23 Factory Settings ........................23 Digital Interface RS485 ......................24 A 4.1 Hardware Interface ............................24 A 4.2 Protocol ................................24 A 4.2.1 Reading Measurement Data......................25 A 4.2.2 Example Transmission of a Measurement Value ................. 29 ACC5703...

  • Page 5: Safety

    Safety Safety System operation assumes knowledge of the operating instructions. Symbols Used The following symbols are used in these operating instructions: Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury. Indicates a situation that may result in property damage if not avoided. Indicates a user action.

  • Page 6: Notes On Ce Marking

    Safety Notes on CE Marking The following apply to the ACC5703: - EU Directive 2014/30/EU - EU Directive 2011/65/EU Products which carry the CE mark satisfy the requirements of the EU directives cited and the European harmonized standards (EN) listed therein. The EU Declaration of Conformity is available to the responsible authorities according to EU Directive, article 10, at: MICRO-EPSILON MESSTECHNIK GmbH &...

  • Page 7: Proper Environment

    Safety Proper Environment - Protection class: IP 67 - Operating temperature: -40 ... +85 °C (-40 ... +185 °F) - Storage temperature: -40 ... +85 °C (-40 ... +185 °F) - Ambient pressure: Atmospheric pressure 1) With M12 connector ACC5703 Page 7...

  • Page 8: Functional Principle, Technical Data

    Functional Principle, Technical Data Functional Principle, Technical Data Functional Principle With the principle of an acceleration sensor, forces that change the velocity of an object are measured and transformed into an electric output signal. Therefore the sensor is mounted on the maneuverable component. The expected moves correspond to the measurement axes.

  • Page 9: Technical Data

    Functional Principle, Technical Data Technical Data ACC5703-8 Model Number of axes ± 0 g … ± 8 g (configurable) Measuring range 0.016 mg Digital Resolution Current: < 0.24 mg / voltage < 0.31 mg Analog Typ. 30 µg / √Hz Noise <...
  • Page 10 Functional Principle, Technical Data ACC5703-8 Model DIN EN 60068-2-27 Shock (1500 g, 0.5 ms, half-sine shock, 3 x in each direction) Approx. 250 g Weight Die-cast aluminum Material Screw connection via mounting holes (M4) Installation M12 connector, 8-pin Connection < 500 ms Start-up time FSO = Full Scale Output All specifications valid at a room temperature of +25 °C (+77 °F)
  • Page 11 Functional Principle, Technical Data Response time Sampling frequency [Hz] Time [ms] 4000 0.88 2000 1.25 1000 2.03 3.51 6.52 12.59 62.5 24.43 31.25 47.84 15.625 96.5 7.813 189.83 3.906 384.56 Fig. 2 Table response time ACC5703 Page 11...

  • Page 12: Delivery

    Delivery Delivery Unpacking, Included in Delivery 1 Sensor ACC5703 1 Operating Instructions Carefully remove the components of the measuring system from the packaging and ensure that the goods are forwarded in such a way that no damage can occur. Check the delivery for completeness and shipping damage immediately after unpacking. If there is damage or parts are missing, immediately contact the manufacturer or supplier.

  • Page 13: Installation And Assembly

    Installation and Assembly Installation and Assembly Sensor Cable Assembly No sharp or heavy objects should be allowed to affect the cables. Avoid folding the cables. Do not bend more tightly than the minimum bending radius of the cables. > Damage or destruction of the cable, failure of the measuring device Do not crush the cable.
  • Page 14 Installation and Assembly 12 (.47) 26.5 (1.04) Mounting holes for M4 screws 12 (.47) 76 (2.99) Fig. 4 Dimensional drawing, dimensions in mm (inches), not to scale ACC5703 Page 14...

  • Page 15: Pin Assignment

    Installation and Assembly Pin Assignment Connect the open cable end in accordance with the color coding, see Fig. 5. Color Description White Output channel 2 Brown GND (Output) Green Output channel 3 Yellow RS485+ Gray Output channel 1 Black/pink GND (Supply) Blue RS485- Supply +...

  • Page 16: Continuous Operation Mode

    Installation and Assembly Selection of measurement axis (x, y, z) at every channel possible Off (zero output) Continuous mode, current 4 - 20 mA Continuous mode, voltage 0.5 - 4.5 V Switching mode, voltage 0 - 5 V Fig. 7 Operation modes of the analog output channels 4.4.1 Continuous Operation Mode The sensor makes the acceleration value available as analog output variable either as current or voltage...

  • Page 17: Switching Operation Mode

    Installation and Assembly Range digital [g] Resolution digital Resolution analog Resolution analog Sensitivity analog Sensitivity analog RS485 [mg] current [mg] voltage [mg] current [mA/g] voltage s[V/g] ±2 0.004 0.06 0.076 ±4 0.008 0.12 0.15 ±8 0.016 0.24 0.31 0.25 Fig. 9 Examples of resolution (mg) and sensitivity (mA/g) depending on the configured measurement range 4.4.2 Switching Operation Mode The switching mode, configurable via Software, switches the analog voltage output to 5 V when the acceleration value reaches...
  • Page 18 Installation and Assembly Sampling rate (Hz) Minimum hold time of switching status (ms) 4000 2000 1000 -2 g +2 g on-level off-level off-level on-level -4 g +4 g Acceleration in g 62.5 -8 g +8 g 31.25 Fig. 11 Hysteresis of the trigger-levels in switching 15.625 operation 7.8125...

  • Page 19: Configuration Of Sampling Rate And Low- And High-Pass Filter

    Installation and Assembly Configuration of Sampling Rate and Low- and High-pass Filter Parameters, like sampling rate or filter frequencies, are adaptable in a wide range in order to match the re- spective application. The high-pass is configured to reduce influences of low frequencies especially to hide earth acceleration. The low-pass is configured to hide disturbances at high frequency.

  • Page 20: Digital Output Rs485

    Installation and Assembly Different low-pass filter settings, see Fig. 15, cause the sampling rate to change respectively. The chosen low- pass frequencies furthermore have influence on the available high-pass filter options. Low-pass f [Hz] Sampling rate [Hz] High-pass f [Hz] (configurable) (optional, configurable) 1000...

  • Page 21: Operation

    Operation Operation The measurement device is already calibrated when delivered. Calibration by the user is not necessary. After connection to the operating voltage, the sensor is immediately ready for operation and independently initiates the measurement. Additionally, the digital RS485 interface is ready to react to enquiries by the master (periodic retrieval of mea- sured data).

  • Page 22: Service, Repair

    Service, Repair Service, Repair If the sensor is defective, please send us the affected MICRO-EPSILON MESSTECHNIK parts for repair or exchange. GmbH & Co. KG Königbacher Str. 15 If the cause of a fault cannot be clearly identified, please 94496 Ortenburg / Germany send the entire measuring system to: Tel.

  • Page 23: Appendix A 1 Accessories

    Appendix | Accessories Appendix Accessories Designation Description PC3/8-M12 Power supply and output cable, 3 m long PC5/8-M12 Power supply and output cable, 5 m long PC10/8-M12 Power supply and output cable, 10 m long PC10/8-M12 Power supply and output cable, for drag chain use, 10 m long PC15/8-M12 Power supply and output cable, 15 m long PC2/8-Sub-D...

  • Page 24: A 4 Digital Interface Rs485

    Appendix | Digital Interface RS485 Digital Interface RS485 A 4.1 Hardware Interface The interface is a half-duplex RS485 interface, which means that one cable pair is jointly used for sending and receiving. Baud rate 230400 b/s Data format 1 start bit, 8 data bits, 1 parity bit even, 1 stop bit Bus address Fig.

  • Page 25: Reading Measurement Data

    Appendix | Digital Interface RS485 A 4.2.1 Reading Measurement Data Master: Request data Byte: Value: 0x10 0x4C 0x16 Slave: Response data Byte: Data[] Value: 0x68 0x68 0x08 0x16 Designations Start Delimiter (0x10: datagram without data, 0x68: datagram with variable length) Length (number of bytes without SD, LE, LE rep, SD rep, FCS, ED) LE rep LE repeated...
  • Page 26 Appendix | Digital Interface RS485 A new sampled measurement value is saved to the internal buffer of the sensor. The maximum number of values which can be saved is 19 for each measurement axis. Therefore, an enquiry by the master must reach the sensor within a certain time, that depends on the set sampling rate, in order to read the content from the internal memory and ensure uninterrupted sampling (periodic enquiry).
  • Page 27 Appendix | Digital Interface RS485 Byte Meaning Data format Data[0] Status byte (contains error flags, normally 0x00 8 bit Data[1] Long term values counter [bit 0:7] Uint 32 bit Data[2] Long term values counter [bit 8:15] Data[3] Long term values counter [bit 16:23] Data[4] Long term values counter [bit 24:31] Data[5]...
  • Page 28 Appendix | Digital Interface RS485 Byte Meaning Data format Data[n+4] Measured value 1 y-axis [bit 0:7] Float 32 bit Data[n+5] Measured value 1 y-axis [bit 8:15] Data[n+6] Measured value 1 y-axis [bit 16:23] Data[n+7] Measured value 1 y-axis [bit 24:31] Data[n+m] Measured value 1 z-axis [bits 0:7] Float 32 bit...

  • Page 29: A 4.2.2 Example Transmission Of A Measurement Value

    Appendix | Digital Interface RS485 A 4.2.2 Example Transmission of a Measurement Value Master: Request data Byte: Value: 0x10 0x7E 0x01 0x4C 0xCB 0x16 DA = Destination Address = 0x7E = 126 (slave address) SA = Source Address = 0x01 (master address) FCS = Checksum 0x7E 0x01 +...
  • Page 30 X9751392-A011068HDR MICRO-EPSILON MESSTECHNIK GmbH & Co. KG Königbacher Str. 15 · 94496 Ortenburg / Germany MICRO-EPSILON MESSTECHNIK Tel. +49 (0) 8542 / 168-0 · Fax +49 (0) 8542 / 168-90 info@micro-epsilon.de · www.micro-epsilon.com *X9751392-A01*...
