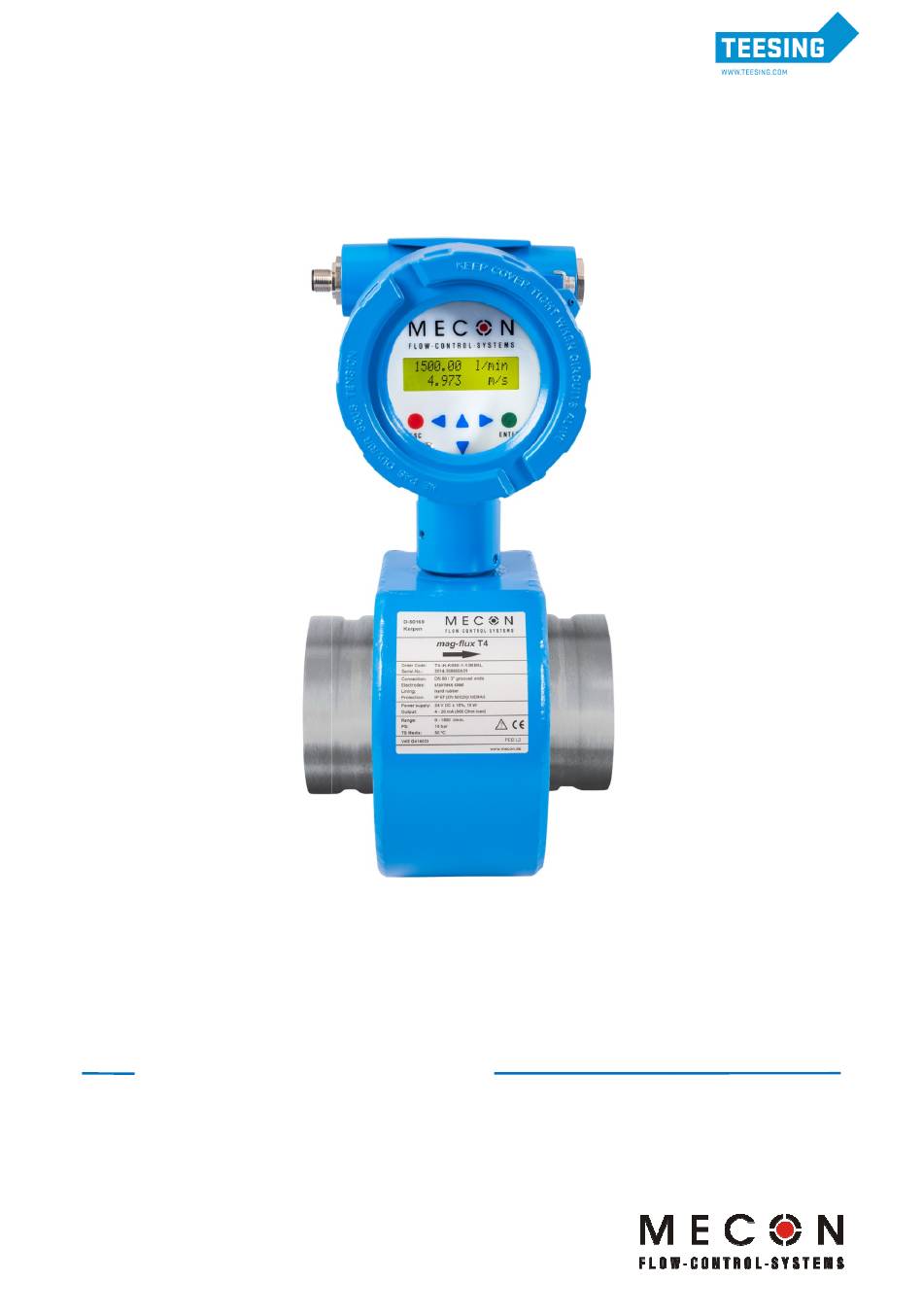

- Page 1 Electromagnetic Flow Sensor Electromagnetic Flow Sensor mag-flux T4 Operating Instructions Operating Instructions © MECON GmbH 11 /2015 OI_mag /2015 OI_mag -flux_T4_en WWW.TEESING.COM | +31 70 413 07 50...
- Page 2 All rights reserved. It is prohibited to reproduce this document, or any parts thereof, without prior written authorization of MECON Flow Control Systems GmbH. Subject to change without notice. Copyright 2015 by MECON Flow Control Systems GmbH - Röntgenstraße 105 – D-50169 Kerpen/Germany Page 2 / 28 www.mecon.de Operating instructions mag-flug T4 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50...
-
Page 3: Table Of Contents
Dimensions and weights ..................22 8 Error messages __________________________________________________________ 25 9 Return and disposal _______________________________________________________ 26 Returning tot he manufacturer ................26 Disposal....................... 26 Operating instructions mag-flux T4 www.mecon.de Page 3 / 28 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50... -
Page 4: Safety Instructions
Before taking the flowmeter out of operations, check that the unit is free of haza rdous media and de-pressurized. When returning mag- flux sensors to flux sensors to Mecon, please refer to the „ Product Return Form“ „ Product Return Form“ which is available for download on www.mecon.en/download... -
Page 5: Safety Instructions From The Manufacturer
The MECON GmbH assumes no liability for the consequences of misuse, modifications or repairs that were carried out by the customer without prior consultation. In the case of a complaint, the offering parts must be returned to MECON GmbH, unless otherwise agreed. -
Page 6: Certifications
Certifications 1.3 Certifications CE Marking The manufacturer certifies that the device mag-flux T4 meets all statutory requirements of the following EC directives. • VdS Approval: G414033 • Pressure equipment directive 97/23/EC The hazardous permissible media are liquids of fluid group 2... -
Page 7: Start-Up
MECON GmbH extends no express or implied warranty in regard to the applicability of the present MECON GmbH extends no express or implied warranty in regard to the applicability of the present MECON GmbH extends no express or implied warranty in regard to the applicability of the present document for any purpose other than that described. -
Page 8: Installation And Mode Of Operation
Using a cathodic protective unit to avoid corrosion, which put a voltage to the tube wall, it must be connected to terminal FE. The transmitter boards, control panel and internal switches are on the same potential as FE . Page 8 / 28 www.mecon.de Operating instructions mag-flug T4 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50... - Page 9 MECON GmbH accepts no liability for any loss or damage of any kind arising from improper operation of any product improper handling or use of any replacement part, or from external electrical or mechanical effects, overvoltage or lightning.
- Page 10 Any device returned for servicing is to be accompanied by a decontamination certificate! Form can be downloaded from our website www.mecon.en/Download. The device is to be accompanied by a document describing the problem. Please also quote the name of a contact person.
-
Page 11: Installation Instructions
The sensors may be installed either horizontally or vertically (Fig. 1); however, it must be ensured, that the axes of the electrodes are running horizontally (see directional arrow on the electrode). This will avoid erroneous measurements due to deposits or air bubbles on the electrodes. Operating instructions mag-flux T4 www.mecon.de Page 11 / 28 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50... - Page 12 The sensor must be installed in an area of the pipe which will always be filled with media. If a pipeline is not always filled, or in case of an open channel (drainage), the sensor must be installed in a siphon (Fig.3). Page 12 / 28 www.mecon.de Operating instructions mag-flug T4 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50...
- Page 13 1 m. Fig. 5 Installation at highest point Due to possible accumulation of gases, the sensor should not be installed at the highest point of a pipeline. Operating instructions mag-flux T4 www.mecon.de Page 13 / 28 11/2015 BA_mag-flux T4...
-
Page 14: Startup Conditions
The mag-flux M1 transmitter generates the inductive current necessary for the magnetic field and preprocesses the induced voltage at the electrodes. Page 14 / 28 www.mecon.de Operating instructions mag-flug T4 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50... -
Page 15: Service
Basically in case of new installation in the p Basically in case of new installation in the pipeline new seals have to be used. ipeline new seals have to be used. Operating instructions mag-flux T4 www.mecon.de Page 15 / 28 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50... -
Page 16: Device Description
Device description 5 Device desription 5.1 Scope of delivery 1. Flow meter mag-flux T4 2. Operating Instructions 3. Certificate (optional) Information! Please check the delivery for completeness using the packing list. 5.2 Device versions The entire measuring device comprises a flow sensor and a dedicated transmitter. Those can be delivered inly as a compact version. -
Page 17: Nameplate
Power supply Output: Electrical output Range: Measuring range Maximum pressure of the medium TS Media: Maximum temperature of the medium VdS Approval Operating instructions mag-flux T4 www.mecon.de Page 17 / 28 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50... -
Page 18: Description Code
0 - 18850 l/min. 0 - 5000 USGPM H-A250 Flange connection 10“ ANSI B16.5 150RF 0 - 29500 l/min. 0 - 7800 USGPM Page 18 / 28 www.mecon.de Operating instructions mag-flug T4 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50... - Page 19 Flange connection 10“ ANSI B16.5 150RF 0 - 29500 l/min. 0 - 7800 USGPM Display Code Line 1 Line 2 l/min. USGPM feet/s Operating instructions mag-flux T4 www.mecon.de Page 19 / 28 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50...
-
Page 20: Technical Data
Flange connection ≤ 50/2“: max. 20 bar Flange connection >50/2“: max. 16 bar Thread connection: max. 20 bar Protection classt IP 67 Page 20 / 28 www.mecon.de Operating instructions mag-flug T4 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50... - Page 21 • Solenoid chamber Steel • Lining Hard rubber/PTFE Electrodes material Stainless steel Corrosion –protection class C2 (low polluted atmosphere, dry climate) Operating instructions mag-flux T4 www.mecon.de Page 21 / 28 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50...
-
Page 22: Transmitter
Brown +24 V White not occupied Blue mass / 0 V Black not occupied Grey Analog output 4 – 20 mA Page 22 / 28 www.mecon.de Operating instructions mag-flug T4 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50... -
Page 23: Dimensions And Weights
32,0 The version with grooved ends may only be used in combination with VdS approved manufacturer of pipe couplings Minimax, Modgal and Victaulic (except pipe couplings of the type “Style77”). Operating instructions mag-flux T4 www.mecon.de Page 23 / 28 11/2015 BA_mag-flux T4... - Page 24 +0 / -2 4" +0 / -2 5" +0 / -2 6" +0 / -2 8" +0 / -2 10" +0 / -3 Page 24 / 28 www.mecon.de Operating instructions mag-flug T4 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50...
- Page 25 G 1 ¼ +0 / -2 G 1 ½ +0 / -2 48,5 +0 / -2 * minimum permissible pipe inner diameter Operating instructions mag-flux T4 www.mecon.de Page 25 / 28 11/2015 BA_mag-flux T4 WWW.TEESING.COM | +31 70 413 07 50...
-
Page 26: Error Messages
Empty pipe Ensure filling Pipe is empty. Exciter current Interruption / short circuit in the Return mag-flux T4 to MECON exitation coil. All signal outputs will be set to zero. meas. circ Flow rate too high V > 10 m/s... -
Page 27: Return And Disposal
- free use of mag free use of mag -flux T4 expected. Should it be neccessary to return the unit to return the unit to the Mecon GmbH, the f ollowing points should be noted ollowing points should be noted : Caution! -
Page 28: Www.teesing.com | +31 70 413 07
MECON GmbH Röntgenstr. 105 D- 50169 Kerpen/Germany Phone: +49 (0)2237 600 06 – 0 Fax: +49 (0)2237 600 06 – 40 Email: customerservice@mecon.de www.mecon.de Subject to change without notice Copyright © WWW.TEESING.COM | +31 70 413 07 50...
