Mecon mag-flux F5 Quick Start Manual

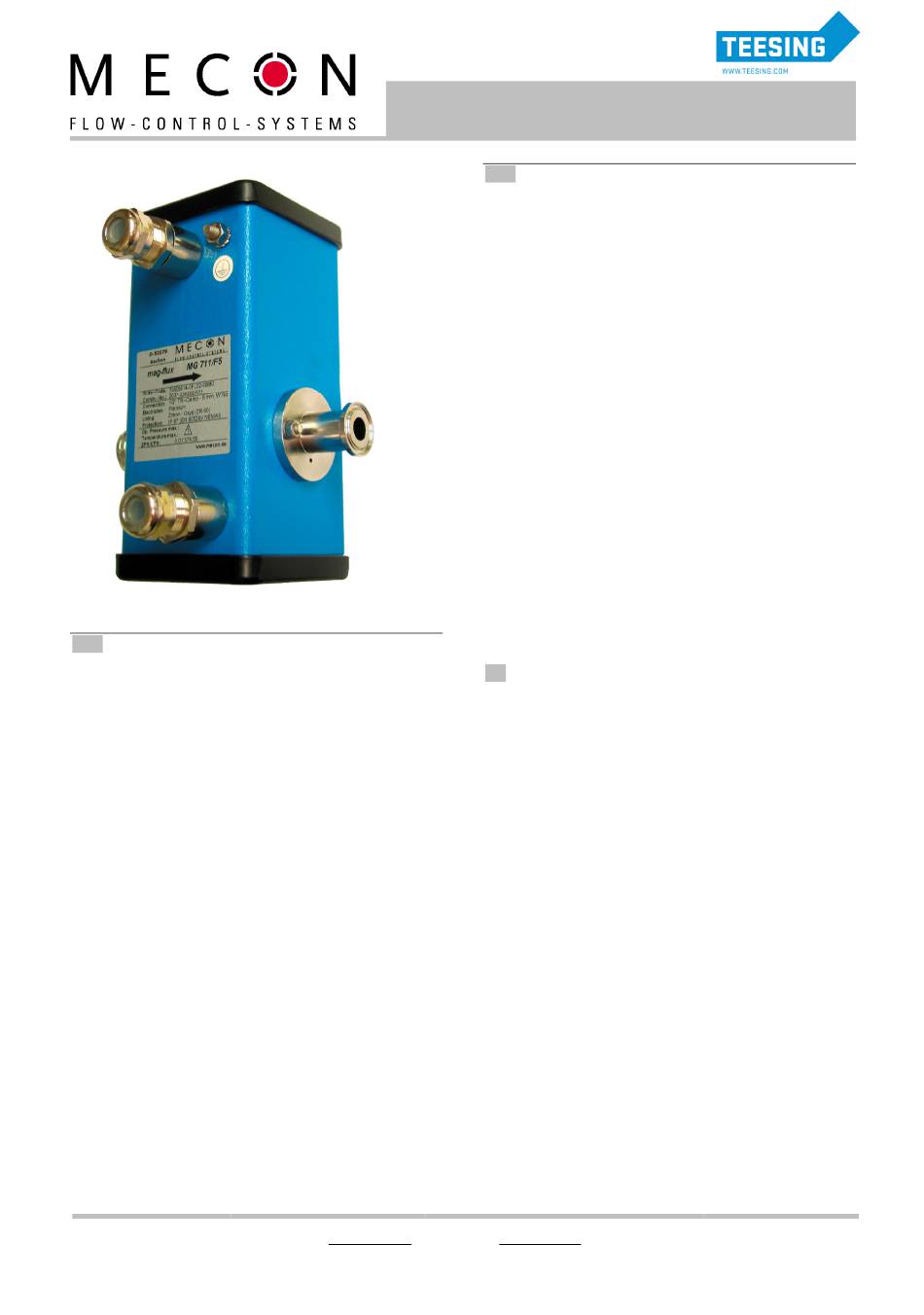

Fig. 1 electromagnetic flow sensor mag-flux F5
__

Application

Electromagnetic flowmeters are suitable for measuring the flow
of almost all electrically conducting liquids, as well as sludges,
pastes and slurries.
A prerequisite is that the medium must have a certain minimum
conductivity. The temperature, pressure, viscosity and density
have no influence on the result.
This special design of an electromagnetic flowmeter (MID) is
particularly suitable for measuring the flow of extremely small
quantities and especially for use with proportioning and batching
systems. In conjunction with
2/Transmag 2, complex tasks can be solved using the integral
software for batching applications. Typical applications can be
found in the food industry,
photographic systems, and the dosing of medicines in medical
fields.
When using the alternating field technique with the transmitter
Transmag 2, even very small flows can be exactly measured as a
result of the larger magnetic field and the zero stability.
The flow sensors mag-flux F5 are used mainly in the following
industries:
· Water and waste water plants
· Chemical and pharmaceutical industry
· Food- and beverage industry
· Mining, cement and mineral materials
· Pulp- and paper industry
· Steel industry
· Power generation and distribution.
The flow sensor are combined with the transmitters Intermag
2/Transmag 2 and are only available as remote versions.
Mecon GmbH
Röntgenstraße 105
D-50169 Kerpen
the transmitters Intermag
the dosing of chemicals
Phone +49(0)2237 600 06 - 0
www.mecon.de
WWW.TEESING.COM | +31 70 413 07 50
Electromagnetic flow Sensor
__

Special features

· Metering tube made from high corrosion- and temperature
resistant zirconium oxide
· Metering tube inner diameter 2 mm (0,078") and above
· smallest measuring ranges:
o 0 to 5 l/h (0 to 0,022 USgpm) with constant field
o 0 to 3 l/h (0 to 0,0132 USgpm) with alternating field
· very low minimum conductivity:
o 10 μS/cm with constant field
o 0,1 μS/cm with alternating field
· robust and interference-free as a result of closed steel
housing
· different process connections and materials
o Thread: DIN, NPT, BSP
o Flange: DIN, ANSI, JIS
o Clamp
o DIN 11851
o and more upon request
· different process connection materials
o Mat. No. 1.4571
o Hastelloy C4 W. Nr. 2.4610
o PVDF with earthing
mat. No. 2.4610
o Titanium
o and more upon request
____________________________________________________________
__

Note of application

· The operator of these measuring instruments is responsible for
suitability, proper use and corrosion resistance of the used
materials with regard to the measuring material. It must be
ensured that the materials selected for the meter parts in
contact with the medium are suitable for the used process
media.
· Before replacing the measuring tubes, check that the meter is
free of hazardous media and is not pressurized.
· The unit may only be used within the pressure and voltage
limits specified on the rating plate.
in
· The flowmeter complies with the requirements of the Pressure
Equipment Directive 97/23/EC, article 3, paragraph 3. The
most hazardous permissible media are the fluids defined in
group 1.
· Provide a touch guard for surface temperatures of > 70°C.
This touch guard must be designed in a way that the max.
allowable ambient temperature on the unit is not exceeded.
· The sensor must not be affected by external loads.
· The units are designed for predominantly recumbent load.
Fax +49(0)2237 600 06 - 40
info@mecon.de
mag-flux F5
ring made from Hastelloy
page 1 to 4
Mecon 01/2007
C4
