C7772A-E

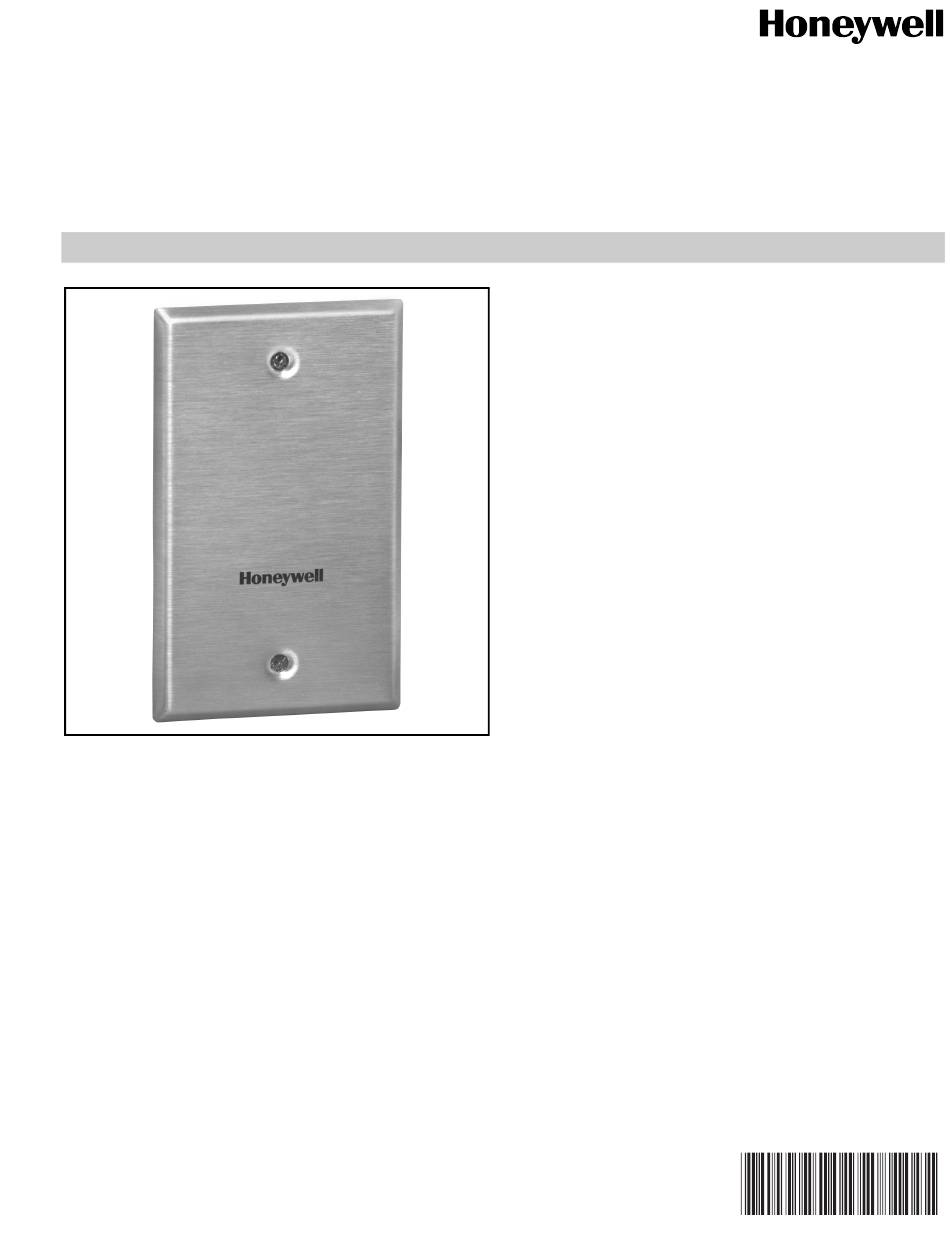

Wallplate Temperature Sensor
APPLICATION
The C7772 series of Wallplate Temperature Sensors are
designed to be used with the Excel 5000 family and other
Honeywell controllers. The C7772 sensors provide a resistive
output signal proportional to sensed room or space
temperature. The C7772 is well suited for low-profile wall-
mounted applications where durability and tamperproof
construction is desired, such as schools, prisons and
institutions.
FEATURES
• Low profile when mounted on industry standard utility
conduit box.
• Rugged, brushed stainless steel wallplate.
• Integral foam pad isolates wallplate sensor from
conduit box.
• Insulated screw terminals ensure reliable field wiring
connection.
• Models available with a variety of resistive temperature
sensor elements.
Application ........................................................................
Features ...........................................................................
Specifications ...................................................................
Installation ........................................................................
Operation ..........................................................................
Checkout ..........................................................................
PRODUCT DATA
Contents
1
1
2
2
3
3
68-0213-2
Advertisement
Related Manuals for Honeywell C7772 Series
Summary of Contents for Honeywell C7772 Series
- Page 1 • Models available with a variety of resistive temperature sensor elements. APPLICATION The C7772 series of Wallplate Temperature Sensors are designed to be used with the Excel 5000 family and other Honeywell controllers. The C7772 sensors provide a resistive output signal proportional to sensed room or space temperature.
-
Page 2: Specifications
If you have additional questions, need further information, or would like to comment on our products or services, please write or phone: 1. Your local Honeywell Automation and Control Products Sales Office (check white pages of your phone directory). 2. Honeywell Customer Care... - Page 3 C7772A-E WALLPLATE TEMPERATURE SENSOR Mounting To mount on conduit box (see Fig. 2): STANDARD UTILITY CONDUIT BOX 1. Remove the appropriate knockout on the standard utility conduit box for the application. 2. Make wiring connections to the system components. BLANK FACEPLATE IMPORTANT Level only for appearance.
- Page 4 C7772A-E WALLPLATE TEMPERATURE SENSOR Automation and Control Solutions Honeywell International Inc. Honeywell Limited-Honeywell Limitée 1985 Douglas Drive North 35 Dynamic Drive Golden Valley, MN 55422 Scarborough, Ontario M1V 4Z9 customer.honeywell.com ® U.S. Registered Trademark © 2005 Honeywell International Inc. 68-0213—2 B.B. Rev. 08-05...
