Ritron Radio-To-Intercom Bridge RIB-600Analog User Manual

Wireless pa receiver interface system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

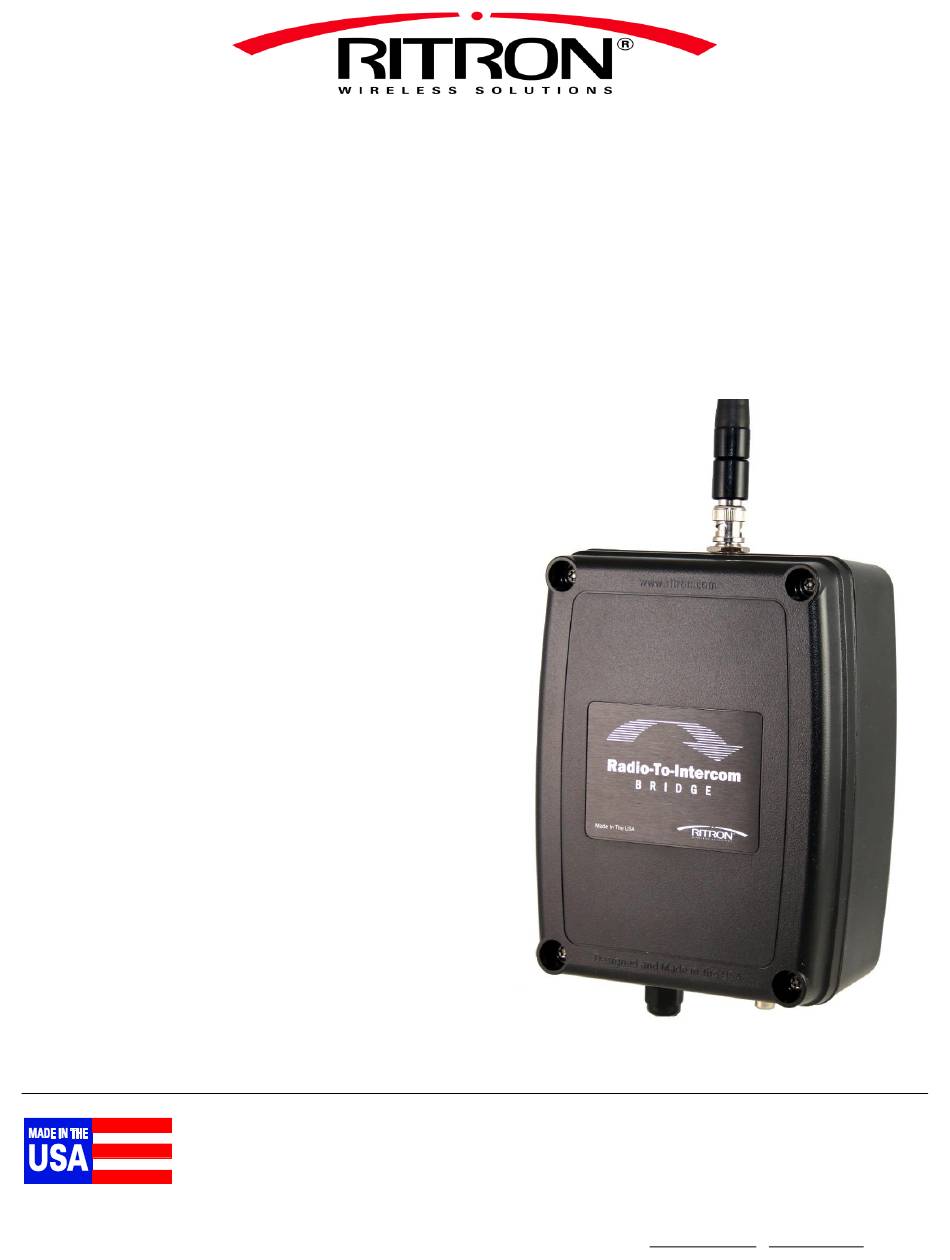

Radio-To-Intercom Bridge
Wireless PA Receiver Interface System
The RIB-600Analog Radio-To-Intercom Bridge receiver is designed to
interface to an existing wired Public Address Intercom system and allow
PA or intercom announcements using your Analog two-way radio. Each
model can operate on VHF LMR business band, UHF LMR business band,
or VHF MURS 2-way radios, and can work through radio repeaters.
-
1 Channel, Dual Band Receiver, VHF/UHF, Configurable
Supports:
VHF and UHF Business Band
VHF MURS USA
VHF and UHF Business Band CANADA
UHF GMRS CANADA
-
NOAA Weather Radio Alert
-
Relay Trigger Feature for Optional Strobe Light
-
Delay Message Playback Feature
-
Repeat Message Playback Feature
-
Switch Input w/ pre-recorded message
-
Provides interconnection to the Public Address
amplifier through a high impedance, unbalanced
AUX input OR a 600Ω, balanced MIC input.
505 W. Carmel Drive · Carmel, Indiana 46032 · 800-872-1872 · Fax: 317-846-4978 · Email: ritron@ritron.com · www.ritron.com
User Manual
RIB-600Analog
Ritron Pub. 14500098
© 2019 Ritron, Inc. All rights reserved. Loudmouth, Ritron, Patriot, Jobcom, OutPost, GateGuard, Quiet Call and
Quick Assist are registered trademarks of Ritron, Inc. Quick Talk, Liberty and RadioNexus are trademarks of Ritron,
Inc.
Rev. B
06/19
Call 800-USA-1-USA
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Radio-To-Intercom Bridge RIB-600Analog and is the answer not in the manual?

Questions and answers

Related Manuals for Ritron Radio-To-Intercom Bridge RIB-600Analog

Summary of Contents for Ritron Radio-To-Intercom Bridge RIB-600Analog

  • Page 1 © 2019 Ritron, Inc. All rights reserved. Loudmouth, Ritron, Patriot, Jobcom, OutPost, GateGuard, Quiet Call and Quick Assist are registered trademarks of Ritron, Inc. Quick Talk, Liberty and RadioNexus are trademarks of Ritron, Inc. Call 800-USA-1-USA 505 W. Carmel Drive · Carmel, Indiana 46032 · 800-872-1872 · Fax: 317-846-4978 · Email: ritron@ritron.com · www.ritron.com...

  • Page 2: Table Of Contents

    Getting Started Overview ..................................1 RIB-600Analog receiver assembly ..........................2 Paging the RIB-600Analog receiver ..........................3 Compatibility with other RITRON model radios ......................4 Operating Conditions and Limitations .......................... 5 Installation Radio coverage site survey ............................6 RIB-600Analog radio receiver installation ........................9 RIB-600Analog AUX IN installation ...........................

  • Page 3: Getting Started

    The built-in audio amplifier allows the LM-Series receiver by itself to drive up to 2 Ritron PA horn speakers. The LM-Series receiver and an included PA Horn speaker is what we call a stand-alone wireless PA system.

  • Page 4: Rib-600Analog Receiver Assembly

    RIB-600Analog receiver assembly The RIB-600Analog receiver is on any time power is applied. The receiver case must be opened to program the RIB- 600Analog receiver. Captive Case BNC Antenna Connector Screws (4 corners) for AFB-1545 PROGRAMMING Program Button Program Display 9-Conductor Interface Cable Enter Button Orange...

  • Page 5: Paging The Rib-600Analog Receiver

     The 2-way radio’s RIB-600Analog channel and the RIB-600Analog receiver must be programmed for the same QC code. All Ritron radios offer 50 different field-programmable QC codes from which to choose. Paging the RIB-600Analog with Digital Quiet Call (DCS) only: ...

  • Page 6: Compatibility With Other Ritron Model Radios

    Compatibility with other RITRON model radios The Ritron model RIB-600Analog receiver can operate on both VHF and UHF business band frequencies. RIB-600Analog can be accessed with radios programmed for Quiet Call (CTCSS), Digital Quiet Call (DCS), 2-Tone Paging, DTMF, or Selcall paging formats.

  • Page 7: Operating Conditions And Limitations

    (See Codes), or by using the PC Programmer. For a complete list of all Ritron radios capable of narrowband operation; a Ritron FAQ on the subject, and various links on the FCC website dealing with Narrowbanding go to: www.ritron.com/narrowband If you have any questions contact us at 1-800-872-1872.

  • Page 8: Installation

    This section will help you plan an installation that is best suited for your environment. Radio coverage site survey Ritron recommends that you do a “radio coverage site survey” before permanently installing the RIB-600Analog receiver. This will require 2 people and 2 charged portable radios.
  • Page 9 Conducting the radio coverage site survey: Person #1 will take one portable radio and go to the location you would “most likely” install the antenna for the RIB- 600Analog receiver (see FIG-2). This person will “simulate” the type of coverage you can expect, IF, the antenna for the RIB-600Analog receiver was installed in this location.
  • Page 10 Person #1 remains in a fixed location, probably located on a floor about ½ way up the building. Person #2 “walks the site”, stopping frequently on each floor to communicate with person #1 at the fixed location. Alternative locations for person #1 Alternative locations for person #1...

  • Page 11: Rib-600Analog Radio Receiver Installation

    Installing a Magnetic Mount Antenna for the RIB-600Analog Receiver A magnetic mount antenna should be installed in a location, which is at, or as close as possible to the best location as determined by the site survey. The antenna’s magnetic base must be attached to a piece of metal (i.e. steel or iron). The antenna comes with 12 feet of attached co-axial cable* so you can remotely locate the antenna up to 12 feet away from the RIB-600Analog receiver.

  • Page 12: Rib-600Analog Aux In Installation

    RIB-600Analog AUX IN installation The RIB-600Analog receiver can connect to the AUX INPUT of a public address amplifier if the receiver is installed in close proximity to the PA amplifier.  The RCA phono cable required for interconnection should be no longer than 6 feet. Installations requiring an RIB- 600Analog receiver location greater than 6 feet from the PA amplifier must use the 600...

  • Page 13: Rib-600Analog 600 Balanced Installation

    RIB-600Analog 600 BALANCED installation The RIB-600Analog receiver can be connected to the 600 balanced MIC INPUT of a public address amplifier when the receiver is not located close to the PA amplifier.  When an RIB-600Analog radio message is received, the RIB-600Analog receiver will send the audio to the 600 microphone input of the PA amplifier.

  • Page 14: Rib-600Analog Relay Installation

    RIB-600Analog RELAY installation The RIB-600Analog receiver can be set to provide a relay switch closure any time a valid message is received.  RELAY connections are made through the RIB-600Analog RIB-600Analog PC board lower left corner Interface Cable.  RELAY connections 1 and 2 provide a normally-open SPST switch.

  • Page 15: Programming

    PC Programming Software LM-PCPS While most RIB-600Analog programming can be accomplished via Field Programming, the Ritron PC Programming Software (LM-PCPS) can also be used. The PC Programmer allows viewing of all programmed attributes at once. It also permits you to save a programming profile you can use to easily program other RIB-600Analog radios to the same settings.

  • Page 16: Readout And Field Program Frequency Codes

    To match other radios, the owner can select Frequency Codes from Table F or can program the radio frequency directly. Table F divided into sections 2-6 to correspond with the frequency tables of other Ritron radios. Table frequency codes set both frequency and bandwidth. Section Ritron Table...
  • Page 17 Press and release the ENTER button to save your programming. A hyphen will flash 3 times on the program display to indicate that programming was successful. The radio is now ready for another program entry. NOTE: If you attempt to save an incorrect code an "E" will appear on the display. Check the digits you are attempting to enter, then re-enter.
  • Page 18 Table F - Programmable Frequency Table Section 2: VHF Business Band Section 4: UHF Business Band Section 4: UHF Business Band Section - Section - Section - Code Frequency Color Dot Code Frequency Color Dot Code Frequency Color Dot 12.5 † 12.5 †...

  • Page 19: Readout And Field Program Qc Or Dqc Tone Codes

    Readout and Field Program QC or DQC Tone Codes The RIB-600Analog can be field programmed for a 2-digit QC tone code or a 3-digit DQC tone code from Table b. In the following example the radio is programmed for a 100 Hz QC tone. To enter a QC or DQC Tone Code: Refer to the Table b...

  • Page 20: Table B: Programmable Qc Tone Table

    Table b - Programmable QC Tone Table Code Frequency Code Frequency Code Frequency Code Frequency Code Frequency 100.0 146.2 218.1 183.5 67.0 103.5 151.4 225.7 189.9 71.9 107.2 156.7 233.6 196.6 74.4 110.9 162.2 241.8 199.5 77.0 114.8 167.9 250.3 206.5 79.7 118.8...

  • Page 21: Readout And Field Program 2-Tone, Dtmf Or Selcall Decode Operation

    Table C, or for any 3-7 digit DTMF or Selcall sequence. The 2-Tone codes correspond to field programmable 2-Tone encode (transmit) codes available in other RITRON products. 2-Tone, DTMF or Selcall decode can be used to selectively call the radio in a system where multiple radios operate on a single frequency.

  • Page 22: Field Program Advanced Feature Codes

    Field Program Advanced Feature Codes The RIB-600Analog can be field programmed for a variety of additional features. Refer to Table A for the 2 or 3-digit codes available for field programming. In our example we will program the radio to Delay Message Playback for 2 seconds. The RIB-600Analog is set from the factory with these ...
  • Page 23 Table A - Advanced Feature Codes Weather Alert Operation Weather Alert – On Enable this feature to receive local NOAA weather radio emergency broadcasts from the National Weather Service and play them over the PA speakers.  Weather Alert – Off Disable Weather Alert.

  • Page 24: Readout And Field Program Rib-600Analog Audio Level

    Readout and Field Program RIB-600Analog Audio Level The RIB-600Analog can be field programmed for any audio level between 05-99% by entering the audio level as a 2-digit code. Field programming Audio Level sets the voice audio levels at both the 600Ω balanced output and the AUX OUT line level output. In our example we will program the radio for 25% Audio Level.

  • Page 25: Readout And Field Program The Noaa Weather Frequency

    Readout and Field Program the NOAA Weather Frequency The RIB-600Analog can be programmed to play severe weather warnings originating from the National Weather service that are broadcast on one of seven NOAA weather frequencies. The RIB-600Analog is shipped from the factory without a NOAA weather frequency selected.

  • Page 26: Field Programming Flow Chart

    Field Programming Flow Chart Feature Decision Programming Frequency Code from Table? Enter Custom frequency [F_ _ _ _ _ _ _ _ ] Enter Frequency Code [F_ _ _ _ ] Interference Eliminator Tone Code? Enter QC Tone codes [b_ _ ] Enter DQC Tone codes [b_ _ _ ] Selective Paging? None...

  • Page 27: Operation

    Operation Once installed, operating the RIB-600Analog radio receiver requires no human contact. Portable, base station or mobile 2-way radios can deliver voice messages directly to a PA system with a simple press of the PTT button for either live or recorded playback. This section describes the subtle differences in operation for various RIB-600Analog options and installations.

  • Page 28: 2-Tone Paging

    2-Tone Paging To access the RIB-600Analog receiver the 2-way radio must first send the correct 2-Tone Paging code. Once access to the PA system is accomplished, the user simply presses the 2-way radio’s PTT and speaks while on the RIB-600Analog channel. After a period of inactivity the RIB-600Analog receiver will automatically reset, and will then require the correct 2-Tone Paging code to re-gain access.

  • Page 29: Weather Alert

    Weather Alert The RIB-600Analog can automatically play emergency weather warnings from the National Weather Service that is broadcast on one of the seven NOAA weather frequencies. The RIB-600Analog will listen for emergency weather broadcasts any time it is not being used. To use this feature the RIB-600Analog must first be programmed for your local NOAA weather frequency. With Weather Alert operation: ...

  • Page 30: Rib-600Analog Options

    RIB-600Analog Options Certain RIB-600Analog options affect operation as follows: Pre-Announce Tone With this feature enabled the RIB-600Analog will sound a short tone prior to each broadcast to notify listeners that a page is forthcoming. Relay Enable Set this option for relay closure when the RIB-600Analog receives a valid signal. The relay will remain closed as long as a signal is received.

  • Page 31: Switch Input Operation

    The cable assembly also provides connection to the Relay Switch closure output. Using the Switch Input to Test your System The Ritron model RPB-1AG pushbutton is available for use with Switch Pre-recorded “Switch On” Input Operation. When programmed for “Switch On Only” operation,...

  • Page 32: Relay Operation

    Relay Operation Radios are equipped with a relay that can be set for a relay switch closure when the RIB-600Analog receives a valid signal. The relay can be used to provide a “Priority”, “Override” or “Emergency” switch closure to the PA amplifier, enabling the received signal to play over the PA system.

  • Page 33: Connecting The Relay Switch To A Strobe Light

    Connecting the Relay Switch to a Strobe Light A simple switch closure capable of handling 3A current.  The strobe light is activated when two On/Off inputs are connected.  The strobe light requires its own external power, either AC or DC. Interface Cable Description Strobe Light...

  • Page 34: Specifications

    Specifications General 7.125”H x 5.5”W x 3.0”D Receiver physical dimensions Receiver enclosure material Hi- Impact Polycarbonate Thermoplastic Receiver color Black Receiver weight 1 lb. 15 oz. (with AFB-1545 antenna) Receiver mounting 2 aluminum brackets to side of radio Receiver environmental Indoor use only RELAY Connectors...

  • Page 35: Rib-600Analog Receiver

    RIB-600Analog Receiver  Selective signaling decode capability CTCSS (Quiet Call)  Digital Coded Squelch (Digital Quiet Call)  DTMF  Selcall  2-Tone Paging Decode Noise squelch sensitivity Programmable, factory set for 12 dB SINAD Frequency response 300 - 3000 Hz, de-emphasized QC/DQC decode time per EIA Standards 300 –...

  • Page 36: Warranty
