Faber JP Manual

2 / 3 axis joystick
JP
with power outputs (PWM)
DESCRIPTION

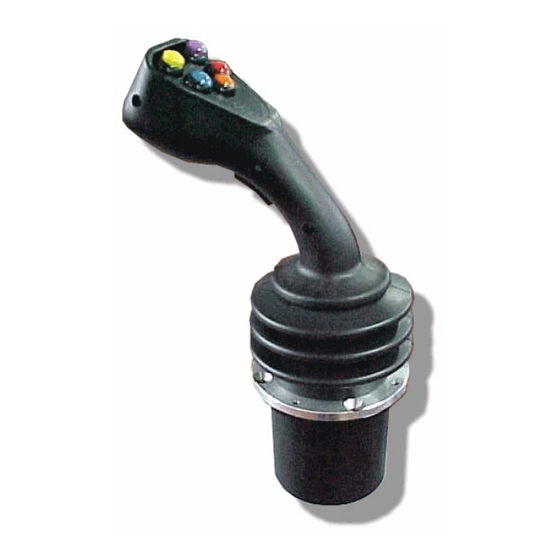

JP is a 2 or 3 axis electronic joystick with power outputs, able to
directly control up to 6 proportional solenoid valves with PWM
outputs proportional to joystick movements.
Joystick movements are derived from the measurement of the
magnetic field produced by permanent ferromagnets; the
measurement is taken through redundant Hall effect probes. This
kind of probes are not subject to usury.
JP contains a microprocessor electronic card; this makes the
joystick very reliable and highly customizable.
Also the push button panel is customizable.
Main characteristics:
- you can control two or three proportional indipendent axis (4 or
6 PWM outputs) or just one proportional output (PWM) with 4 or
6 ON/OFF outputs
- optional "virtual cross" to forbid diagonal movements
- linear or parabolic output curve
- up to 3 speed set selectionable by two input
- straight BYPASS output, with delayed turn off
- FAULT output
- standard or capacitive dead man switch
- indipendent regulation (for each semiaxis) of
minimum current
maximum current
rise timeramp
fall timeramp
- PWM frequency adjustable from 50 to 300 Hz
- power supply voltage from 10Vdc to 30Vdc
- completely resinated electronic card
- third proportional axis THUMBWHEEL ready to mount
- provided with a 50 cm long unpluggable cable
TECHNICAL SPECIFICATIONS
Power Supply Voltage
Current absorption
Working temperature range
PWM output minimum current
PWM output maximum current
Available PWM frequency
ON/OFF output maximum current
Maximum number of manoeuvres
Connections
Under panel size
Programming Device
FABER-COM srl - Via Romana 36/1 - 42028 Poviglio (RE) - Italy Tel. +39-0522-960428 Fax. +39-0522-969644 - www.fabercom.it FABER-COM srl - Via Romana 36/1 - 42028 Poviglio (RE) - Italy Tel. +39-0522-960428 Fax. +39-0522-969644 - www.fabercom.it FABER-COM srl - Via Romana 36/1 - 42028 Poviglio (RE) - Italy Tel. +39-0522-960428 Fax. +39-0522-969644 - www.fabercom.it
Tecnico\Prodotti\Manipolatore\Jp\Documenti\SM#Manuale JP_v102_ie.cdr - 11/01/07
two principal axis
XB
10Vdc ÷ 30Vdc
200 mA + output load (max 10A)
-20 ÷ 70 °C
from 100 to 2500 mA (with 10 mA resolution)
from 100 to 2500 mA (with 10 mA resolution)
50-60-70-85-100-125-150-200-250-300 Hz
2500 mA
3 PWM outputs at the same time
14 poles Molex minifit Jr. conn. with a 50 cm cable included
diameter 80 - width 90 mm
PRG2 serial keyboard
FABER - COM
third axis
THUMBWHEEL
(optional)
YA
XA
YB
Joystick
movements
ZA
ZB
Page 1 / 8
