Connecting Signals

Figure 4 shows the available audio, AI, AO, DIO, GND, and power signals accessed through the
3.5 mm audio jacks and screw terminal connections. Refer to Table 1 for descriptions of these
signals.
Cautions
terminal connector to ensure proper connection.
To ensure the specified EMC performance:
The length of any wire or cable connected to the 20-pin screw terminal
•
connector must be no longer than 0.3 m (1 ft).
The length of any wire or cable connected to the Audio or DMM ports must be
•
no longer than 3 m (10 ft).

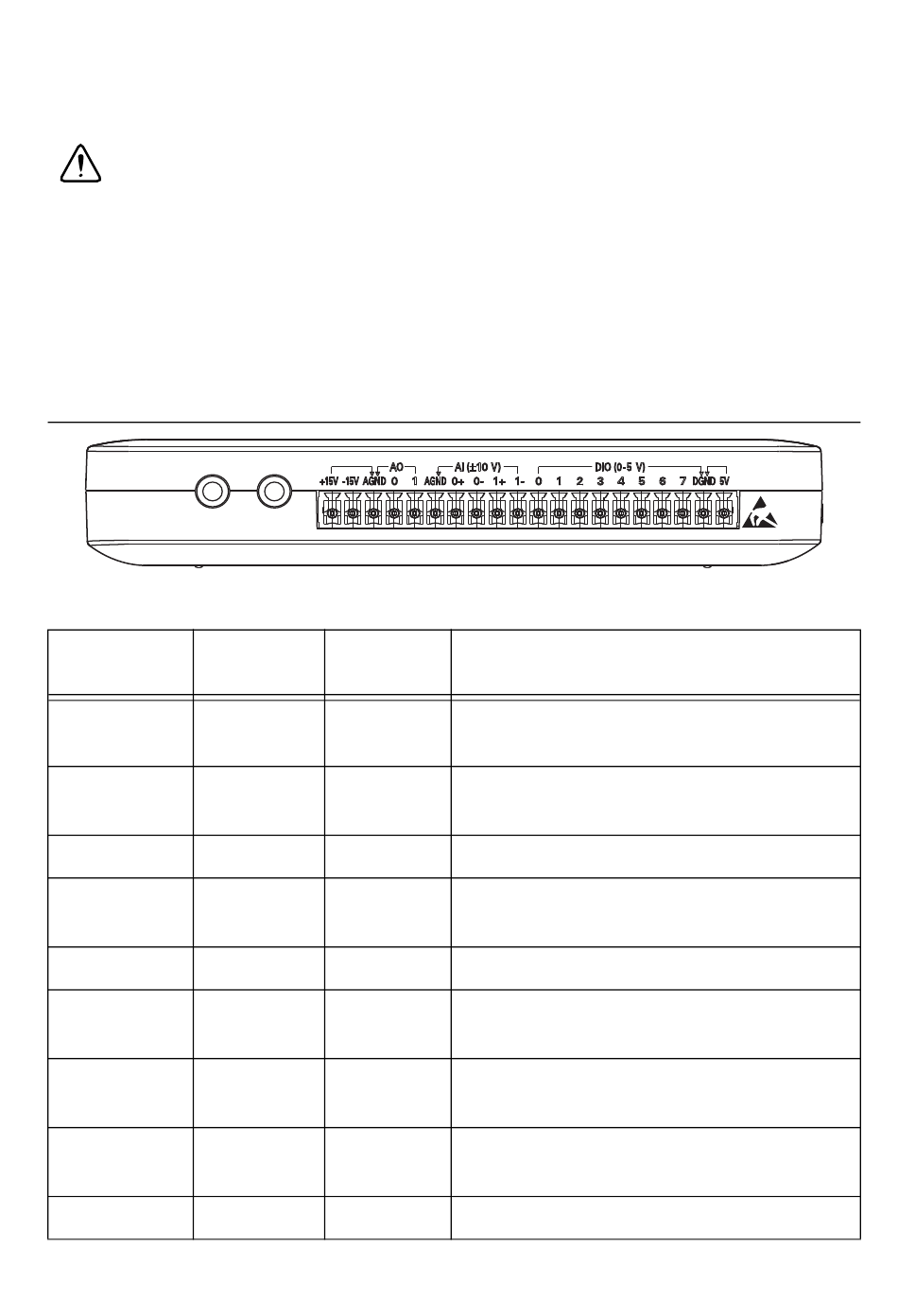

Figure 4. NI myDAQ 20-Position Screw Terminal I/O Connector
AUDIO
IN
Signal
Name Reference
AUDIO IN
AUDIO OUT
+15V/-15V
AGND
AO 0/AO 1
AI 0+/AI 0-;
AI 1+/AI 1-
DIO <0..7>
DGND
5V
Signal wires must be securely affixed and screwed down in the screw
AUDIO
OUT
Table 1. Screw Terminal Signal Descriptions
Direction
— Input
— Output
AGND Output
— —
AGND Output
AGND Input
DGND Input or
Output
— —
DGND Output
Description
Audio Input—Left and right audio inputs
on a stereo connector
Audio Output—Left and right audio
outputs on a stereo connector
+15 V/-15 V power supplies
Analog Ground—Reference terminal for
AI, AO, +15 V, and -15 V
Analog Output Channels 0 and 1
Analog Input Channels 0 and 1
Digital I/O Signals—General-purpose
digital lines or counter signals
Digital Ground—Reference for the DIO
lines and the +5 V supply
5 V power supply
