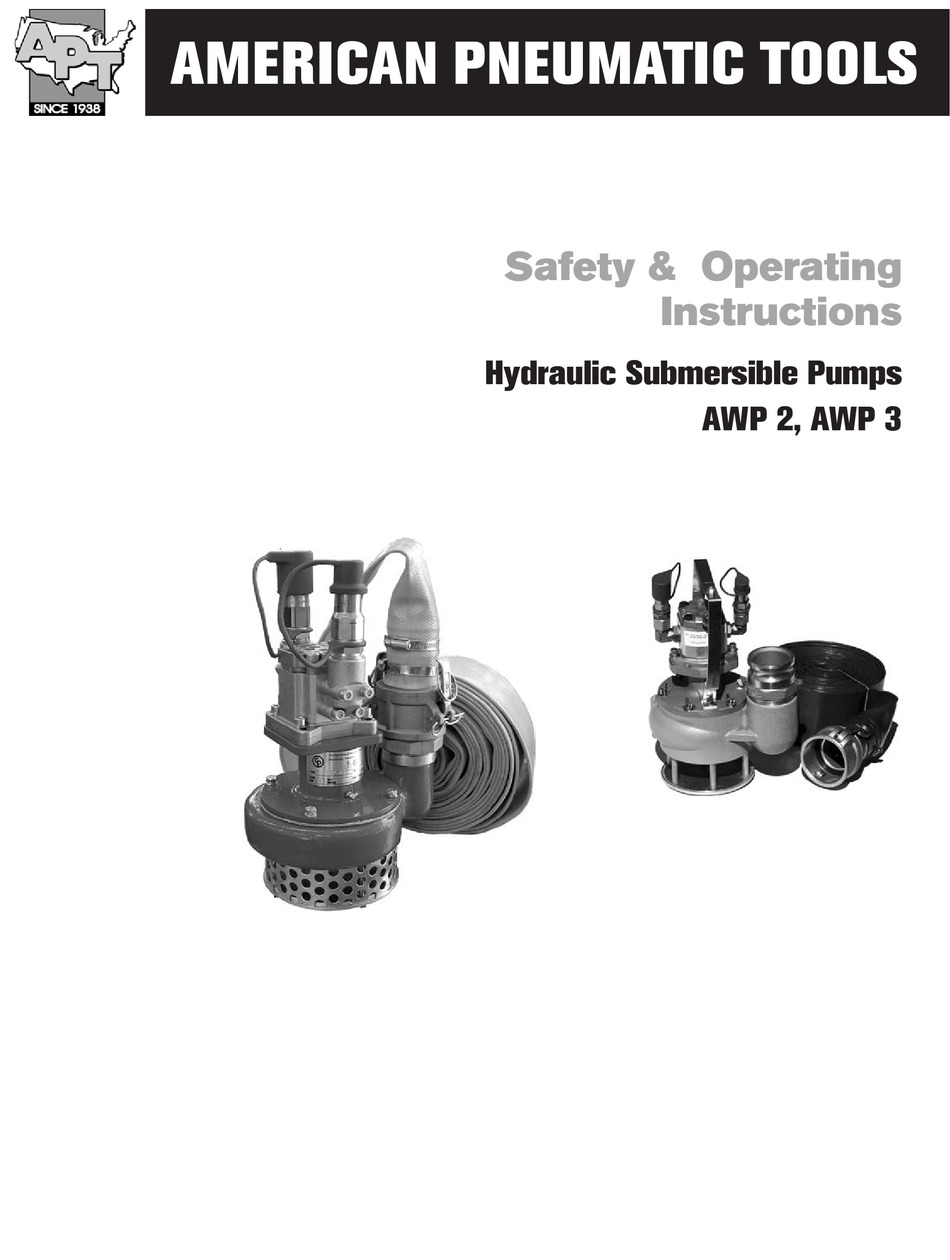

- Page 1 AMERICAN PNEUMATIC TOOLS Safety & Operating Spare parts list Instructions Hydraulic Submersible Pumps Hydraulic Submersible Pumps AWP 2, AWP 3 AWP 2, AWP 3 WAP 2, WAP 3 www.cp.com Chicago Pneumatic Construction Tools...
- Page 2 SAFETY & OPERATING INSTRUCTIONS AWP 2, AWP 3 (doc no.)
-
Page 3: Table Of Contents
Contents AWP 2, AWP 3 SAFETY & OPERATING INSTRUCTIONS Contents Introduction............... 5 About the Safety and operating instructions. - Page 4 SAFETY & OPERATING INSTRUCTIONS AWP 2, AWP 3 (doc no.)
-
Page 5: Introduction
The American Pneumatic Tools brand is associated with powerful and reliable products that are easy to maintain and that give good value for the money. For more information please visit www.apt-tools.com About the Safety and operating instructions The aim of the instructions is to provide you with knowledge of how to use the pump in an efficient, safe way. -
Page 6: Safety Instructions
SAFETY & OPERATING INSTRUCTIONS AWP 2, AWP 3 Safety and operating instructions Safety instructions Drugs, alcohol or medication WARNING Drugs, alcohol or medication To reduce the risk of serious injury or death to Drugs, alcohol or medication may impair your yourself or others, read and understand the Safety judgment and powers of concentration. -
Page 7: Operation, Precautions
AWP 2, AWP 3 SAFETY & OPERATING INSTRUCTIONS Safety and operating instructions CAUTION Skin eczema WARNING Projectiles Hydraulic oil can cause eczema if it comes in contact During operating, particles or jets of liquid may with the skin. become projectiles and cause personal injury by striking the operator or other persons. -
Page 8: Maintenance, Precautions
SAFETY & OPERATING INSTRUCTIONS AWP 2, AWP 3 Safety and operating instructions WARNING Noise hazard High noise levels can cause permanent and disabling hearing loss and other problems such as tinnitus (ringing, buzzing, whistling, or humming in the ears). To reduce risks and prevent an unnecessary increase in noise levels: ►... -
Page 9: Overview
Discharge hose Design and function Quick release couplings The APT Atlas Copco hydraulic submersible pumps WAP 2 and WAP 3 are designed to meet the demand for efficient pumping. They offer a high performance in relation to weight, are spark-proof, and withstand running dry. -
Page 10: Installation
SAFETY & OPERATING INSTRUCTIONS AWP 2, AWP 3 Safety and operating instructions Data plate pressure of min. 140 bar (2000 psi). The hydraulic oil filter must have a filter rating of 25 or higher. WAP 2 WAP 3 Made in Bulgaria... -
Page 11: Operation
AWP 2, AWP 3 SAFETY & OPERATING INSTRUCTIONS Safety and operating instructions Standard mineral or synthetic oil can be used. Make > Grease the bearing in the pump housing through sure to only use clean oil and filling equipment. the grease nipple in the bearing housing (3 strokes). -
Page 12: Operating
SAFETY & OPERATING INSTRUCTIONS AWP 2, AWP 3 Safety and operating instructions Maintenance ♦ Start the engine and run the power source to fill up the hydraulic circuit. Regular maintenance is a basic requirement for the ♦ Check the hydraulic oil level. -
Page 13: Storage
AWP 2, AWP 3 SAFETY & OPERATING INSTRUCTIONS Safety and operating instructions Storage ♦ Disconnect the machine’s hoses from the power source, see "Start and stop". ♦ Make sure that the machine is properly cleaned before storage. ♦ Always store the machine in a dry place. -
Page 14: Technical Data
SAFETY & OPERATING INSTRUCTIONS AWP 2, AWP 3 Safety and operating instructions Technical data Troubleshooting Problem Cause Solution Pump will not operate. Pump not connected properly. Check the performance and connection of the power source. Oil flow too low. Check the power source and ensure that the flow is according to the technical specifications. -
Page 15: Noise Declaration Statement
AWP 2, AWP 3 SAFETY & OPERATING INSTRUCTIONS Safety and operating instructions Noise declaration statement Guaranteed sound power level Lw according to ISO 3744 in accordance with directive 2000/14/EC. Sound pressure level Lp according to ISO 11203. These declared values were obtained by laboratory type testing in accordance with the stated directive or standards and are suitable for comparison with the declared values of other tools tested in accordance with the same directive or standards. -
Page 16: Ec Declaration Of Conformity
SAFETY & OPERATING INSTRUCTIONS AWP 2, AWP 3 Safety and operating instructions EC Declaration of Conformity EC Declaration of Conformity (EC Directive 2006/42/EC) We, Atlas Copco Construction Tools AB, hereby declare that the machines listed below conform to the provisions of EC Directive 2006/42/EC (Machinery Directive). - Page 17 AWP 2, AWP 3 SAFETY & OPERATING INSTRUCTIONS (doc no.)
- Page 18 SAFETY & OPERATING INSTRUCTIONS AWP 2, AWP 3 (doc no.)
- Page 19 AWP 2, AWP 3 SAFETY & OPERATING INSTRUCTIONS (doc no.)
- Page 20 AMERICAN PNEUMATIC TOOLS 800.532.7402 • fax 800.715.6502 1000 S. Grand Ave. • Santa Ana, CA 92705...
