Exhausto VEX160 Series Original Instructions Manual

Horizontal hce with exact2 control

Hide thumbs Also See for VEX160 Series:

Original instructions manual (32 pages)

Original instructions manual (44 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

3004500-2016-01-14

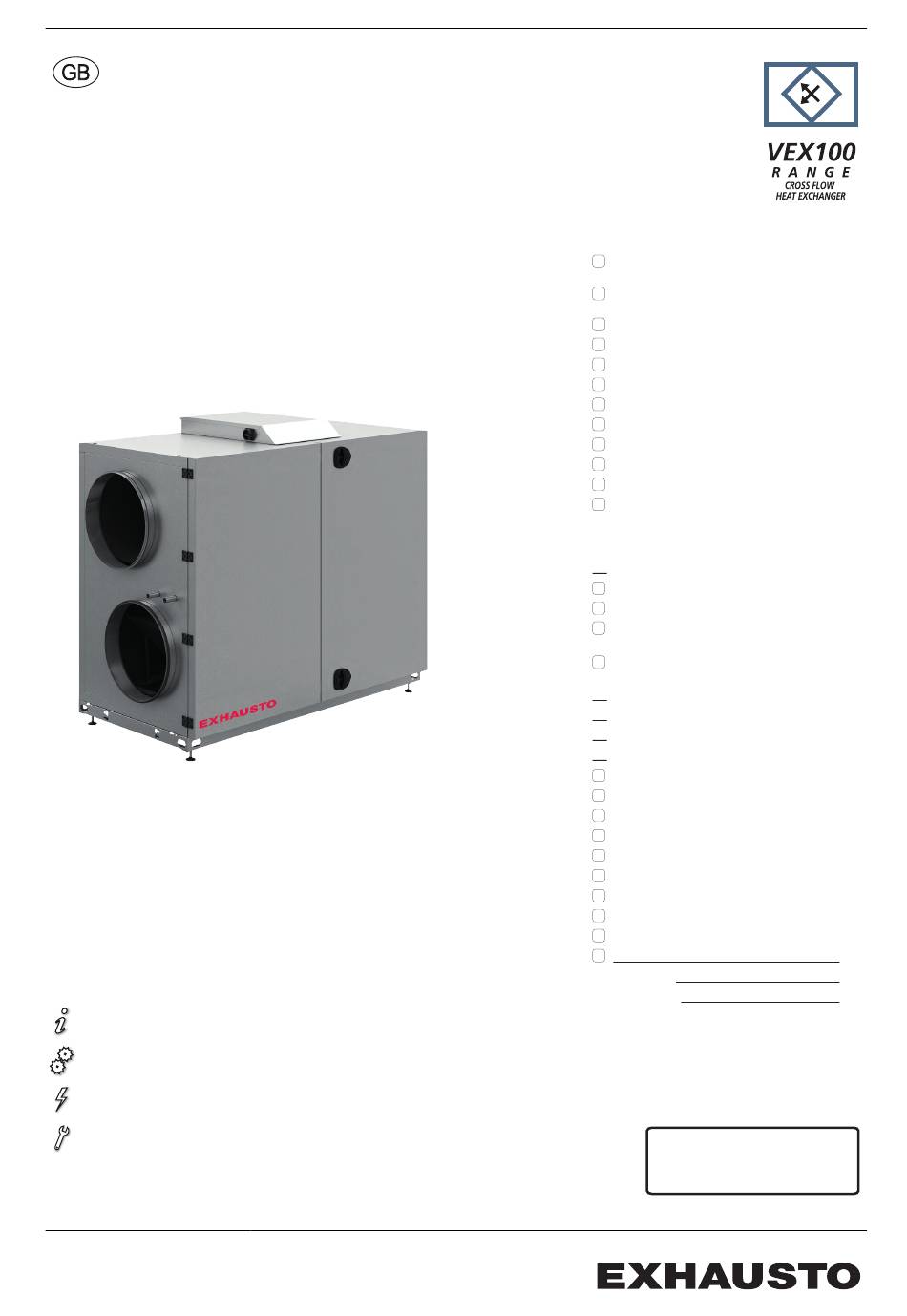

VEX160 Horizontal HCE

with EXact2 control

Product information........................................Chapter 1 + 6

Mechanical assembly.....................................Chapter 2 + 3

Electrical installation.......................................Chapter 4

Maintenance...................................................Chapter 5

EXHAUSTO A/S

Odensevej 76

DK-5550 Langeskov

Tel. +45 65 66 12 34

Fax +45 65 66 11 10

exhausto@exhausto.dk

www.exhausto.dk

VEX160H_HCE

Unit suplied with (factory fitted):

Crossflow heat exchanger with standard

temperature efficiency

Crossflow heat exchanger with high

temperature efficiency

Airflow control, AFC

Electric heating coil HCE160 - 14,4kW

Electric heating coil HCE160 - 21,6kW

Electric heating coil HCE160 - 28,8kW

VDI 6022

Filter control, MPTF

Pressure based ice detection, DEP

M5-compact filter, FP

F7-compact filter, FP

OD - roof for outdoor

The following accessories ar supplied

separately:

pieces, control panel, HMI

Closing damper, LS500-24, (LSA exhaust)

Closing damper, LS500-24, (LSF outdoor)

Closing damper, LS500-24, with

spring-return (LSAR exhaust)

Closing damper, LSR500-24, with

spring-return (LSFR for outdoor)

pieces, Fire thermostat, BT40

pieces, Fire thermostat, BT50

pieces, Fire thermostat, BT70

pieces, Constant pressure control, MPT-DUCT

Motion sensor, MIO-PIR

Humidity sensor, MIO-RH

-sensor, MIO-CO2-DUCT

-sensor, MIO-CO2-ROOM

Temperature sensor, MIO-TS-DUCT

Temperature sensor, MIO-TS-ROOM

Control for external cooling unit, MXCU

Mounting base, MSV160H

TS-RPT-X

Prod.order no.:

Sales order no.:

Original instructions

Table of Contents

Need help?

Do you have a question about the VEX160 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Exhausto VEX160 Series

Page 1 Sales order no.: Product information........Chapter 1 + 6 Mechanical assembly........Chapter 2 + 3 Electrical installation........Chapter 4 Maintenance...........Chapter 5 Original instructions EXHAUSTO A/S Tel. +45 65 66 12 34 Odensevej 76 Fax +45 65 66 11 10 DK-5550 Langeskov exhausto@exhausto.dk www.exhausto.dk...
Page 2: Table Of Contents
3004500-2016-01-14 1. Product information 1.1. Designations used in these instructions.............5 Simplified diagram....................5 1.2. Application......................6 1.3. Location requirements..................6 1.3.1. Space requirements..................6 1.3.2. Requirements for underlying surface..............6 1.3.3. Condensation outlet..................7 1.3.4. Requirements for duct system.................7 1.4. Description......................8 1.4.1. Construction of the VEX unit................8 1.4.2.
Page 3 Scope This instruction manual is for use with EXHAUSTO VEX-type air handling units. Please refer to the product instructions regarding accessories and extra equipment. The instructions must be fully observed to ensure personal safety and to protect the equipment and ensure its correct operation.
Page 4 ● Or use a padlock. Use the handle’s built-in padlock fixture. Padlock fitting Rating plate The VEX unit rating plate shows: ● VEX unit, type (1) ● production number (2) Always have the production number ready when contacting EXHAUSTO A/S. 4/32...
Page 5: Product Information
Product information 3004500-2016-01-14 1. Product information 1.1 Designations used in these instructions Simplified diagram Component Function Standard/accessory Electric heating coil Standard TSA70 Overheating protection, electric heating coil Standard (automatic reset) TSA80 Overheating protection, electric heating Standard control (manual reset via HMI) TSA90 Overheating protection, electric heating Standard...
Page 6: Application
Standard 1.2 Application Comfort ventilation EXHAUSTO VEX is used for comfort ventilation tasks. Operating temperature range for the unit - see section "Technical data". Prohibited uses The VEX unit is not to be used to transport solid particles or in areas where there is a risk of explosive gases.
Page 7: Condensation Outlet
● heating/cooling losses Condensation Condensation in the ducts may occur when the exhaust/outdoor air has high hu- midity. EXHAUSTO recommends a condensation outlet is also fitted at the lowest point in the ducts. Outdoor air intake The outdoor air intake must be dimensioned with sufficiently low airflow to prevent rain and snow being drawn into the duct system.
Page 8: Description
Product information 3004500-2016-01-14 1.4 Description 1.4.1 Construction of the VEX unit The following drawings show an overview of the construction of left and right-hand models of VEX units (shown without doors). 2,1,A 1,2,A 2,2,A 1,1,A Left RD10181-02 2,1,A 1,2,A 2,2,A 1,1,A Right RD10224-02...
Page 9: Parts Of The Vex Unit
Product information 3004500-2016-01-14 Pos. Part Function Spigot 2,1,A Outdoor air spigot The spigot can also be positioned on the top of the unit (2,1,B). Closing damper LS Closing damper, outdoor air, LSF (accessory) Outdoor air filter Filters outdoor air Bypass damper For operation with heat recovery, the bypass damper is closed so that the air passes through the crossflow heat exchanger.
Page 10: Principal Dimensions
Product information 3004500-2016-01-14 1.5 Principal dimensions VEX160H, Left The following drawing gives the principal dimensions: 1820 1,2,B 2,1,B 2,1,A 1,2,A 2,2,A 1,1,A DN32 2,2,B 940* 2,1,A 1,2,A 2,2,A 1,1,A The drawing shows all of the spigot positioning options. * Allow a distance for service in front of the unit equivalent to the unit depth. ** Allow a min.
Page 11 Product information 3004500-2016-01-14 VEX160H, Right The following drawing gives the principal dimensions: 1820 1,2,B 2,1,B 2,1,A 1,2,A 2,2,A 1,1,A DN32 2,2,B 940* 2,1,A 1,2,A 2,2,A 1,1,A The drawing shows all of the spigot positioning options. * Allow a distance for service in front of the unit equivalent to the unit depth. ** Allow a min.
Page 12: Handling
Handling 3004500-2016-01-14 2. Handling 2.1 Unpacking Supplied compo- The following components are supplied: ● VEX unit nents ● Supplied accessories (as indicated in the checklist on the front page of the in- structions). Packaging The unit is delivered on a disposable pallet and packed in clear plastic. Once the plastic has been removed, the unit must be protected against dirt and dust: ●...
Page 13: Passage Through Openings
Handling 3004500-2016-01-14 Method Drawing Using pallet truck or fork-lift truck: Lift the VEX unit on the disposable pallet. IMPORTANT: If the dis- posable pallet cannot be used, the forks on the lifting equipment must be long enough to prevent damage to the bottom of the unit.
Page 14: Internal Transport With Reduced Weight
Handling 3004500-2016-01-14 2.2.2 Internal transport with reduced weight Removing the serv- To remove the service doors: ● Open both doors ice doors ● Using a small punch or similar tool, knock the pin out of the top of the door hinges (A), and lift the doors off.
Page 15 Handling 3004500-2016-01-14 To remove the fan unit Step Action Remove the fixing screw from the sliding rail, and release the ties on the motor cable. Pull the fan unit out to the stop (two screws) on the sliding rail. Dismount the motor cable from the motor control on the sliding panel and pull it towards the motor through the rubber grommets.
Page 16: Mechanical Assembly
After installation, check the VEX unit is completely level. 3.1.2 Installation on mounting base The EXHAUSTO mounting base enables the VEX unit to be installed correctly. The base is equipped with adjustable levelling screws, so that the air handling unit can be fitted horizontally on a surface that is not level ( +/- 20 mm per metre).
Page 17 Solution with HT Use HT pipe (HT, DN32, DIN4102), if the above solution is not employed (not sup- pipe plied by EXHAUSTO). If the VEX is erected on a mounting base, this will allow sufficient free height for installing a water trap.
Page 18: Electrical Installation
3004524-2013-02-07 Guide to Electrical Installation of VEX100 with electric heating coil and EXact2 Electrical installation........Chapter 1 + 2 Original instructions EXHAUSTO A/S Tel. +45 65 66 12 34 Odensevej 76 Fax +45 65 66 11 10 DK-5550 Langeskov exhausto@exhausto.dk www.exhausto.dk...
Page 19: Maintenance, Hygiene And Servicing
● EUROVENT certification is only valid if original filters are used ● Use of non-original filters may cause leakage in the VEX and impair filter func- tion ● EXHAUSTO recommends that you register the filter replacement date to ensure filters are replaced at the correct intervals 19/32...
Page 20: Hygiene (Vex100Vdi Only)
Maintenance, hygiene and servicing 3004500-2016-01-14 5.3 Hygiene (VEX100VDI only) VDI6022 air hygiene To ensure that the VEX100 meets the requirements of the VDI6022 hygiene stand- standard ard, its design ensures that: ● bacterial growth and dirt accumulation are minimal ● conditions for cleaning are optimum Filter F7 The outdoor air side of the unit must be fitted with a F7 filter to meet VDI6022 re- quirements.
Page 21: Cleaning The Crossflow Heat Exchanger
Maintenance, hygiene and servicing 3004500-2016-01-14 5.4.4 Cleaning the crossflow heat exchanger Step 1-11 Action Switch off the power supply to the unit at the isolation switch before opening the doors. Pull the heat exchanger out of the VEX slightly and remove the plug from the bypass motor. Hold down the split pin under the plug with a screw driver, see photos: Dismount the Tice sensor from the heat exchanger bracket (see photo step 10).
Page 22 Maintenance, hygiene and servicing 3004500-2016-01-14 Step 1-11 Action Mount the Tice sensor. It is important to check that the Tice sensor is correctly positioned between the heat exchanger fins, as the sensor will not measure correctly otherwise. Re-insert the plug for the bypass motor. 22/32...
Page 23: Technical Data
Technical data 3004500-2016-01-14 6. Technical data 6.1 Weight, corrosion class, temperature ranges, etc. Weight VEX total weight 360 kg Doors 2 x 24 kg Crossflow heat exchanger 51 kg Fan unit 2 x 26 kg VEX for transporting into building (without doors, heat exchanger and 209 kg fan unit) Corrosion class...
Page 24 Technical data 3004500-2016-01-14 Motor damper Motor damper type LS (closing damper) LSR (closing damper, spring return) Type LS500-24 LSR500-24 Designation LSA/LSF LSFR Motor type NM24-F AF-24 Rotation time 75–150 s open: 150 s close: 16 s Ingress protection IP42 IP42 Ambient temperature -20ºC to +50ºC -30ºC to +50ºC...
Page 25: Compact Filters
Technical data 3004500-2016-01-14 6.2 Compact filters Filter data, VEX160 Data Device VEX160 Dimensions: h x w, 1 item per air direction mm 700 x 838 700 x 838 Thickness of compact filter Filter area 11.1 Filter class Retention efficiency in accordance with EN779: 2012 Efficiency (particle size 0.4μm) Volume flow rate...
Page 26: Electric Heating Coil
Technical data 3004500-2016-01-14 6.3 Electric heating coil Electric heating coil Voltage per electric heating element 1 x 230V Output 2.4 kW Supply voltage for connection box: Star connection 3 x 400V + N Thermal fuse, TSA70 Thermal fuse, TSA90 Temperature tolerance ±5 K Temperature drop before reconnection possible 15 K...
Page 27: Capacity Diagram
VEX guidelines and on the VEX rating plate. Contact: Contact your local EXHAUSTO office service department to order a spare part. Contact information is given on the back cover of these instructions. See also the "Layout" section for an overview of the position and designation of parts in the VEX.
Page 28 Technical data 3004500-2016-01-14 Product parts Material Handling Sheet parts Aluzinc For recycling after disas- sembly Condensation tray Stainless steel For recycling after disas- sembly Bypass dampers, heat Aluminium For recycling exchangers and metal sections Insulation Mineral wool For recycling after disas- sembly Door gasket CFC and HCFC-free cel-...
