MARS COMMERCE GSW2 PLUS User Manual

Advanced gsm/gprs communication device
Hide thumbs Also See for GSW2 PLUS:
Table of Contents

Advertisement

Quick Links

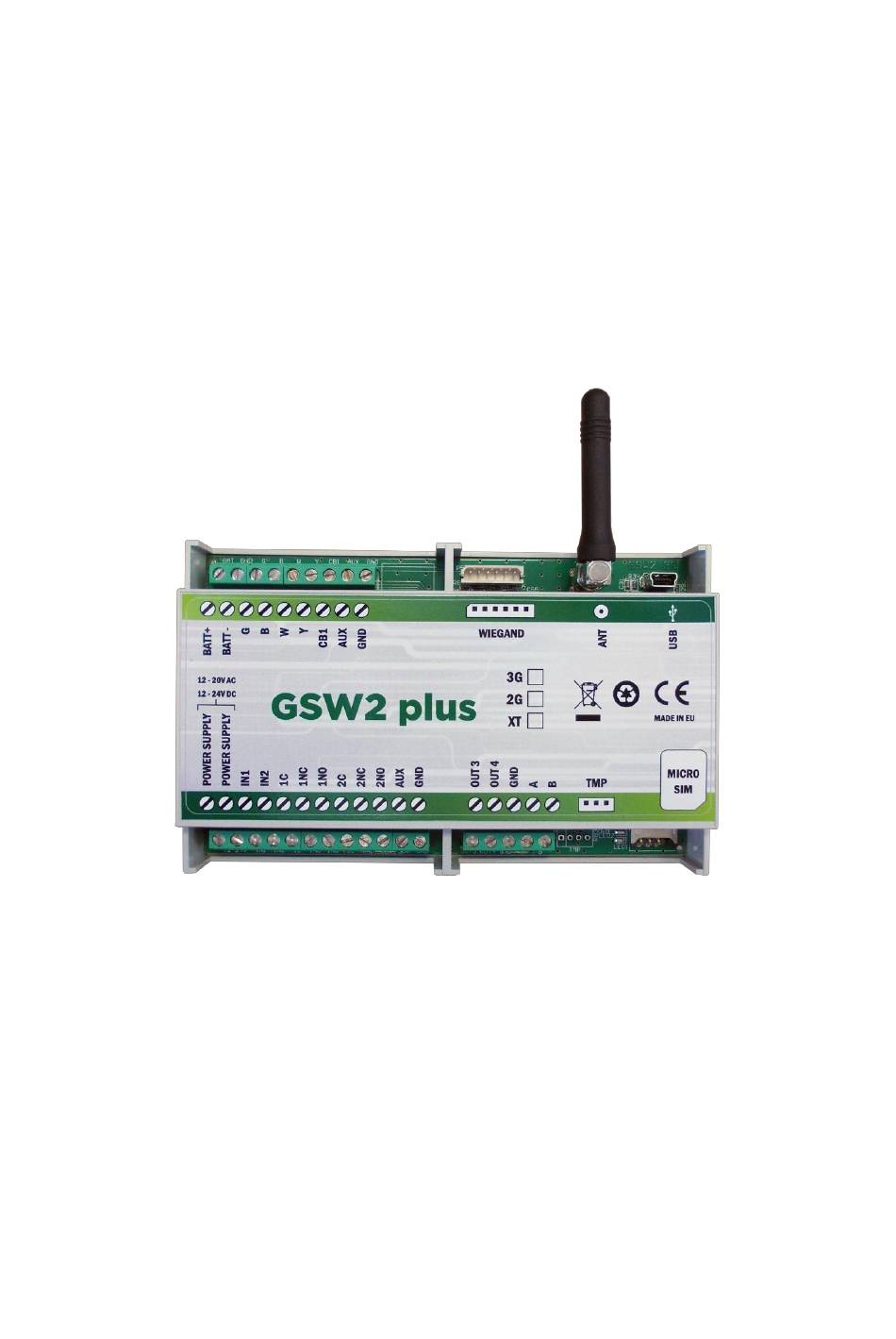

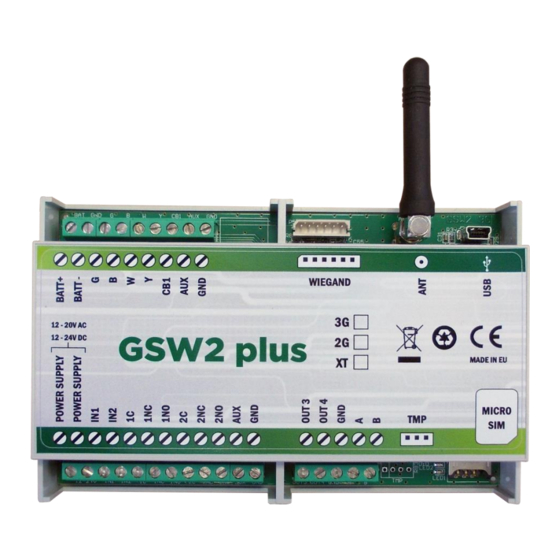

GSW2 PLUS
Advanced GSM/GPRS communication device
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSW2 PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for MARS COMMERCE GSW2 PLUS

Summary of Contents for MARS COMMERCE GSW2 PLUS

  • Page 1 GSW2 PLUS Advanced GSM/GPRS communication device USER MANUAL...

  • Page 2: Table Of Contents

    GSW2 PLUS USER MANUAL Contents FOR YOUR SAFETY ............................. 4 INTRODUCTION ..............................5 GSW2 PLUS ENTRY-CONTROLER FEATURES AND APPLICATIONS ............ 6 START UP ................................7 LED INDICATION ..............................8 CONNECTION DIAGRAM ..........................9 GSW2 PLUS UNIT MANAGEMENT ........................ 11 GSW2 PLUS FUNCTIONS WITH PROGRAMMING INSTRUCTIONS ............. 12 WEB SERVER - LOG IN ..............................
  • Page 3 Figure 3: WEB Server-Sign In page ....................12 Figure 4: WEB Server-Main page select ADD mode ................ 13 Figure 5: WEB Server-Main page adding GSW2 PLUS units ............14 Figure 6: WEB Server-Unit management window ................15 Figure 7: WEB Server-Wiegand interface support................16 Figure 8: WEB Server-Adding Wiegand devices with permanent use.
  • Page 4 GSW2 PLUS USER MANUAL Tables Table 1: WEB Server - SPIN entry parameters................. 18 Table 2: WEB Server-Timer setting, output mode options ............... 25 Table 3: Wiegand 26: Mode 0......................36 Table 4: Wiegand 26: Mode 1......................36 Table 5: Wiegand 26: Mode 2.

  • Page 5: For Your Safety

    GSW2 PLUS USER MANUAL FOR YOUR SAFETY SWITCH ON SAFELY Do not switch the unit on when use of wireless phone is prohibited or when it may cause interference or danger. INTERFERENCE All wireless phones and units may be susceptible to interference, which could affect performance.

  • Page 6: Introduction

    USER MANUAL INTRODUCTION GSW2 PLUS is a simple but powerful GSM switch and communication system designed to ensure low-cost, simple to install/use, reliable and single box solution for remote managed switching application and secure intercom solution. It is designed for unlimited range, pin code access, caller ID control and Wiegand access support.

  • Page 7: Gsw2 Plus Entry-Controler Features And Applications

    GSW2 PLUS USER MANUAL GSW2 PLUS ENTRY-CONTROLER FEATURES AND APPLICATIONS Features:  Built-in 4 (2G) or 5 (3G) band GSM module  Caller ID numbers control (up-to 1000 caller ID numbers)  Up to 100 temporary SPIN access codes  Up to 1000 PIN access codes ...

  • Page 8: Start Up

    IMPORTANT removed!!  Insert SIM card in GSW2 PLUS unit.  Connect power cable to GSW2 PLUS unit (YOU MUST POWER THE GSW2 PLUS UNIT WITH THE POWER SUPPLY IF INCLUDED. Do not power with any other power supply).  Power up the unit.

  • Page 9: Led Indication

    GSW2 PLUS USER MANUAL LED INDICATION Blue LED (LED1) Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak signal, 5 is excellent signal) Red LED (LED2) GSM module Activity Yellow LED (LED3) Short flashing indicates that the GSM module is ON, but it is not yet connected on the GSM network.

  • Page 10: Connection Diagram

    GSW2 PLUS USER MANUAL CONNECTION DIAGRAM Before connection the GSW2 PLUS please take a look at connection diagram. Figure 1: GSW2 PLUS: Connection diagram Page 9...

  • Page 11: Figure 2: Gsw2 Plus: Connection Table

    OUT 4 Wiegand output D1 Ground RS485 A RS485 B Temperature probe connector Figure 2: GSW2 PLUS: Connection table. DO NOT USE Power out (12V AUX) for electric lock driving! Use IMPORTANT separate power source for door electric lock! Page 10...

  • Page 12: Gsw2 Plus Unit Management

    GSW2 PLUS USER MANUAL GSW2 PLUS UNIT MANAGEMENT Unit supports different types of management (programming):  Unit can be programmed directly by USB connection, with the use of configuration software running on PC (EasySet).  Unit can be programmed remotely by using WEB server access.

  • Page 13: Gsw2 Plus Functions With Programming Instructions

    GSW2 PLUS FUNCTIONS WITH PROGRAMMING INSTRUCTIONS As mentioned in previous chapters GSW2 PLUS unit can be programmed in various ways, this document will focus on most common programming way: WEB programming. SIM card in the GSW2 PLUS unit MUST have DATA PLAN to be able to...

  • Page 14: Web Server - Adding Units To User Profile

    After login the user will be diverted to WEB server main window. This page is used to add/remove/search for GSW2 PLUS units from the user’s profile. Select “+” sign to select ADD GSW2 PLUS units to user’s profile. Figure 4: WEB Server-Main page select ADD mode...

  • Page 15: Figure 5: Web Server-Main Page Adding Gsw2 Plus Units

    The IMEI is located on the cellular chip and also should be on the card board box of the GSW2 PLUS.  Phone Number: The telephone number of the SIM card in the GSW2 PLUS unit - mandatory data.

  • Page 16: Web Server-Unit Management

    GSW2 PLUS USER MANUAL 8.3 WEB SERVER-UNIT MANAGEMENT After the GSW2 PLUS unit is added to user database, the user can change the configuration of the specific unit. All changes made by the user are listed in the Change Log window.

  • Page 17: Wiegand Access

    USER MANUAL 8.4 WIEGAND ACCESS GSW2 PLUS unit has onboard support for 1 Wiegand output based device. With the user of external replicator more Wiegand devices can be connected to the unit. Configuration of Wiegand interface is found in Digital interface tab in the Input section. Wiegand interface can be found on board with a dedicated Wiegand connector and cables.

  • Page 18: Figure 8: Web Server-Adding Wiegand Devices With Permanent Use

    GSW2 PLUS USER MANUAL Permanent use: devices are added in Pin access tables. They are placed in two tables. For each table user can define which output they will trigger. Figure 8: WEB Server-Adding Wiegand devices with permanent use.  PIN entry: For each PIN entry user need to select PIN code value and optional User name.

  • Page 19: Table 1: Web Server - Spin Entry Parameters

    GSW2 PLUS USER MANUAL  SPIN entry: For each SPIN entry user need to select appropriate values. SPIN options Desription SPIN value Temporary PIN code User name Name of the user Notify If SPIN code is used, administrator numbers CAN be notified...

  • Page 20: Caller Id Access

    Caller ID access is a very simple way to control relay output defined in Caller ID output setting. User will by calling in the GSW2 PLUS unit trigger defined output. Settings for this function are found in the Caller id # tab.

  • Page 21: Outputs Settings

    GSW2 PLUS USER MANUAL 8.6 OUTPUTS SETTINGS The behavior on the outputs is defined in the Output tab. Figure 11: WEB Server-Output setting Output 1- Settings for output 1:  Output (relay) mode: User can select between 3 options Disable-Output is disabled Latching-Output is in latching mode.
  • Page 22 GSW2 PLUS USER MANUAL Output 2 - Settings for output 2:  Output (relay) mode: User can select between 3 options Disable-Output is disabled Latching-Output is in latching mode. First Caller ID or PIN entry will activate the output, second Caller ID or PIN entry will deactivate the output.

  • Page 23: Intercom Configuration

    USER MANUAL 8.7 INTERCOM CONFIGURATION One of the options on GSW2 PLUS unit is secure implementation of intercom support. Intercom function is possible with the external audio module. Selecting (calling) apartment number is achieved pressing the call button beside appropriate name plate.
  • Page 24 GSW2 PLUS USER MANUAL Call mode settings:  Telephone number 1…Telephone number 5: Number that the unit will call when call button pressed.  Delay before dialing next no. on the list: Time delay in second before next user on the list gets dialed if the call to the previous user is not answered.

  • Page 25: Timer-Timed Controlled Output

    8.8 TIMER-TIMED CONTROLLED OUTPUT GSW2 PLUS unit features 2 timers that can be used to control the outputs on the unit. Timers can run in day or week mode depending on the selected setting. For each timer user can select which output it will control.

  • Page 26: Table 2: Web Server-Timer Setting, Output Mode Options

    GSW2 PLUS USER MANUAL Timer settings:  Timer: Parameter is used to enable and disable the timer function.  Mode: User can select between day or week mode. In day mode the timer will control on the day table which is the same for all week. In week mode the user can define different setting for each day in the week.

  • Page 27: Alarm Inputs

    USER MANUAL 8.9 ALARM INPUTS GSW2 PLUS unit can be used to send alarm SMS messages if alarm is raised on iput alarm lines. Alarm lines are multiplexed with the intercom button lines. To use alarm lines disable intercom function for the appropriate line (Intercom tab).
  • Page 28 GSW2 PLUS USER MANUAL  Input 1 time delay before sending SMS (seconds): Minimum required time of stable condition on alarm input to be acknowledge as valid alarm event, SMS notification is send out after valid alarm condition.  Input 2 mode: Different mode of possible input configuration: 1.

  • Page 29: Administration

    GSW2 PLUS USER MANUAL 8.10 ADMINISTRATION Administration tab allows user to enable advanced settings: notification of unauthorized access, periodic test messages, lock down of the unit… Figure 16: WEB Server-Notification numbers  Phone number, User name: Phone number and user name of the user that will be receiving notification messages.
  • Page 30 Temporary pin access tab or Pin access tab.  Administration allowed to remote program by SMS: By selection this option the user can “Lock down” the GSW2 PLUS unit, preventing any unauthorized user to change any configuration on the unit.

  • Page 31: Gsw2 Plus Wiegand Output Integration

    USER MANUAL 8.11 GSW2 PLUS WIEGAND OUTPUT INTEGRATION GSW2 PLUS unit can be integrated into a bigger access system using a Wiegand interface. In this case numbers calling the unit will be transferred, over Wiegand interface, to access system. Figure 18: WEB Server-Wiegand Output settings.

  • Page 32: Event Logging

    8.12 EVENT LOGGING GSW2 PLUS unit itself supports up to 20000 log events entry. These log events can be pull up to the server by clicking Read Log button in the “Event Log” tab. Events are listed in the table.

  • Page 33: Miscellaneous

    GSW2 PLUS USER MANUAL 8.13 MISCELLANEOUS This tab is split into 2 sections. Figure 20: WEB Server-Misc General settings can be found:  SMS text Language: define the language of the SMS information send out. User can select appropriate language in drop-down menu.

  • Page 34: Pin Access Notification Function

    GSW2 PLUS USER MANUAL 8.14 PIN ACCESS NOTIFICATION FUNCTION This function is used to notify administrator when a selected pin code is being used. Notification is done by SMS send to the selected administrator numbers. Global enabling of the notification function is done in 2. steps.

  • Page 35: Figure 22: Web Server-Selecting Administrator Numbers For Notification

    GSW2 PLUS USER MANUAL The last step is selecting a number that will be reciving the notification SMS. Selecting is done in the Administration tab. In the Notify PIN column put a tick in the check box for the appropriate phone number, multiple choices are possible.

  • Page 36: Wiegand Input Data Formats

    USER MANUAL WIEGAND INPUT DATA FORMATs GSW2 PLUS unit support standard Wiegand interface, it will work with Wiegand 26bit and Wiegand 30bit protocol. On each Wiegand protocol GSW2 PLUS unit support 4 different data formats, they all can be selected through all possible management systems.

  • Page 37: Wiegand 26 Bit, Different Data Formats

    GSW2 PLUS USER MANUAL 9.1 WIEGAND 26 BIT, DIFFERENT DATA FORMATS Possible data format: Mode 0: All 24bit of data are used a decimal representation, no option for facility code Parity Parity 24Bit card number Limits Card Number 0 - 16777215...

  • Page 38: Wiegand 30 Bit, Different Data Formats

    GSW2 PLUS USER MANUAL 9.2 WIEGAND 30 BIT, DIFFERENT DATA FORMATS Possible data format: Mode 0: All 30bit of data are used a decimal representation, no option for facility code Parity 28Bit card number Parity Limits 0 - 268435455 Card Number...

  • Page 39: Contacts

    GSW2 PLUS USER MANUAL 10 CONTACTS MARS COMMERCE d.o.o. MIRKA VADNOVA 19 4000 KRANJ SLOVENIA TEL: 00 386 4 280 74 00 E-MAIL: info@mars-commerce.com WEB SITE: www.mars-commerce.com TEHNICAL SUPPORT Tomaz HRIBAR Email: tomaz@mars-commerce.com SALES Uros STARE Email: sales@mars-commerce.com Page 38...
