Discrimination Breakdown Visuals

The following figures give a visual breakdown of Discrimination sounds related to the Target ID numbers.

-30 to 0 = Low Tone, ferrous Target

0 to +15 = High-Low Tone, Low Conductivity, non-ferrous Target

+15 to +30 = High Tone, High Conductivity, non-ferrous target

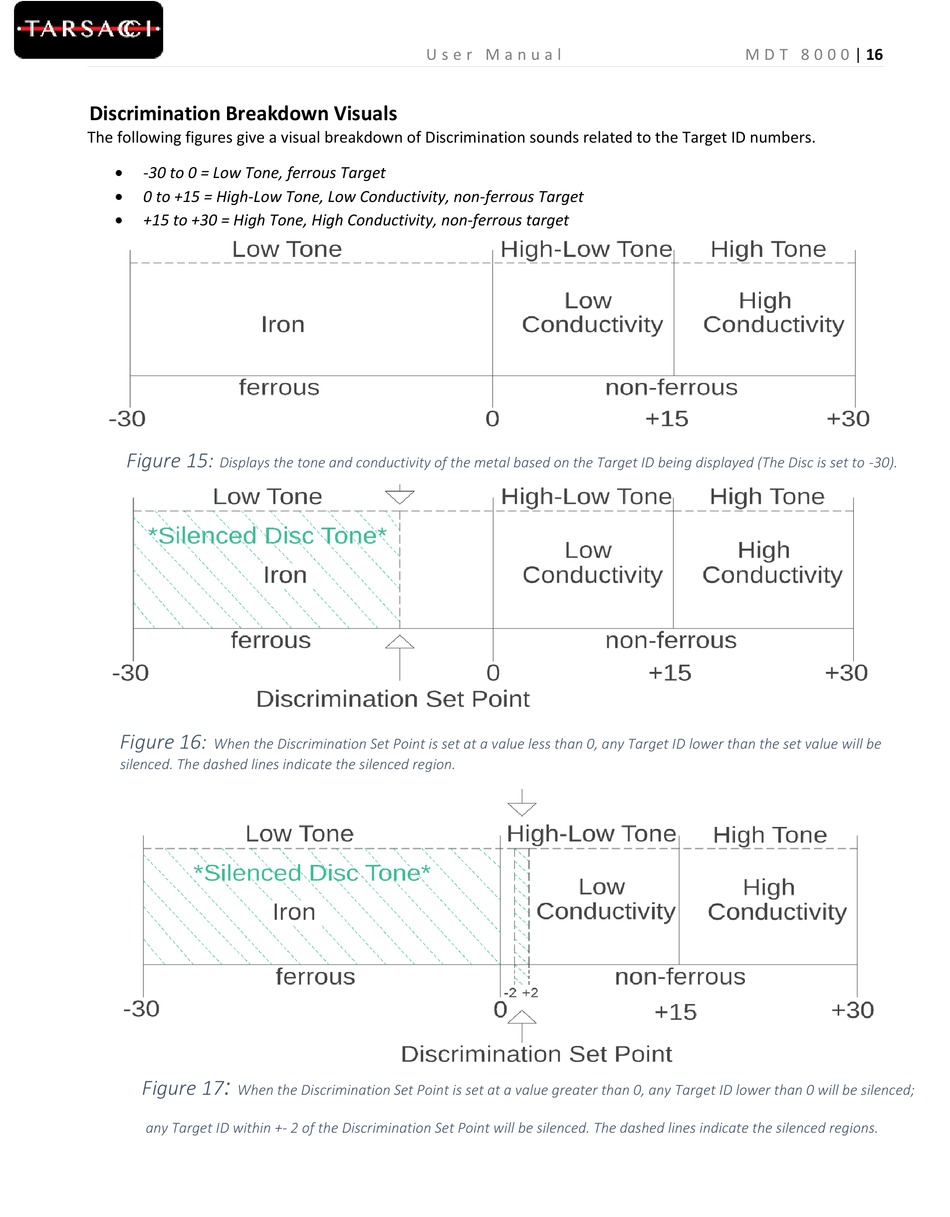

Figure 15:
Displays the tone and conductivity of the metal based on the Target ID being displayed (The Disc is set to -30).
Figure 16:
When the Discrimination Set Point is set at a value less than 0, any Target ID lower than the set value will be
silenced. The dashed lines indicate the silenced region.
:
Figure 17
When the Discrimination Set Point is set at a value greater than 0, any Target ID lower than 0 will be silenced;
any Target ID within +- 2 of the Discrimination Set Point will be silenced. The dashed lines indicate the silenced regions.
U s e r M a n u a l M D T 8 0 0 0 | 16
