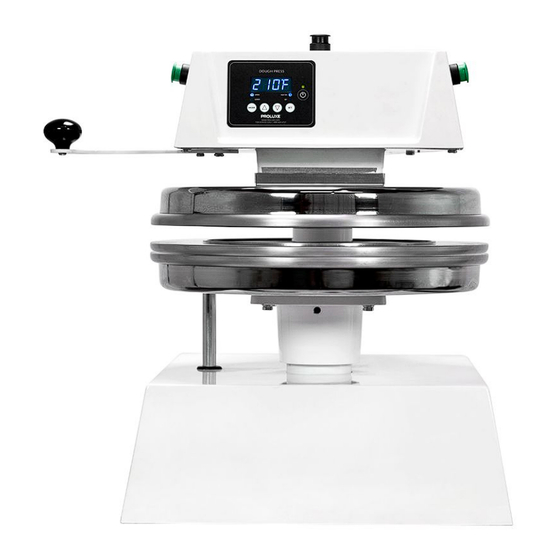

- Page 1 Operations Manual Apex X2 - Air-driven Automatic Dual Heat Dough Press Model #: DP2300 WWW.PROLUXE.COM Version: 52619...
- Page 2 Limited Machine Warranty and cooking equipment designed for Proluxe warrants this dough press machine, the most demanding commercial when operated under normal conditions, to kitchens. Proluxe equipment is a be free from manufacturing defects in ...
-
Page 3: Shipping Weight
● Voltage : 120/208/240 ● Amps : 12.5/11.05/5.94 ● Watts : 1500/2300/1500 Includes: 72” cord and NEMA approved plug. Air Compressor Requirements: U.S. 5 SCFM (Standard Cubic FT/MIN) EUR. FIG. A 8.5 SCMH (Standard Cubic Meters/HR) ... -
Page 4: Pressing Dough
For best results, your dough should be water based food release on the lower proofed before pressing, but it will also press platen. Proluxe offers its own food release directly out of your refrigerator. Flour is not spray NATURALLY CLEAR Model No. ... -
Page 5: Daily Care
R E C O M M E N D E D S E A S O N I N G Proluxe machines are relatively maintenance & C L E A N I N G P R O C E D U R E S ... - Page 6 Apex X2 Troubleshoot Guide - Model #: DP2300 Problem Cause Action Ref # Power Button on 1. Power cord is not plugged in. 1. Plug the power cord into wall Digital Controller receptacle and power button. 68 ...
- Page 7 When depressing the The tactile buttons under the overlay Carefully (no too much at one tactile button may be not close enough to activate. time on digital controller, Same goes if the buttons are already to avoid fracturing the traces on nothing happens. ...
- Page 8 After testing, tighten the locking bolts making sure not to move the larger adjustment bolts Power is on but hear The O'rings are warn allowing the air The cylinder needs orings, gasket ----- a leaking of air to pass through the cylinder and new cylinder grease.
- Page 9 8 ...
- Page 10 9 ...
- Page 11 10 ...
- Page 12 11 ...
- Page 13 Apex X2 Part List - Model #: DP2300 ITEM # DESCRIPTION DP2300SE 208 ~ AC QTY. HOUSING, INSTRUMENTAL 11010252201 HEX BOLT STAINLESS STEEL, 1/4-20 X 1/2 BH142012S NUT, LOCKING JAM (MACHINED) 11070 CLAMP, CABLE 1/2 CC12 AIR REGULATOR, DP2300 BLAZE 110130004 CLAMP, CABLE 3/8 CC38...
- Page 14 NUT, HEX 8-32 NH832 ITEM # DESCRIPTION DP2300SE 208 ~ AC QTY. NUT, HEX JAM 5/16-18 NHJ51618 FUSE BUSS 1 AMP MPPF701R FUSE HOLDER MPPF708 SCREW, PAN HEAD PHILLIPS 2-56 x 1/4 SP25614 THRUST WASHER 11059 ADJUSTMENT SCREW 110230042 THRUST PLATE DP15404 SCREW, SOCKET HEAD CAP, 1/4-20 x 1 SSH14201D...
- Page 15 FACIA CONTROL PLATE 11086027 ITEM # DESCRIPTION DP2300SE 208 ~ AC QTY. CONTROL, DIGITAL 110175116052 SPACER, NYLON 110969111 NUT, HEX 6-32 NH632 WASHER, INTERNAL TOOTH LOCK #6 WLIT6 SCREW, PAN HD 8-32 X 5/8 SP83258 SWITCH, MOM P/S OP SCREW ON GE P9XPLOSO GREEN MUSHROOM BUTTON SCREW ON P9ARB3V...
- Page 16 SCREW, SET 1/4-20 X 1/4 SST142014 ITEM # DESCRIPTION DP2300SE 208 ~ AC QTY. KITTED, UPPER PLATEN WITH WIRING ONLY 11017815474208K KITTED, UPPER PLATEN COMPLETE ASSEMBLY 11017815474208AK KITTED, LOWER PLATEN WITH WIRING ONLY 11017815432208K KITTED, LOWER PLATEN ASSEMBLY 11017815432208AK KITTED, SOLENOID VALVE ASSEMBLY 11017511604K ALIGNMENT SWITCH ASSY KIT 1101169341K...
