HP-WG Post-Ceiling T-Bar Installation Instructions
Overview
NOTES
All power connections should be installed according to
•
local/national codes by a Certified Electrician.
This installation requires proper support as each luminaire
•
is being installed.
DO NOT attempt to join luminaires together on the floor.
•
Damage may result when lifted.
Simple
HELPFUL
0-10V
Plug-Together
VIDEO
Dimming
Wiring

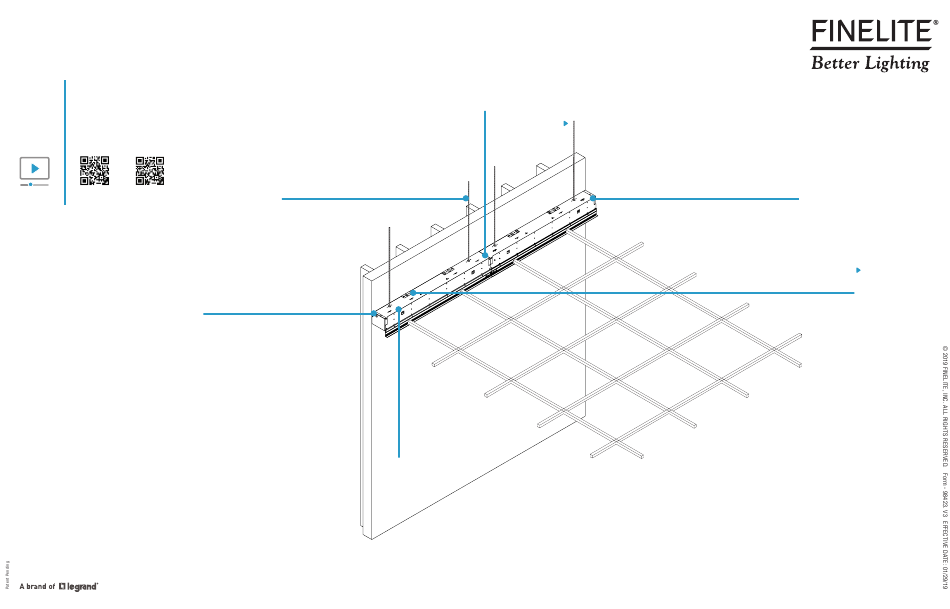

This is a hypothetical build to show the capabilities of this luminaire family and mount type. Your build may vary.
Step 4
Mounting Starter to Structure
Pages 6-7
Stud
Step 1
Mounting Locations & Methods
Page 2
Wall
Step 5
Page 8
Step 2
Identification & Preparation
Page 3
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
Step 6
Closing Luminaires
Pages 9-10
Feed Locations & Options
T-Bar
Step 3
Pages 4-5
1 of 10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Finelite HP-WG
Summary of Contents for Finelite HP-WG
- Page 1 This is a hypothetical build to show the capabilities of this luminaire family and mount type. Your build may vary. Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com...
-
Page 2: Step
HP-WG Post-Ceiling T-Bar Installation Instructions Step 1 - Mounting Locations & Methods A. Create Rough In Side View B. Mounting Locations Top View Mounting Location Top Feed (standard) 1/2" 1/2" Max. 3/8" Wall 2" Wall Endcap Endcap 1/2" Luminaire Length... -
Page 3: Identification & Preparation
ID: 1 ABC Corporation - A12345 HP-WG - 6W - 4D - X' STARTER ID Label HP-WG - 6W - 4D - 32' - S - 830 - 120V - SC - TR Luminaire Luminaire Type Full Catalog Section Type... - Page 4 HP-WG Post-Ceiling T-Bar Installation Instructions Step 3 - Feed Locations & Options 1/4"-20 Threaded Rod (by others) WIRING LEGEND Black Line Voltage White Neutral Line Voltage Green Ground Grey Dimming 0-10V DC Purple Dimming 0-10V DC Top Feed (standard) Wall Feed (optional) Endcap Feed (optional) #8-18 x 1/4"...
- Page 5 HP-WG Post-Ceiling T-Bar Installation Instructions Step 3 - Feed Locations & Options Top Feed Top View Top Feed (standard) Wall Luminaire Length C (in) 2" 6" Top Feed Location (standard) Use chart above to find measurement of C for feed location.
- Page 6 HP-WG Post-Ceiling T-Bar Installation Instructions Step 4 - Mounting Starter to Structure A. Open Kickplate Bottom-Up View B. Remove Carrier Side View Safety Cable Housing Housing Bracket Bracket Driver Starter Carrier Wall #8-18 x 1/4" Screw (provided) Kickplate Kickplate Make electrical connections according to feed location and options.
- Page 7 HP-WG Post-Ceiling T-Bar Installation Instructions Step 4 - Mounting Starter to Structure C. Mount Luminaire Standard Option 1 Option 2 Bottom-Up View Side View Side View "L" Bracket (by others) Structural Blocking (by others) Appropriate Fastening Hardware (by others) Appropriate Fastening Hardware (by others) 1/4"-20 Threaded Rod...
-
Page 8: Joining Luminaires
HP-WG Post-Ceiling T-Bar Installation Instructions Step 5 - Joining Luminaires A. Install Joiner/Ender Bottom-Up View B. Secure Joiner Brackets Side View C. Plug-Together Wiring Bottom-Up View #8-18 x 1/4" Screw (provided) T-Bar DO NOT attempt to join Aligner Plate luminaires together on the floor. - Page 9 HP-WG Post-Ceiling T-Bar Installation Instructions Step 6 - Closing Luminaires A. Replace Carrier Side View B. Secure Carrier & Snap Kickplate Side View Housing Bracket Carrier Housing Bracket #8-18 x 1/4" Screw (provided) Carrier Kickplate Secure carrier with #8-18 x 1/4" screw.
- Page 10 HP-WG Post-Ceiling T-Bar Installation Instructions Step 6 - Closing Luminaires C. Secure to Structure Side View D. Final Step - Install Cover Sleeve Side View T-Bar Bracket (provided) Bend Here #8-18 x 1/4" Screw T-Bar Bracket (provided) (provided) T-Bar Bracket (provided)
