Replacing the battery

WARNING:
Make sure to turn off your Fieldbook before removing the battery.

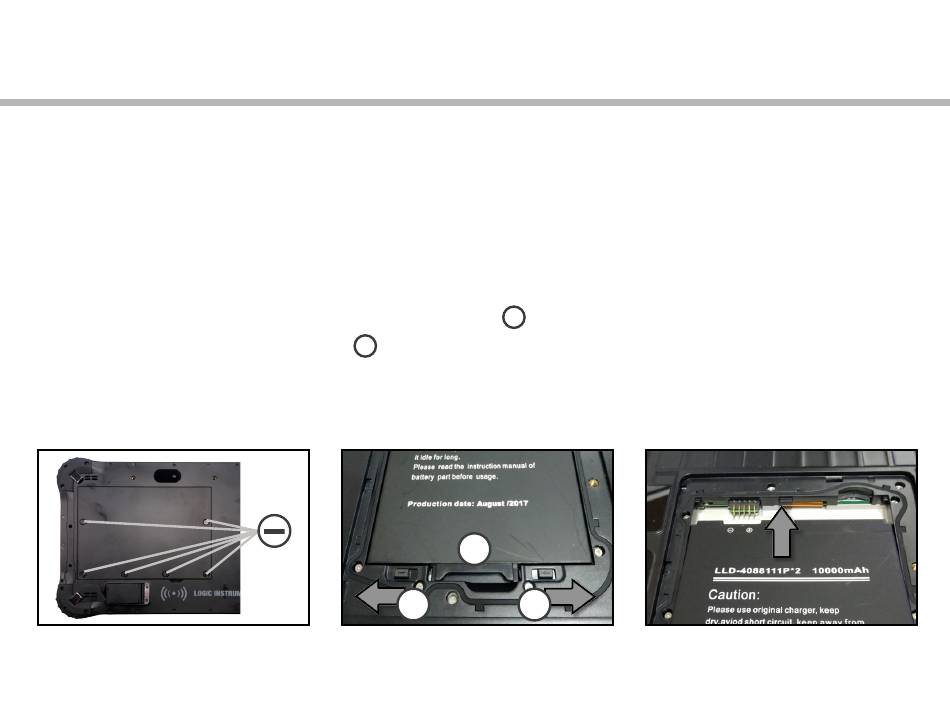

Removing the battery
1. Unscrew the six battery cover screws on the back of the tablet.
2. Lift up the cover using the opening above the RFID reading area.
3. Remove the cover.
4. Slide open the two battery latches (Picture 8.2 )
1
5. Pull out the battery (Picture 8.2 )
2
Image 8.1 Image 8.2 Image 8.3
2
1 1
8
